Pipe Processing Equipment

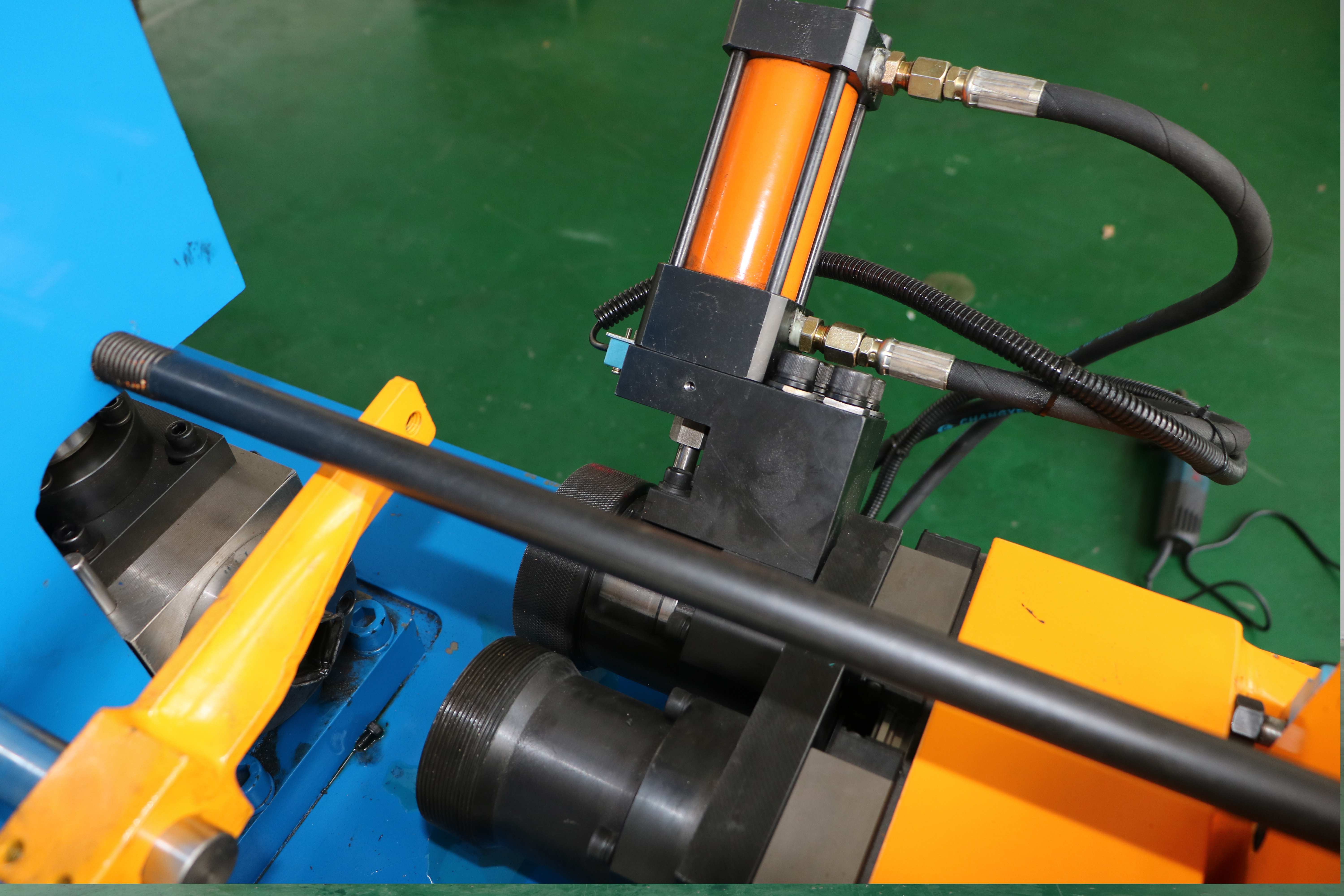

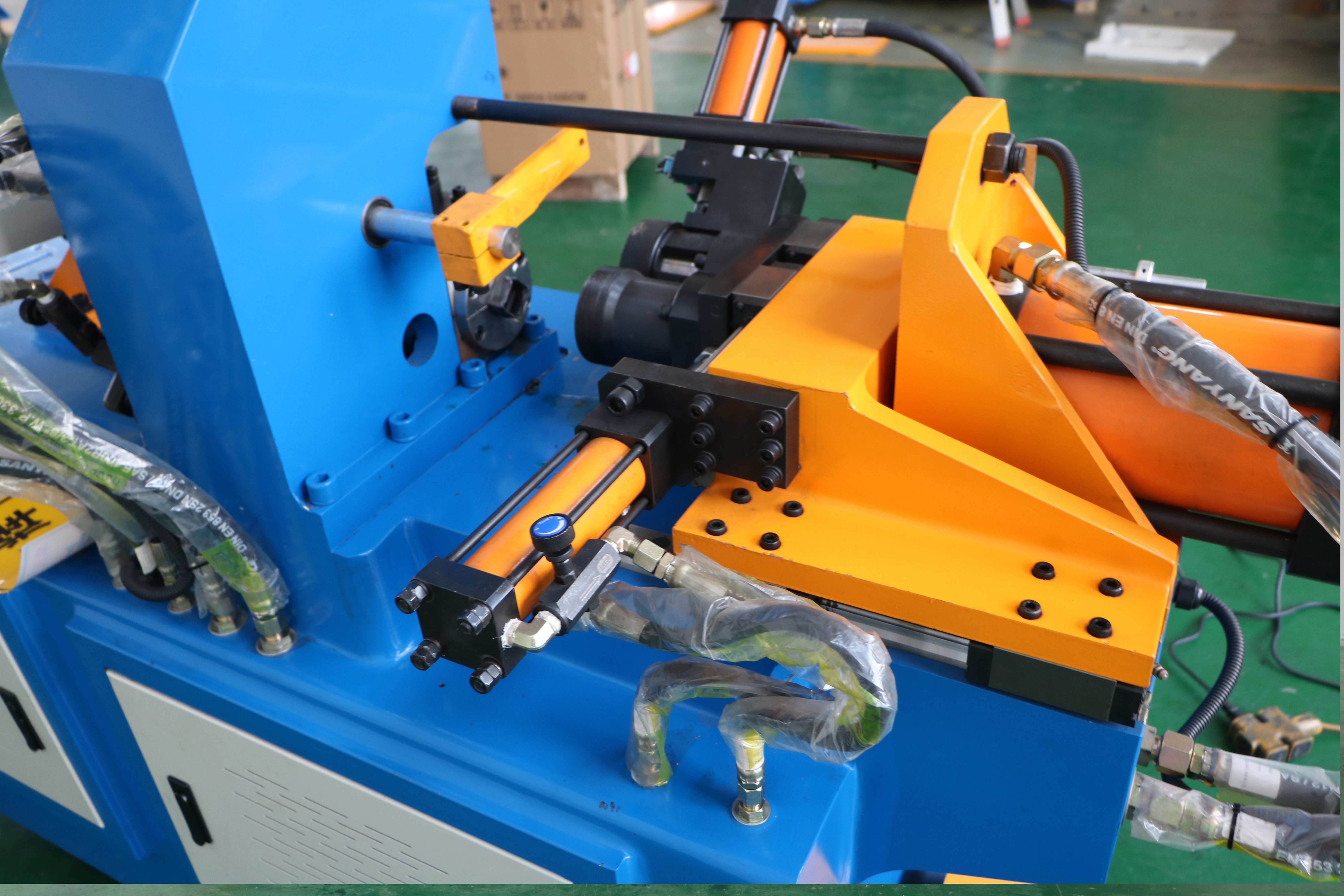

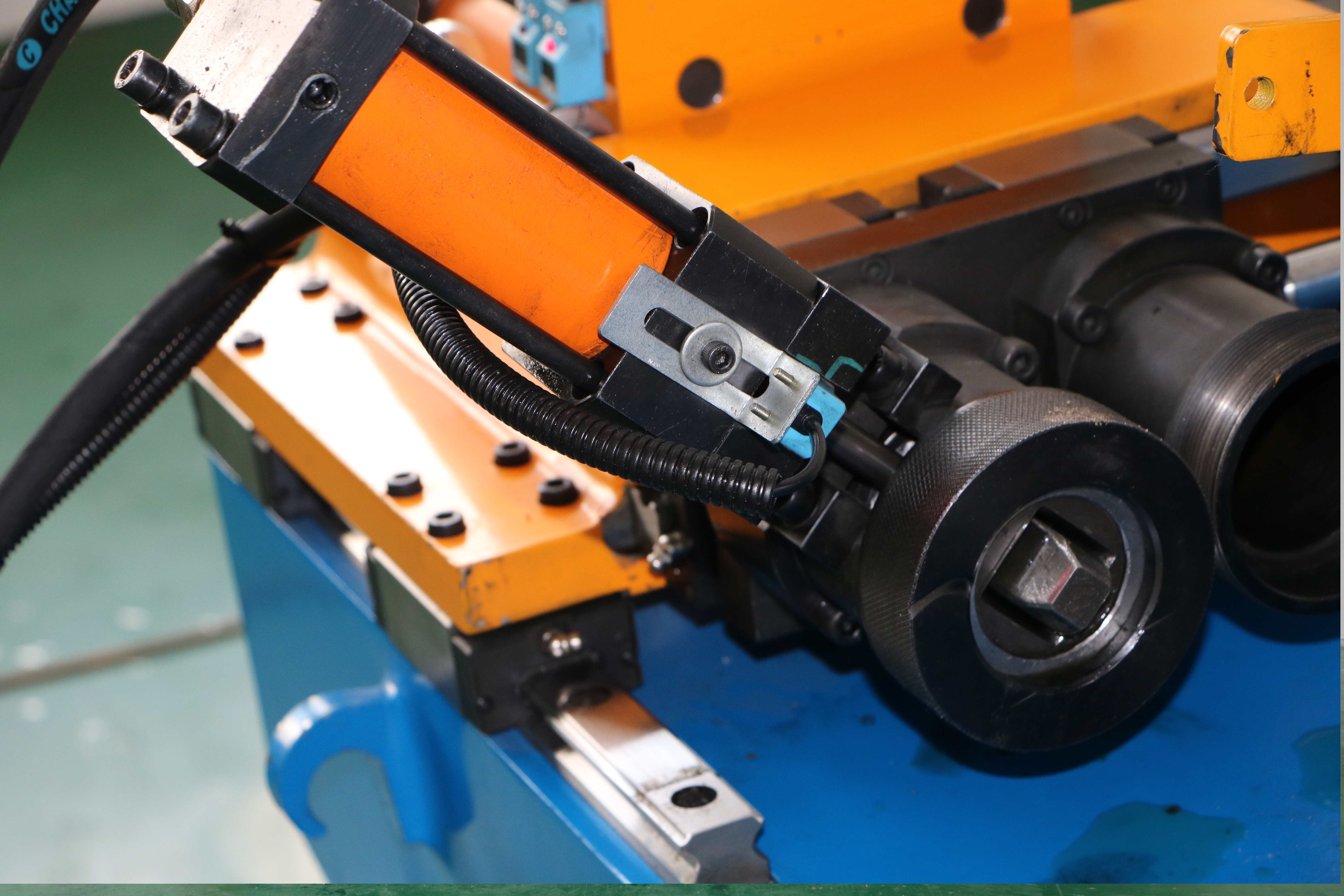

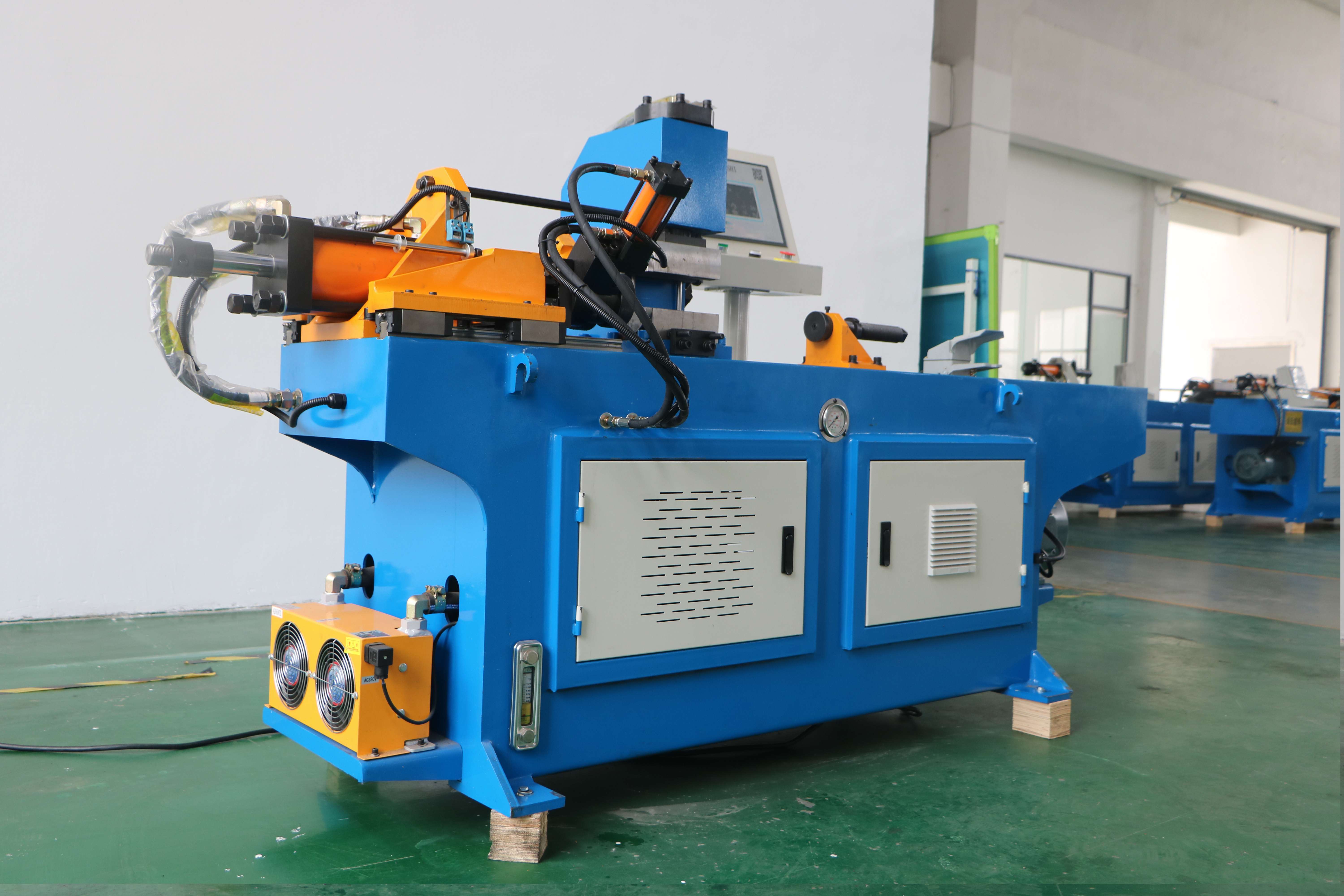

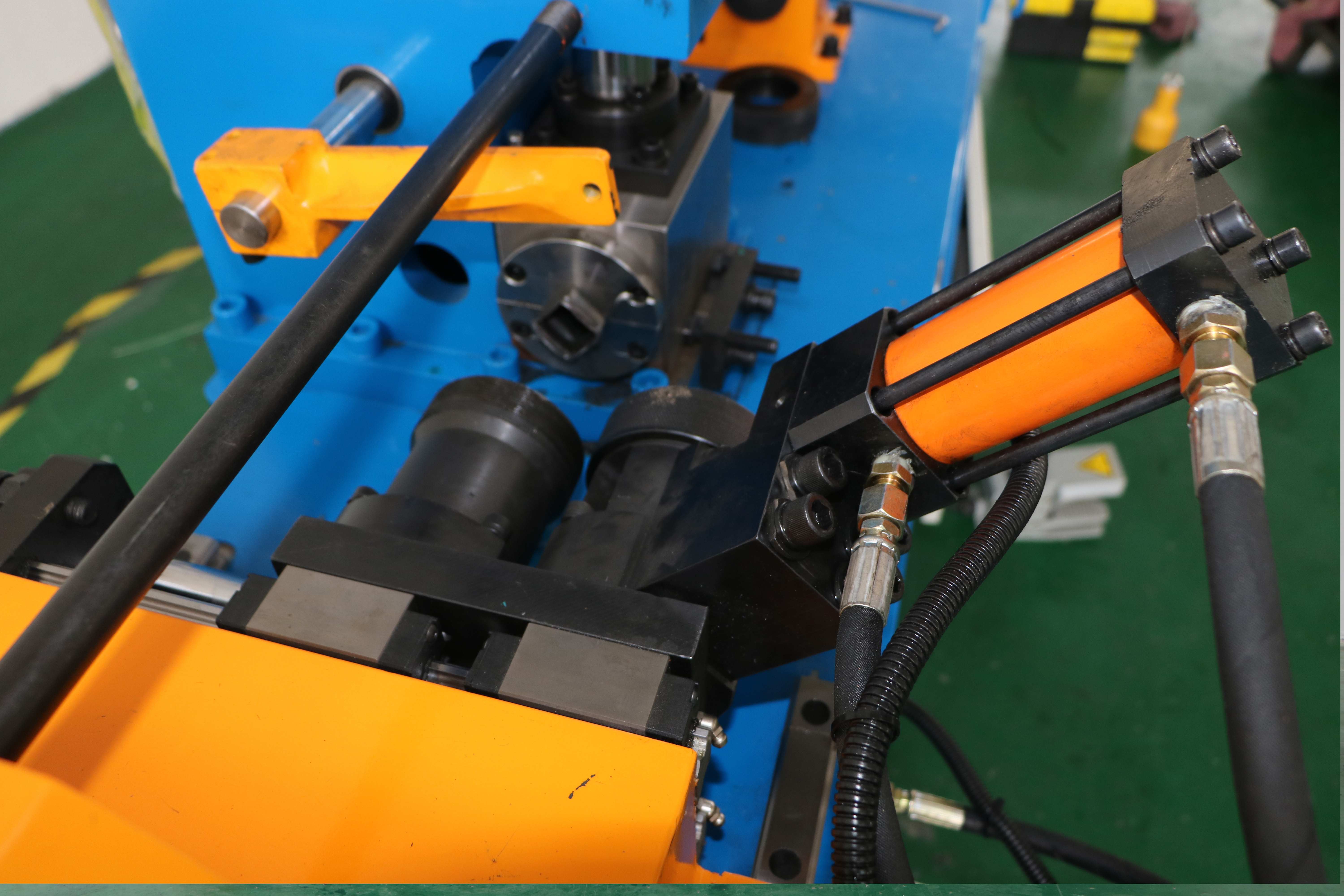

TM-60
Pipe Shrinking Machine
Hydraulic Pipe Shrinking Machine
Hydraulic pipe shrinking machine for reducing tube diameter ends with 12.5T cylinder force and PLC control.
60mm Capacity
12.5T Force
PLC Control
Hydraulic
Key Features
- Hydraulic-driven pipe shrinking/reducing operation
- PLC control with HMI touch screen interface
- High-precision forming dies for consistent results
- Adjustable processing length up to 140mm
- 12.5-ton main cylinder for powerful forming force
- Compact footprint for workshop efficiency
Technical Specifications
| Specification | TM-60 |
|---|---|
| Max Tube O.D. | 60mm |
| Max Processing Length | 140mm |
| Main Cylinder Output | 12.5T |
| Pump Motor Power | 5.5kW |
| Max System Pressure | 12MPa |
| Overall Weight | Approx. 1400kg |
| Machine Dimensions (LxWxH) | 2200x900x2200mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- Hydraulic-driven pipe shrinking/reducing operation
- PLC control with HMI touch screen interface
- High-precision forming dies for consistent results
- Adjustable processing length up to 140mm
- 12.5-ton main cylinder for powerful forming force
- Compact footprint for workshop efficiency
- Quick die change system for different pipe sizes
- Safety guards and emergency stop features
Applications
- Automotive exhaust systems
- Furniture manufacturing
- HVAC ductwork
- Hydraulic and pneumatic tubes
- Bicycle frame production
- General pipe fitting preparation
Need Custom Configuration?
We offer OEM/ODM services to customize machines according to your specific requirements.
