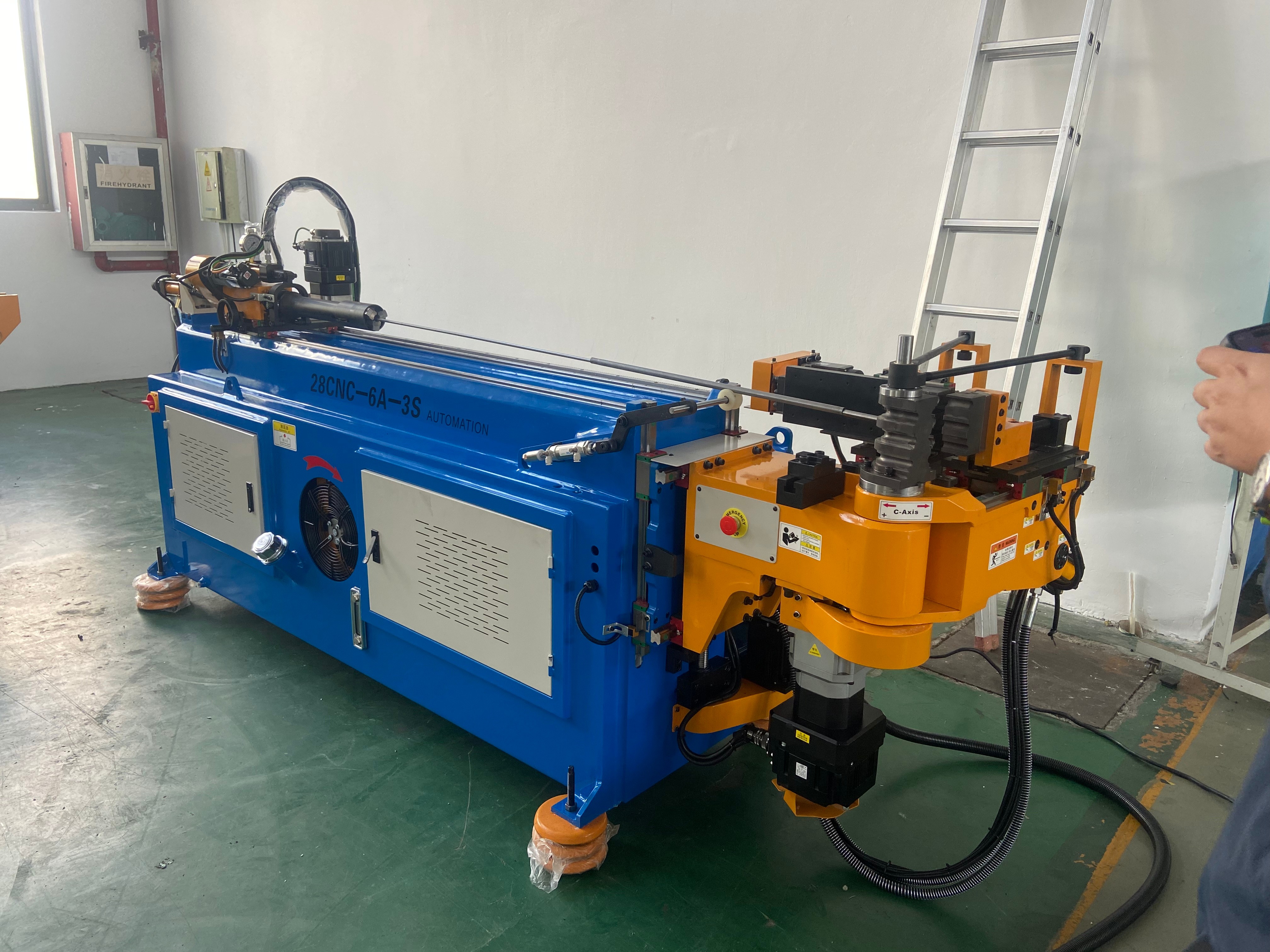

CNC Pipe Bending Machine
DW-28CNC-6A-3S
6-Axis Full Auto CNC Pipe Bending Machine
The DW-28CNC-6A-3S is our premium 6-axis fully automatic CNC pipe bending machine featuring servo motor control and 3 stack bending dies for maximum flexibility. This advanced model offers superior precision and efficiency for complex multi-radius bending operations, making it ideal for automotive, aerospace, and furniture manufacturing industries.
6-Axis
CNC Control
3 Stack
Bending Dies
Φ28mm
Max Capacity
±0.1
Precision
Key Features
- 6-axis servo motor control for maximum flexibility

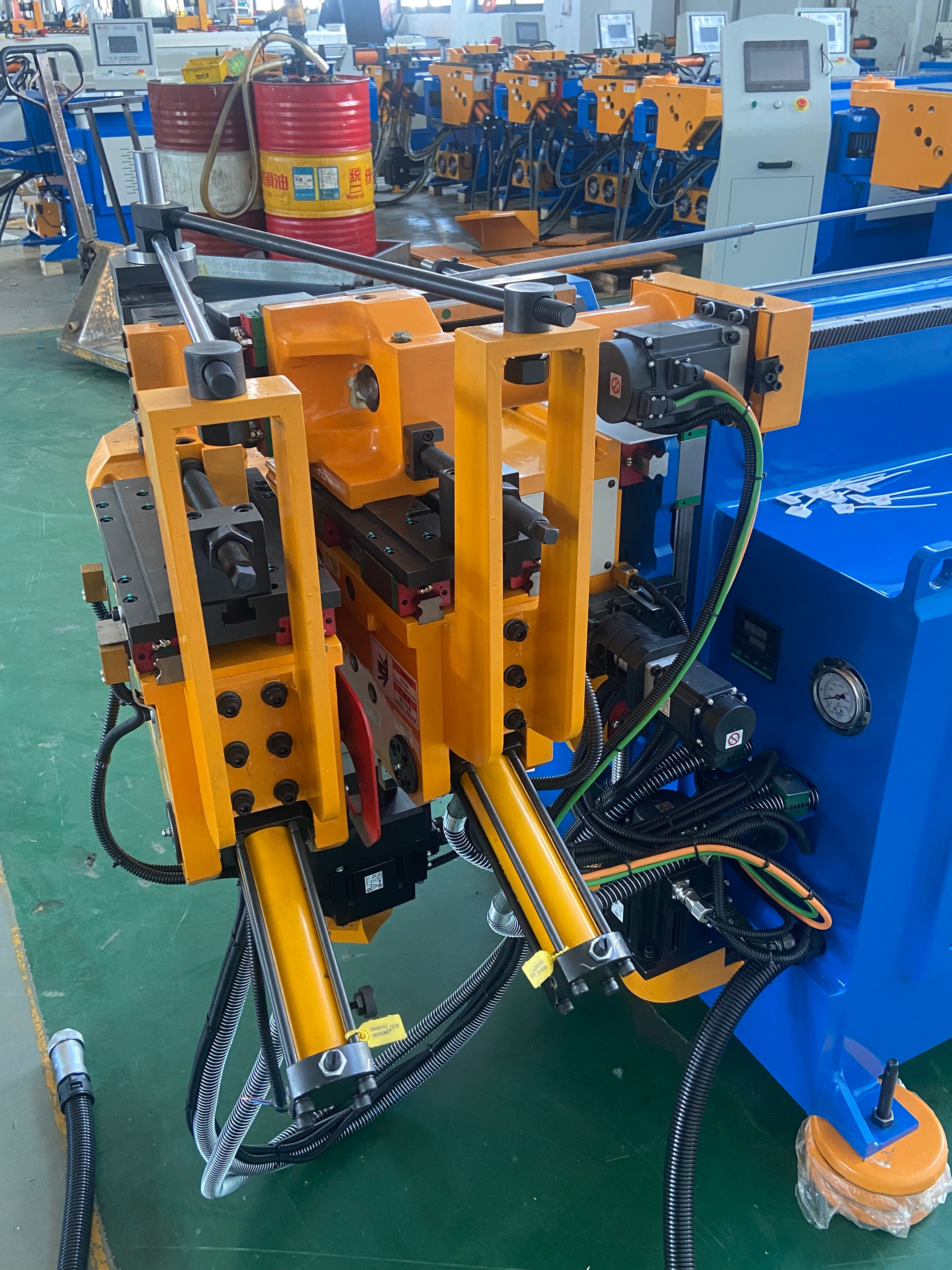

- 3 stack bending dies for multi-radius operations

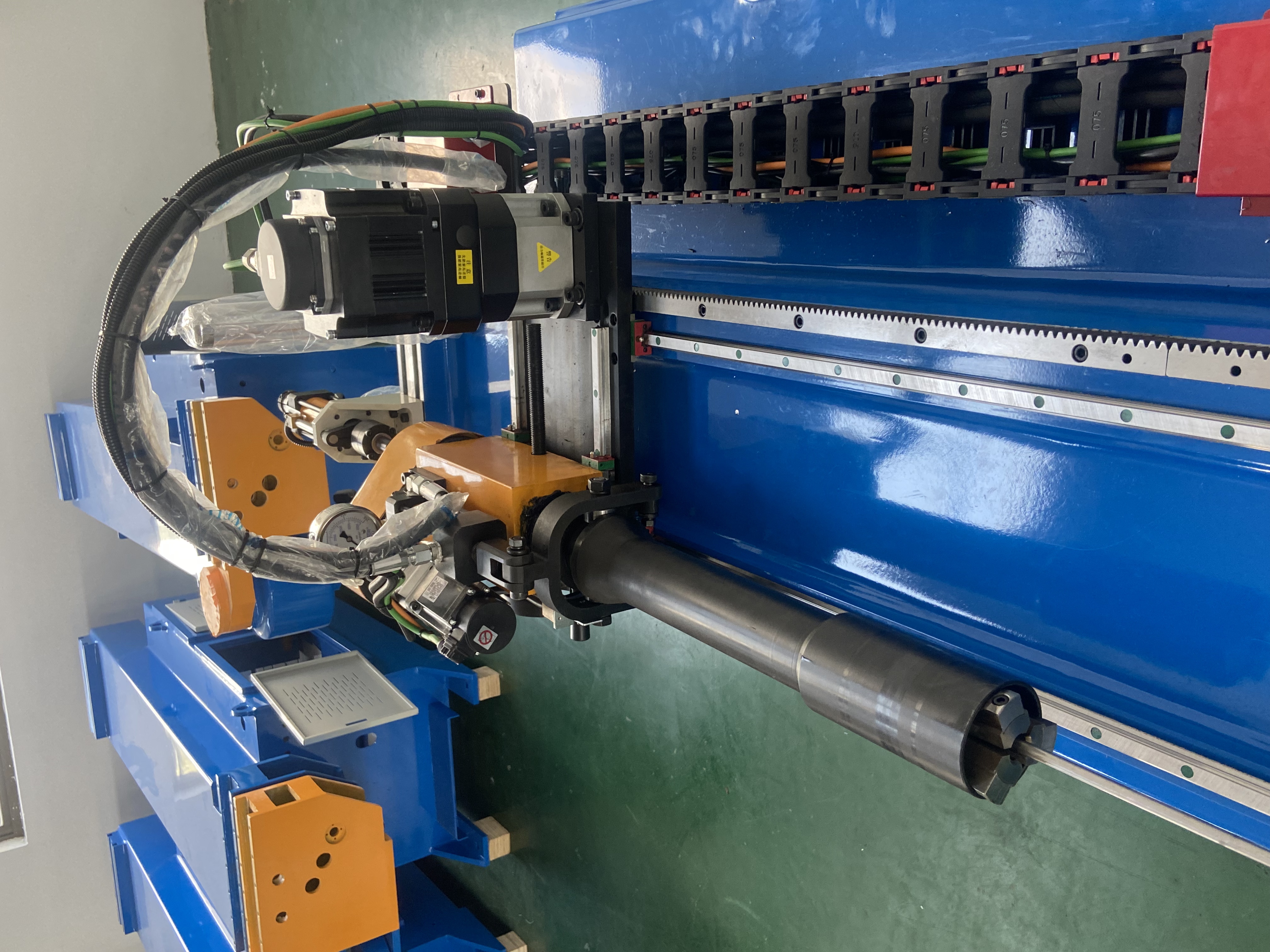

- High-speed automatic tube feeding system
- Touch screen CNC control panel
- Automatic mandrel lubrication system
Technical Specifications
| Specification | DW-28CNC-6A-3S |
|---|---|
| Max. Tube O.D. Bending Capacity | Φ28 mm |
| Max. Tube Wall Thickness | 2.0 mm |
| CLR Range (Customizable) | 100 mm |
| Max. Bending Angle | 190° |
| Max. Mandrel Working Distance | 2000 mm |
| Tube Feeding Speed | Max 1000 mm/s |
| Tube Rotation Speed | Max 200°/s |
| Tube Bending Speed | Max 85°/s |
| Tube Feeding Precision | ±0.1 mm |
| Tube Rotation Precision | ±0.1° |
| Tube Bending Precision | ±0.1° |
| Machine Dimensions (LxWxH) | 3000 x 780 x 1100 mm |
| Overall Weight | Approx. 1000 kg |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 6-axis servo motor control for maximum flexibility
- 3 stack bending dies for multi-radius operations
- High-speed automatic tube feeding system
- Touch screen CNC control panel
- Automatic mandrel lubrication system
- Real-time angle detection and correction
- Program storage for up to 1000 programs
- CE certified safety standards
Applications
- Automotive exhaust systems
- Aerospace tubing components
- HVAC piping systems
- Furniture frame manufacturing
- Medical equipment tubing
- Industrial hydraulic lines
Need Custom Configuration?
We offer OEM/ODM services to customize machines according to your specific requirements.
