Pipe Processing Equipment
DW-38CNC-3A-1S

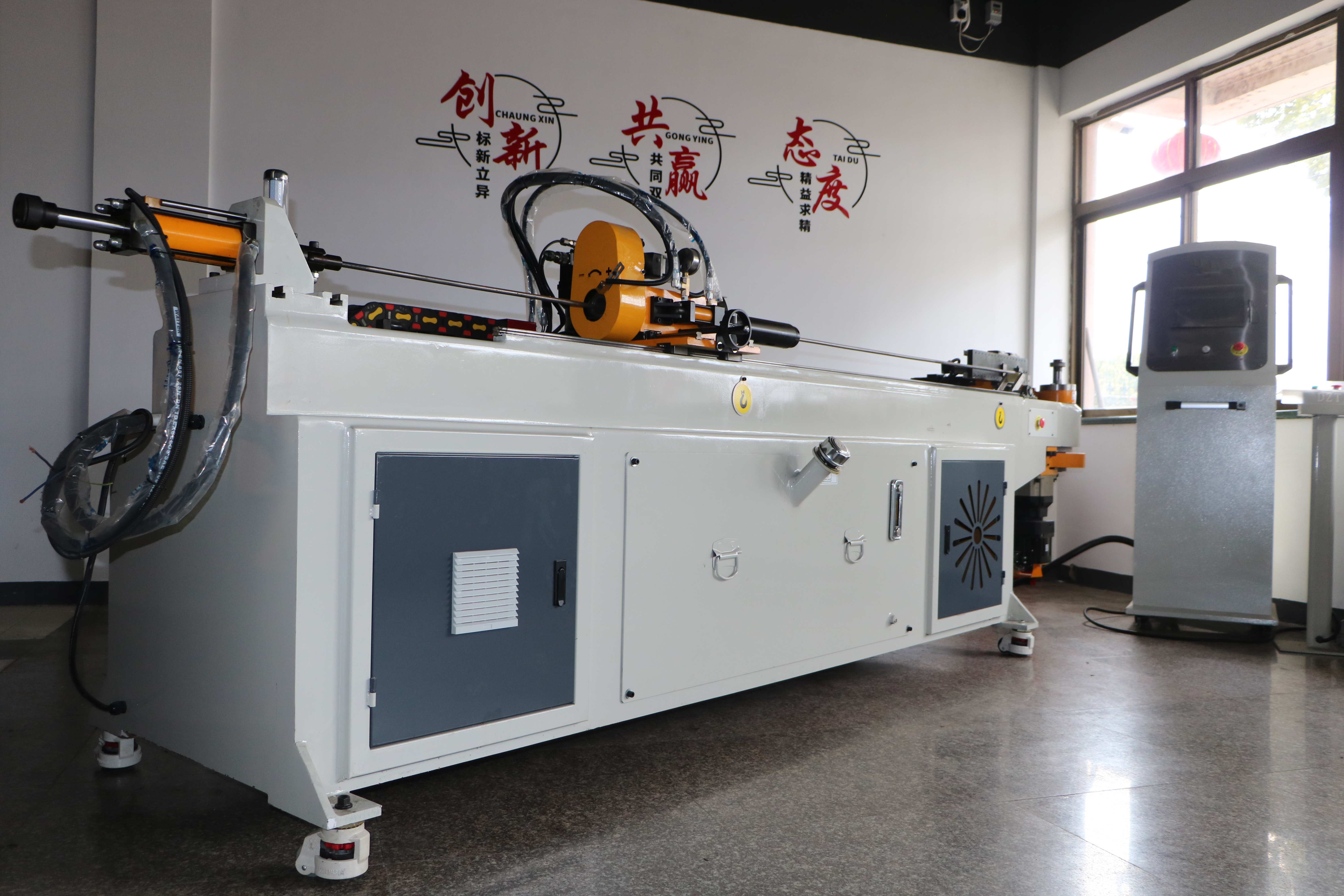

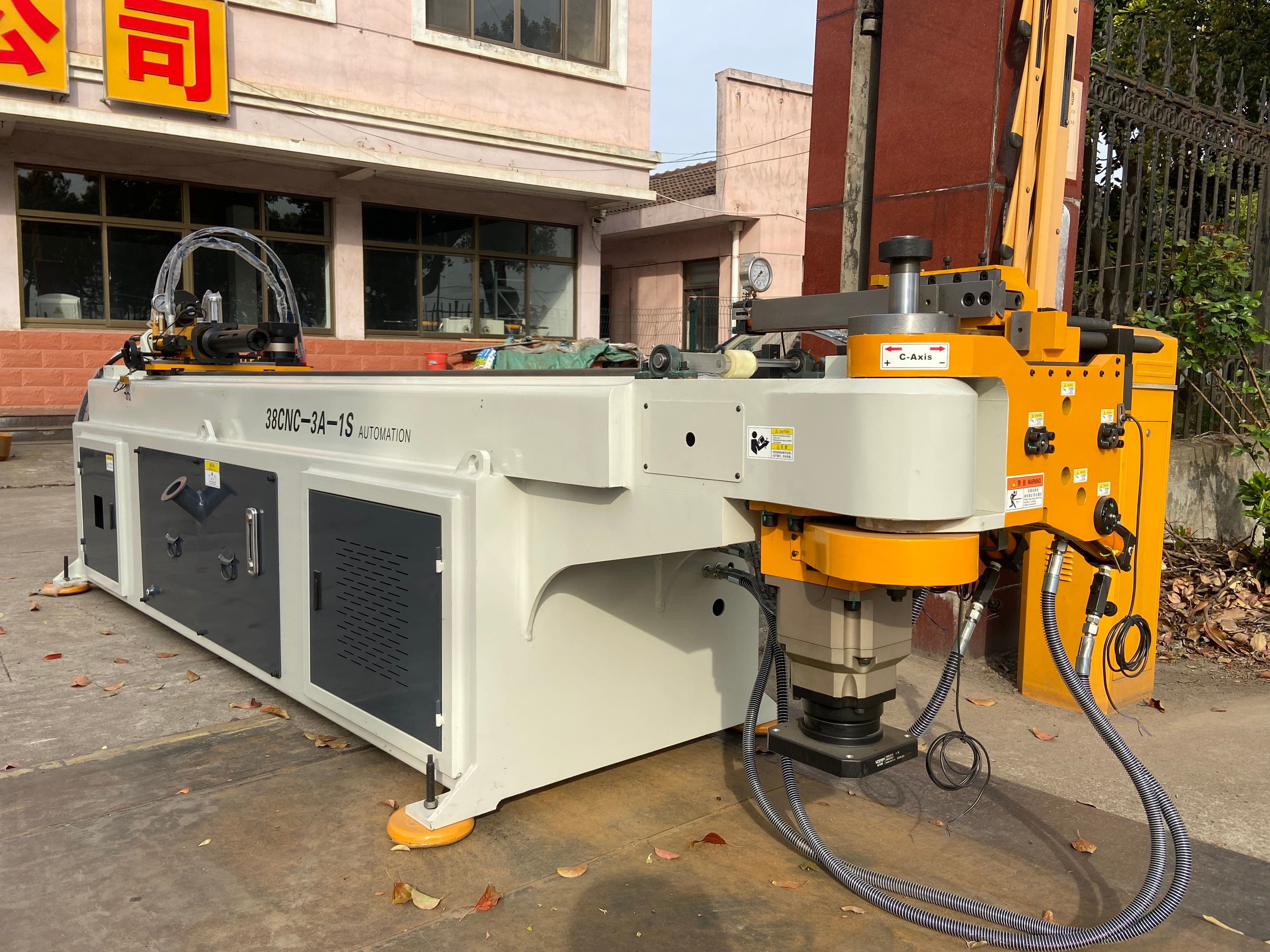

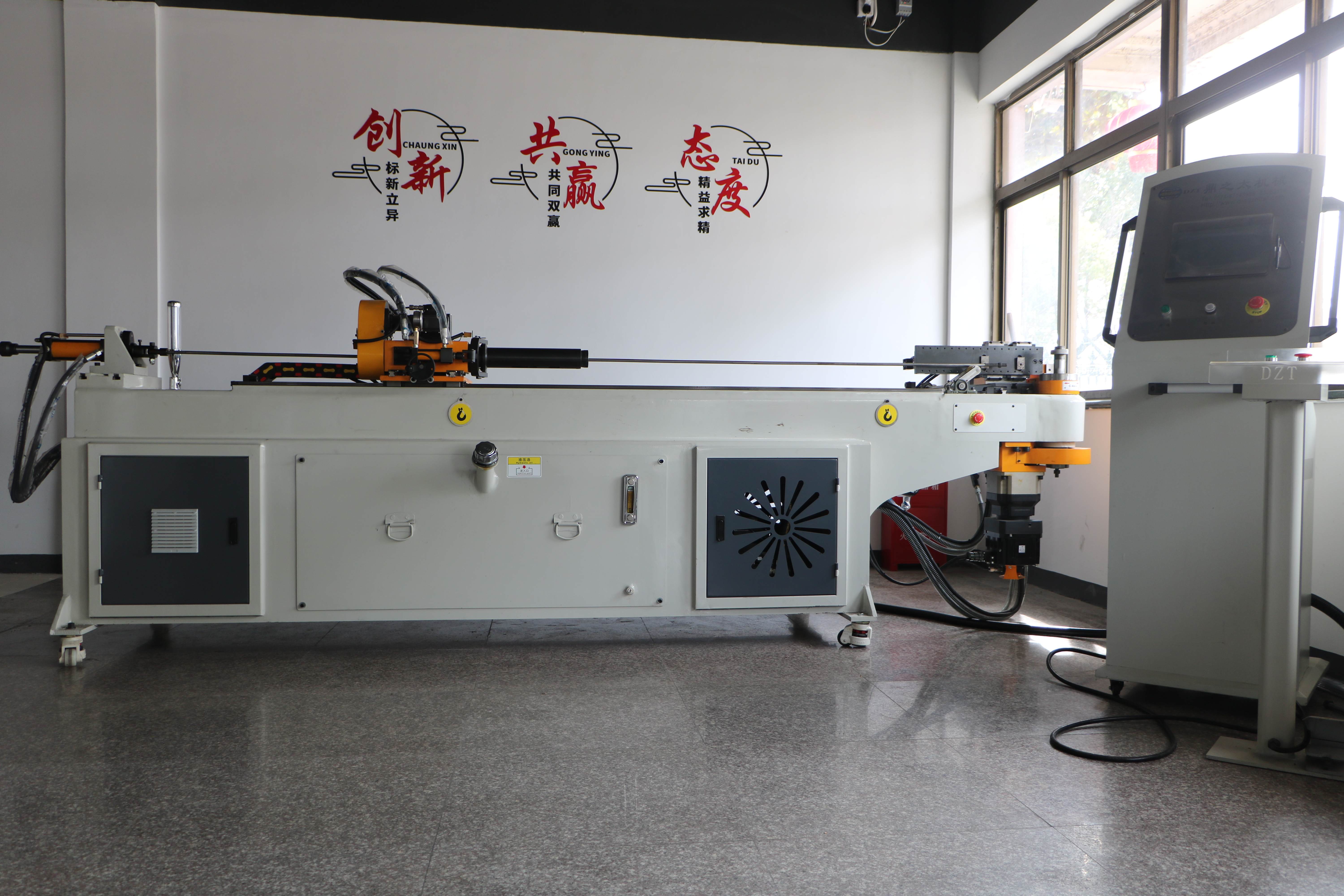

3-Axis CNC Pipe Bending Machine
3-Axis Full Servo CNC Pipe Bender (38mm)
Compact 3-axis full servo CNC pipe bender with extended 2450mm mandrel working distance for medium-sized 38mm pipe applications.
3-Axis CNC
Servo Motor
±0.1 Precision
1 Stack Die
Key Features

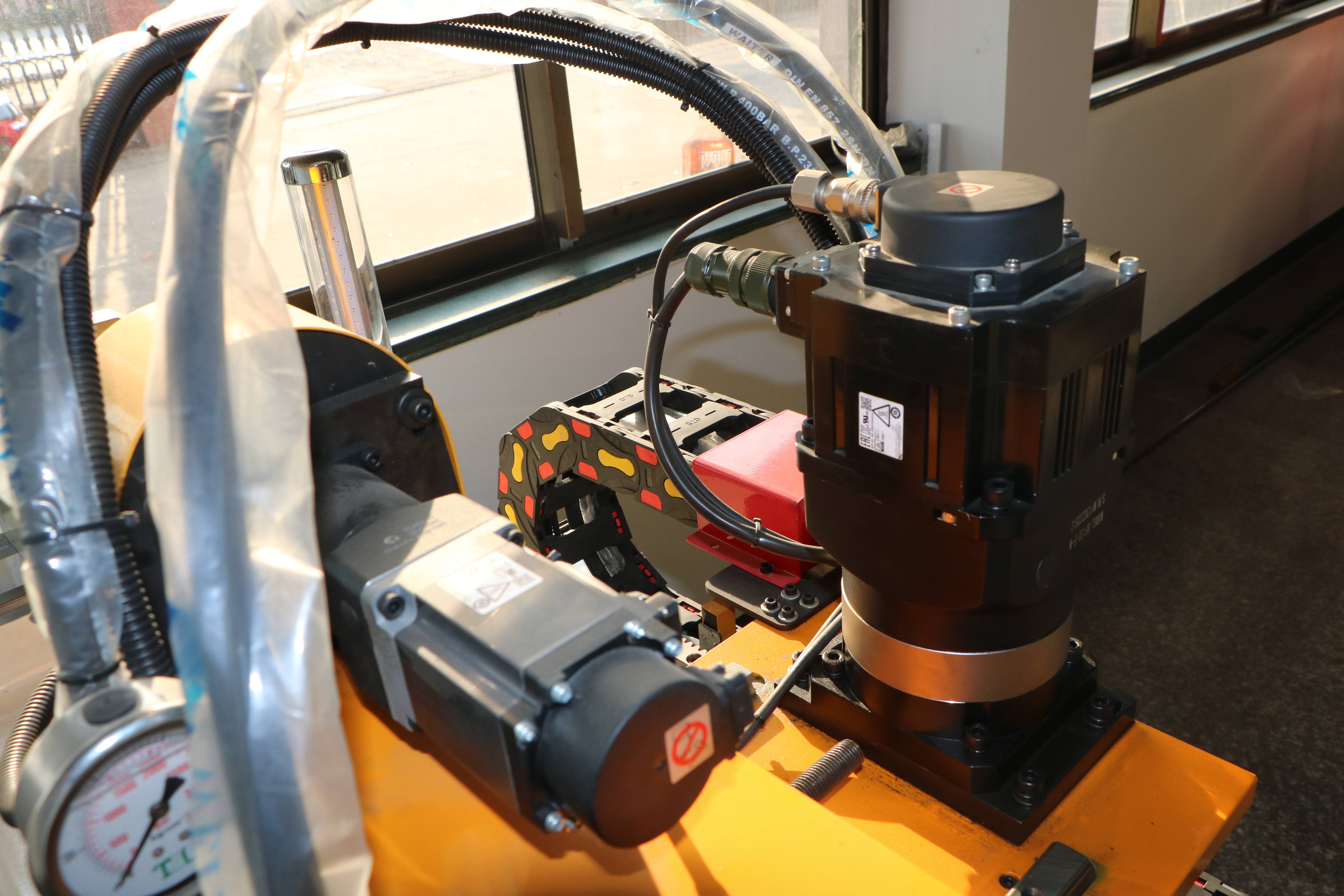

- 3-axis full servo motor driven CNC system
- High precision ±0.1 repeatability
- Extended 2450mm mandrel working distance
- Compact white body design with easy maintenance
- Industrial-grade components for long service life
- Touch screen HMI with intuitive operation
Technical Specifications
| Specification | DW-38CNC-3A-1S |
|---|---|
| Max. Tube O.D. Bending Capacity | 38 mm |
| Max. Tube Wall Thickness | 2.0 mm |
| CLR Range (Customizable) | 200 mm |
| Max. Bending Angle | 190° |
| Max. Mandrel Working Distance | 2450 mm |
| Tube Feeding Speed | Max 1000 mm/s |
| Tube Rotation Speed | Max 200°/s |
| Tube Bending Speed | Max 85°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Machine Dimensions (L×W×H) | 4200×900×1200 mm |
| Machine Weight | Approx. 2200 kg |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 3-axis full servo motor driven CNC system
- High precision ±0.1 repeatability
- Extended 2450mm mandrel working distance
- Compact white body design with easy maintenance
- Industrial-grade components for long service life
- Touch screen HMI with intuitive operation
- Multi-layer bending program storage
- Automatic angle compensation system
Applications
- Automotive exhaust systems
- HVAC piping
- Furniture manufacturing
- Fitness equipment
- Medical equipment
- Bicycle frames
- General industrial piping
- Agricultural machinery
Need Custom Configuration?
We offer OEM/ODM services to customize machines according to your specific requirements.
