Pipe Processing Equipment

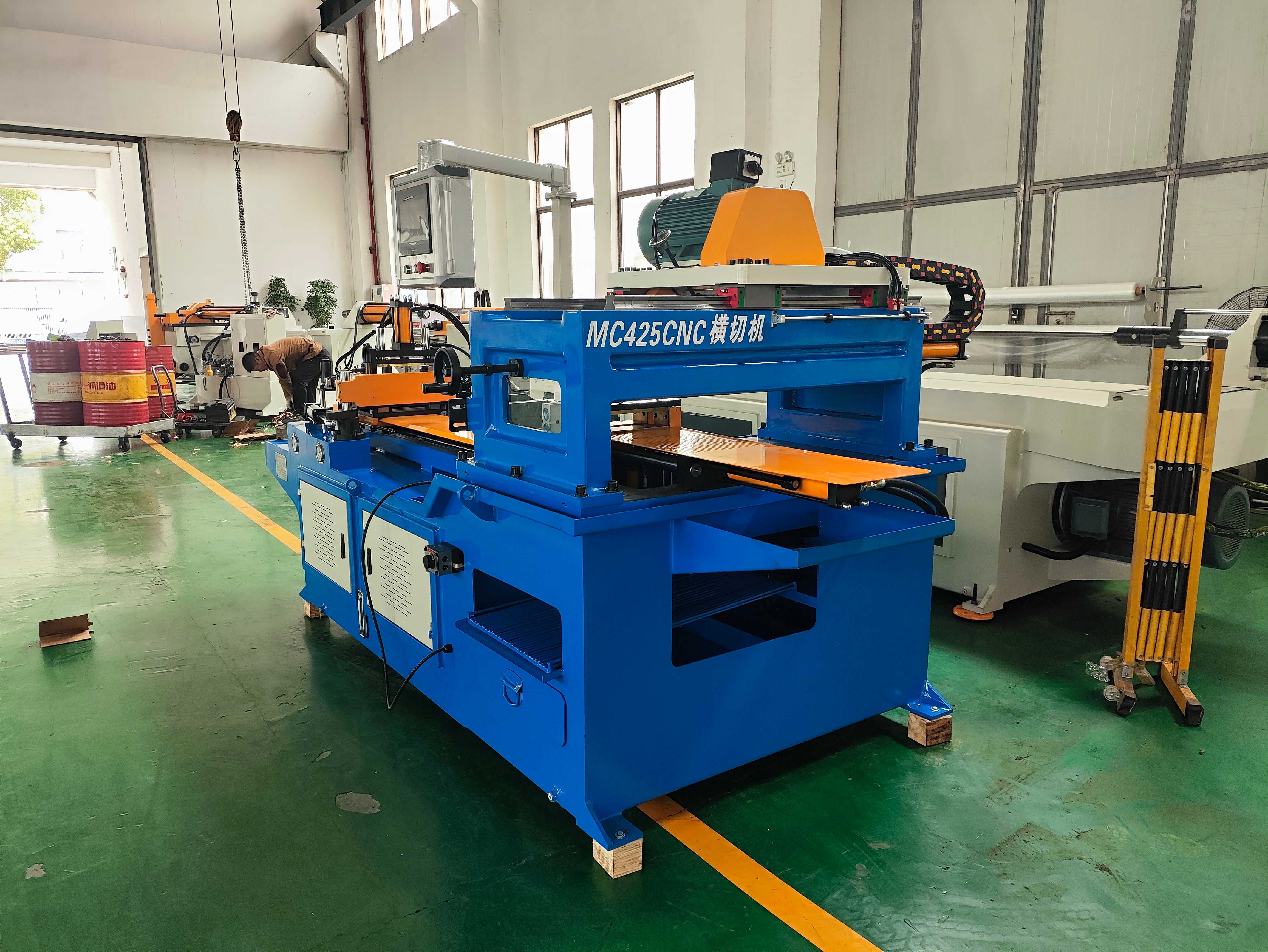

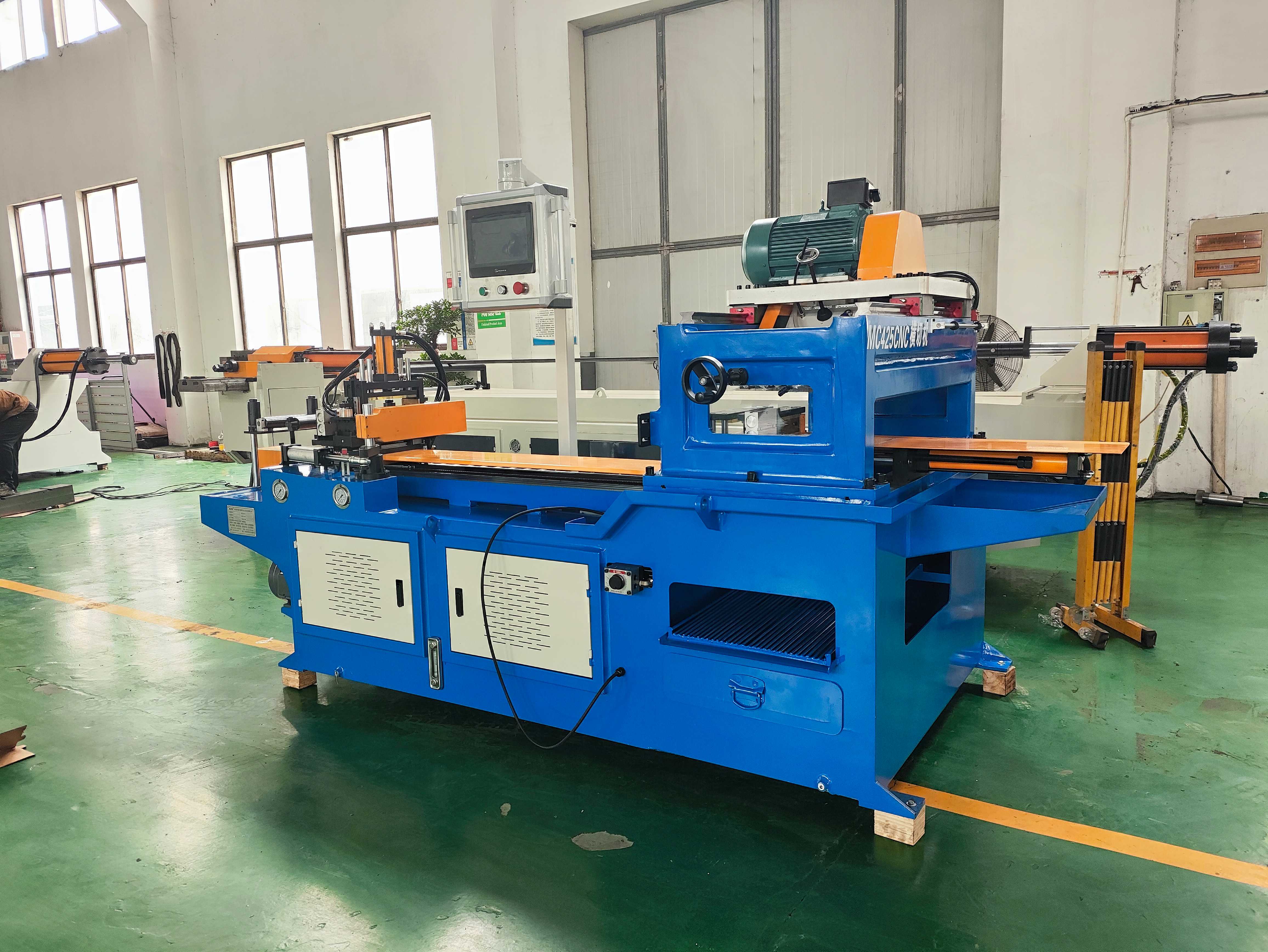

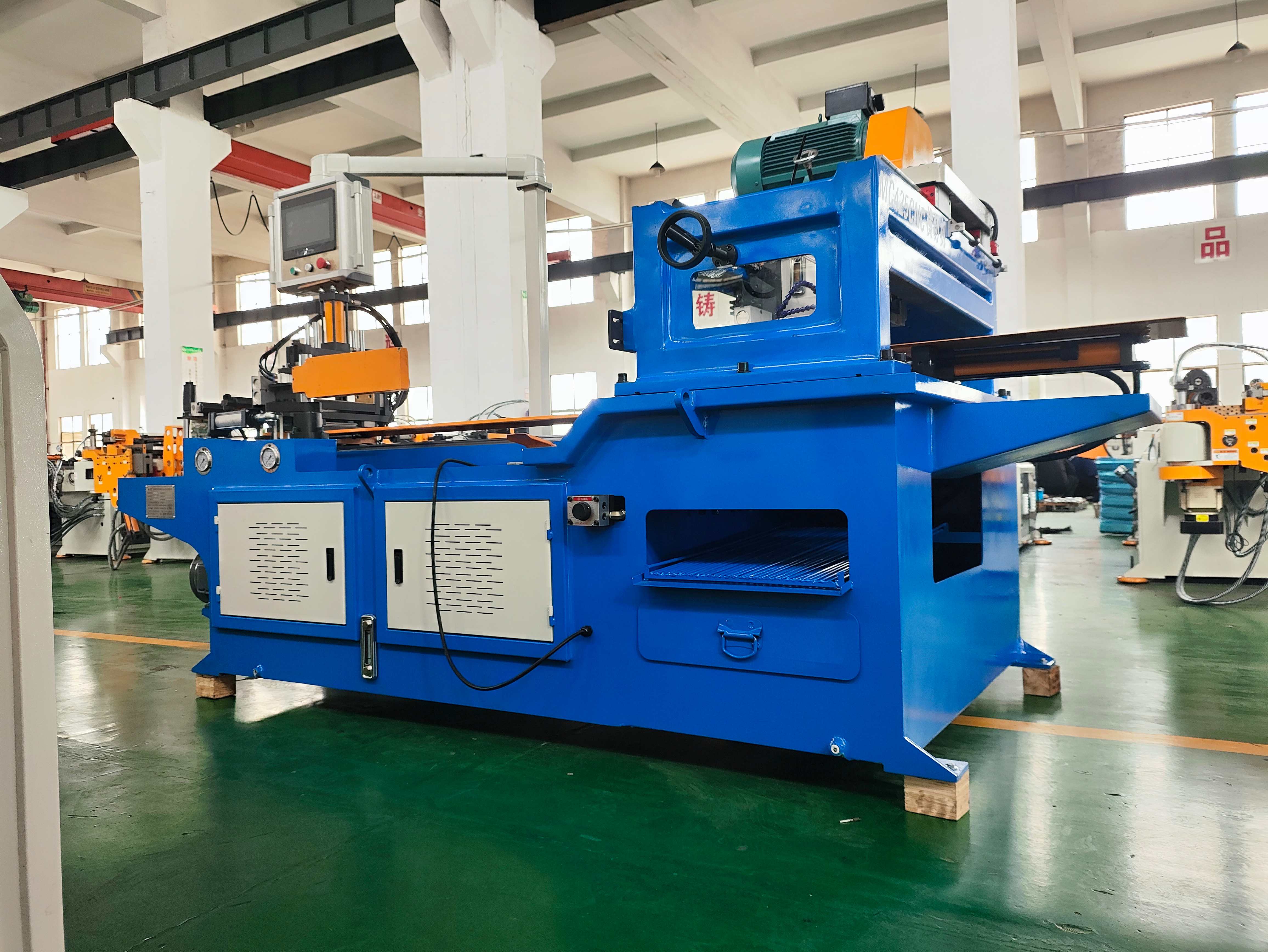

MC-425CNC
Full Auto CNC Pipe Cutting Machine
Full Automatic CNC Pipe Cutting Machine
Full automatic CNC pipe cutting machine with servo feeding system, 120mm round/110mm square capacity, ±0.1mm feeding precision for high-volume production.
CNC Control
Servo Feed
±0.1mm Precision
Auto
Key Features
- Full automatic CNC operation with PLC control
- High-precision servo feeding system (±0.1mm)
- Capable of cutting both round and square tubes
- Variable speed cutting motor (4/6 pole, 3.0-4.0kW)
- Large blade compatibility (OD350-450mm)
- Automatic chip collection system
Technical Specifications
| Specification | MC-425CNC |
|---|---|
| Max. Round Tube Cutting Capacity | 120mm x 3mm wall |
| Max. Square Tube Cutting Capacity | 110 x 110 x 3mm |
| Min. Tube Cutting Capacity (Round) | 10mm x 0.4mm wall |
| Min. Tube Cutting Capacity (Square) | 10 x 10 x 0.4mm |
| Blade Size Range | OD350-450mm, ID32mm |
| Max. Opening of Clamps | 2 x OD11 x 63mm |
| Cutting Motor Power | 3.0-4.0 kW (4/6 pole) |
| Oil Pump Motor Power | 3.0 kW |
| Feeding Precision | ±0.1 mm |
| Feeding System | Servo Motor Drive |
| Machine Dimensions (LxWxH) | 2800 x 1200 x 2000 mm |
| Machine Weight | Approx. 1500 kg |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- Full automatic CNC operation with PLC control
- High-precision servo feeding system (±0.1mm)
- Capable of cutting both round and square tubes
- Variable speed cutting motor (4/6 pole, 3.0-4.0kW)
- Large blade compatibility (OD350-450mm)
- Automatic chip collection system
- Coolant spray system for extended blade life
- HMI touch screen for easy programming
- Batch counting and automatic stop function
- Heavy-duty cast iron construction
Applications
- Furniture Manufacturing
- Automotive Parts Production
- HVAC Duct Fabrication
- Steel Structure Processing
- Fitness Equipment Manufacturing
- General Metal Fabrication
