Pipe Processing Equipment
DW-90CNC-4A-2S

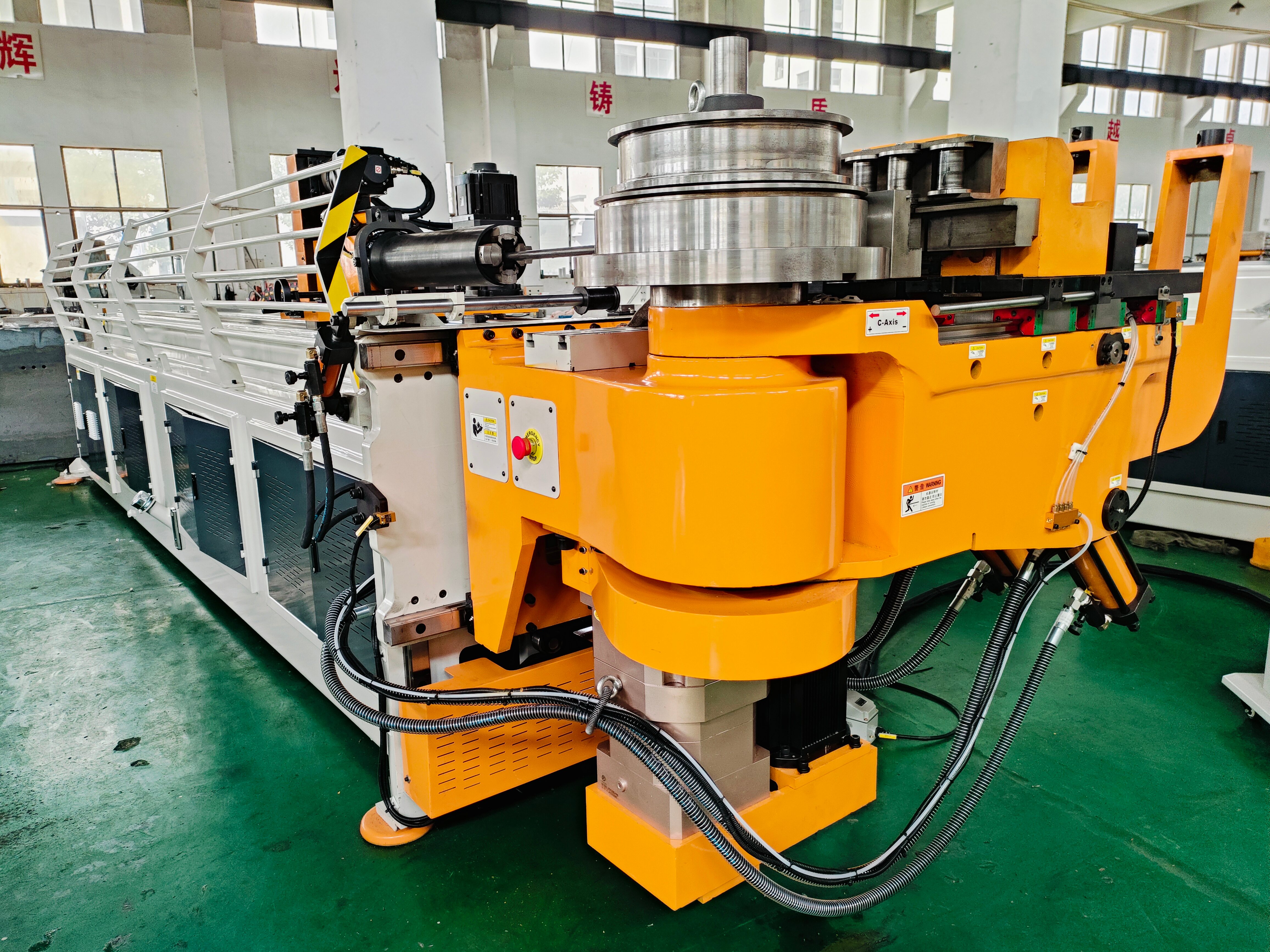

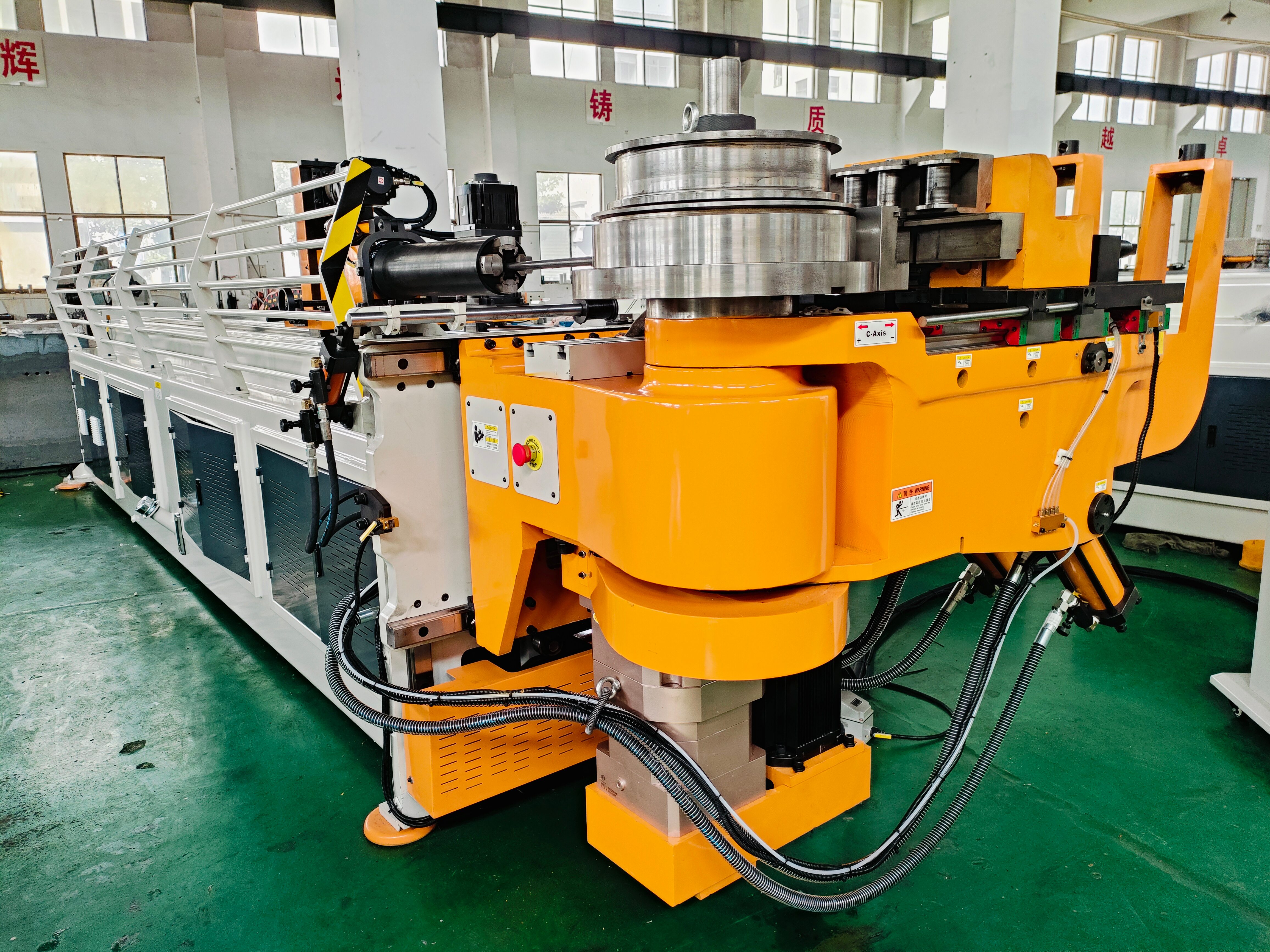

4-Axis CNC Pipe Bending Machine (90mm, 2S)
4-Axis Full Servo CNC Pipe Bender (90mm, 2 Stack)
Heavy-duty 4-axis full servo CNC pipe bender with 90mm capacity, 2-stack dies, 4300mm mandrel working distance for oil & gas and shipbuilding applications.
4-Axis CNC

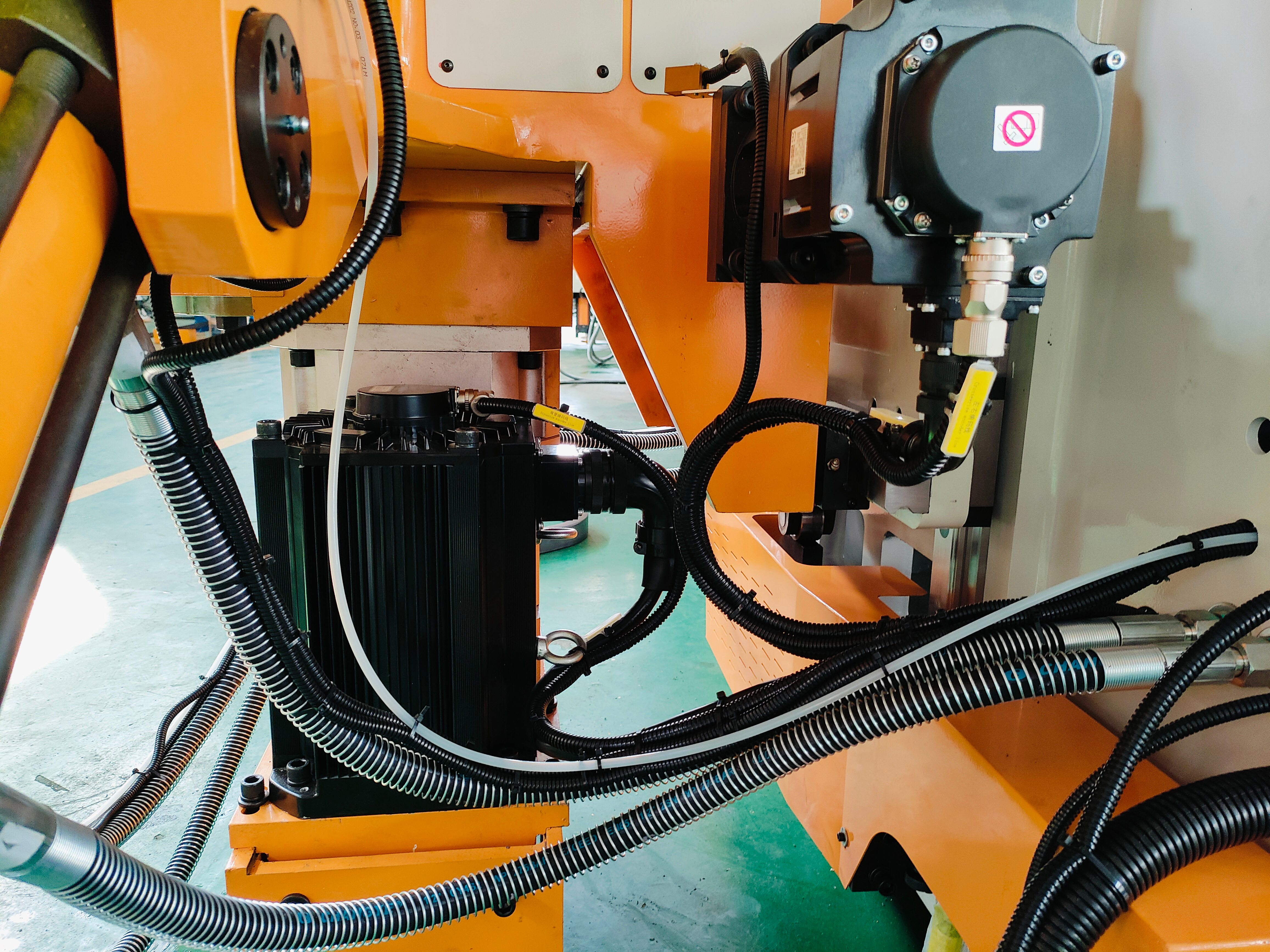

Servo Motor
90mm Capacity
2 Stack Dies
Key Features
- 4-axis full servo CNC control system
- 2-stack bending dies for multi-radius operations

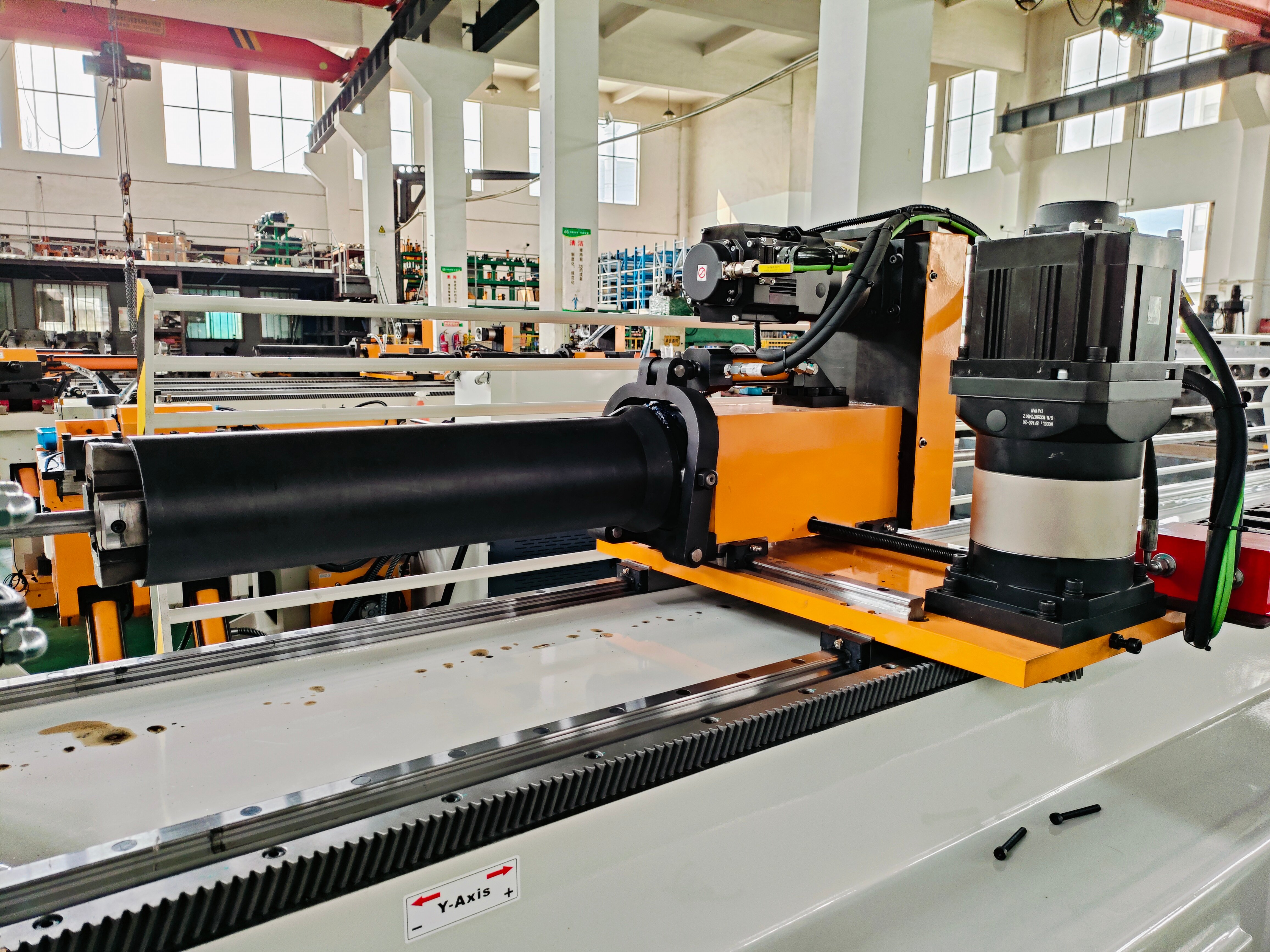

- High-speed servo feeding system (800mm/s)
- Extended 4300mm mandrel working distance
- HMI touch screen interface
- Hydraulic clamping and pressure die system
Technical Specifications
| Specification | DW-90CNC-4A-2S |
|---|---|
| Max Tube O.D. Bending Capacity | Φ90 mm |
| Max Tube Wall Thickness | 5.0 mm |
| CLR Range (Customizable) | 385 mm |
| Max Bending Angle | 190° |
| Max Mandrel Working Distance | 4300 mm |
| Tube Feeding Speed | Max 800 mm/s |
| Tube Rotation Speed | Max 160°/s |
| Tube Bending Speed | Max 40°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Machine Weight | ~4500 kg |
| Machine Dimensions | 5500×1500×1400 mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 4-axis full servo CNC control system
- 2-stack bending dies for multi-radius operations
- High-speed servo feeding system (800mm/s)
- Extended 4300mm mandrel working distance
- HMI touch screen interface
- Hydraulic clamping and pressure die system
- ±0.1 repeatability on all axes
- Suitable for heavy-duty industrial applications
Applications
- Oil & Gas
- Shipbuilding
- Heavy Industry
