Pipe Processing Equipment
DW-90CNC-3A-1S

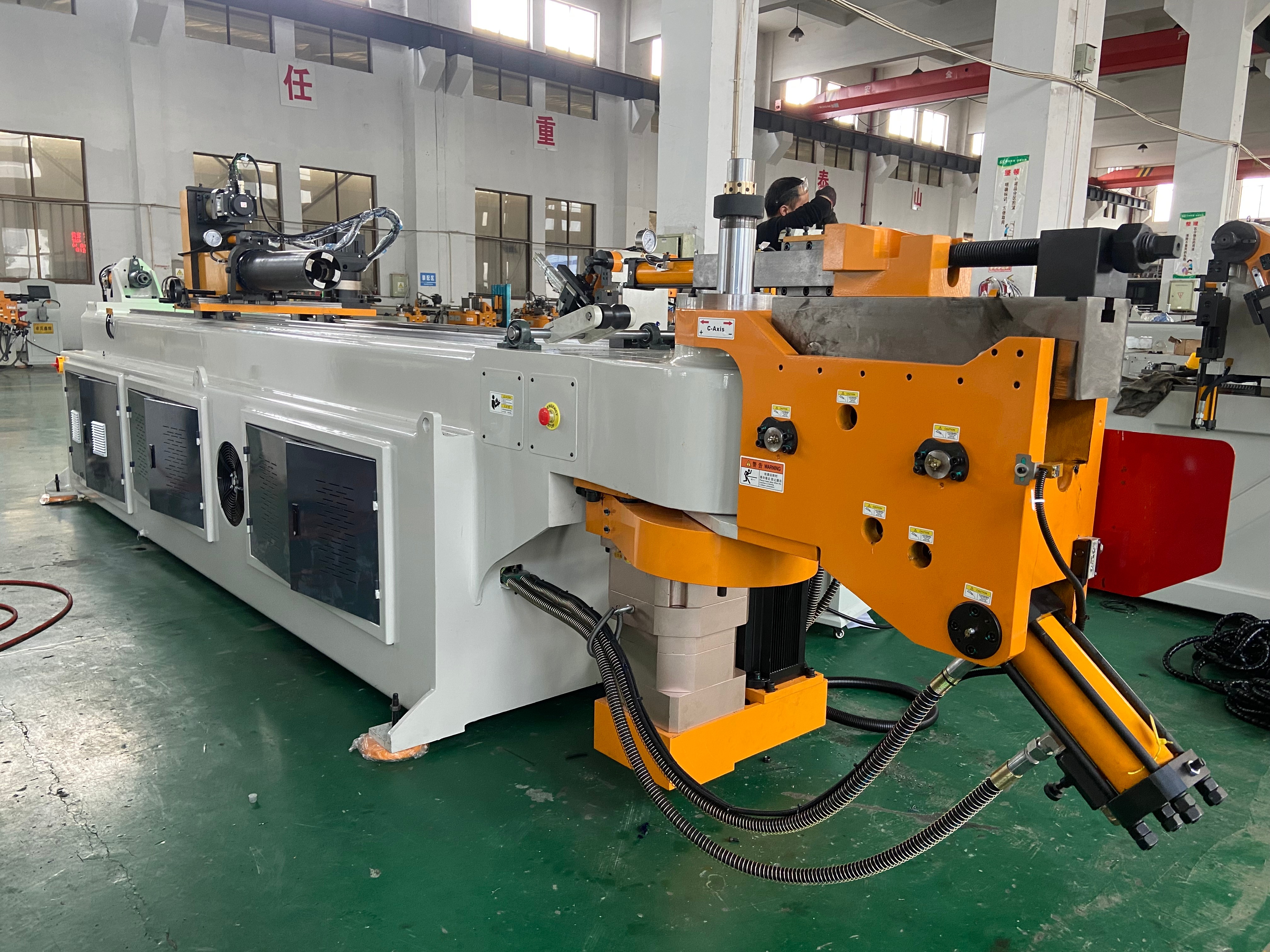

3-Axis CNC Pipe Bending Machine (90mm)
3-Axis Full Servo CNC Pipe Bender (90mm)
Heavy-duty 3-axis full servo CNC pipe bender with 90mm capacity, 4300mm extended mandrel working distance, HMI touch screen for oil & gas applications.
3-Axis CNC
Servo Motor
90mm Capacity
4300mm Distance
Key Features
- 3-axis full servo CNC control system
- High-precision ±0.1 repeatability
- Extended 4300mm mandrel working distance

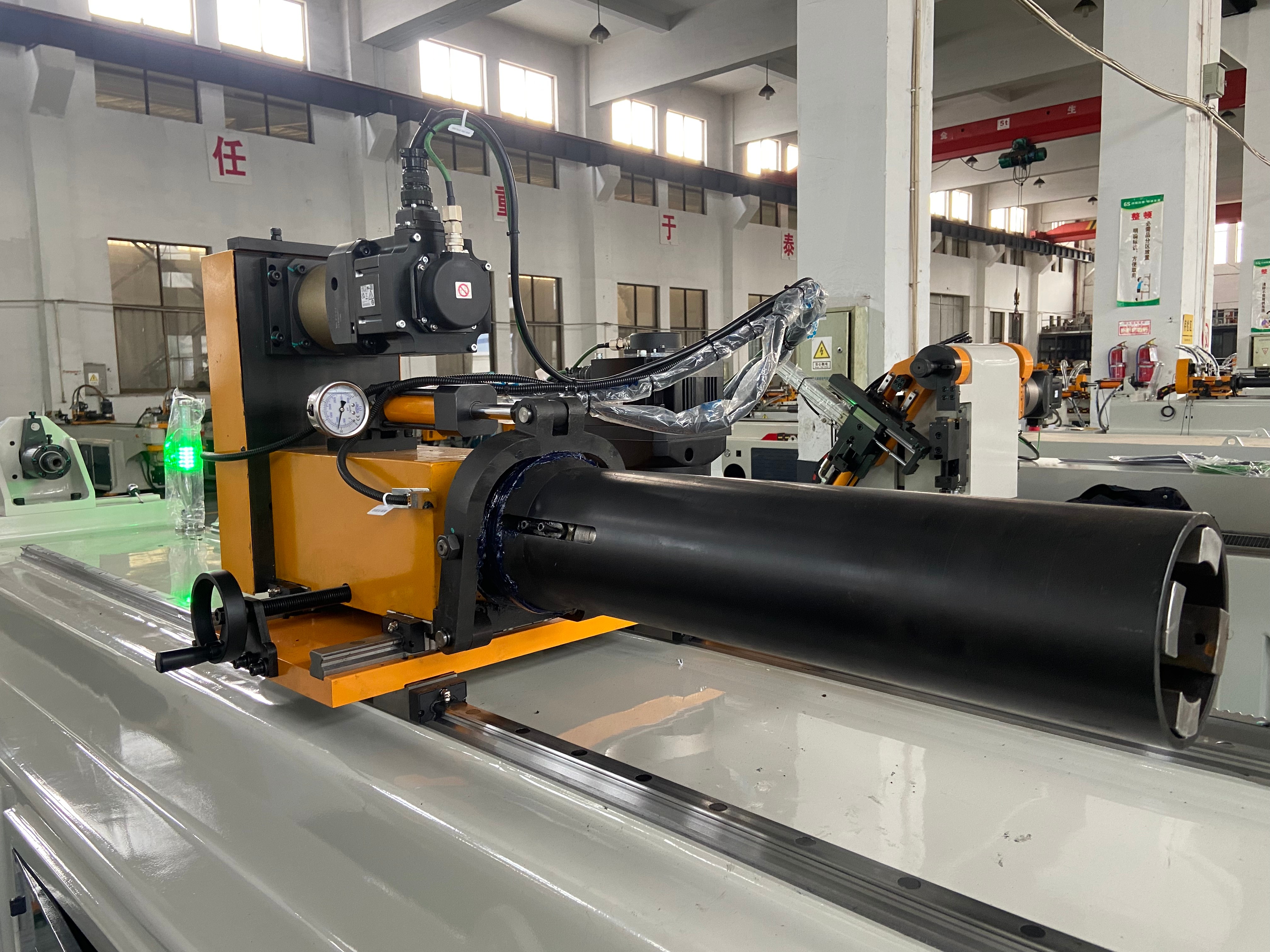

- High-speed servo feeding (800mm/s)
- Hydraulic clamping system

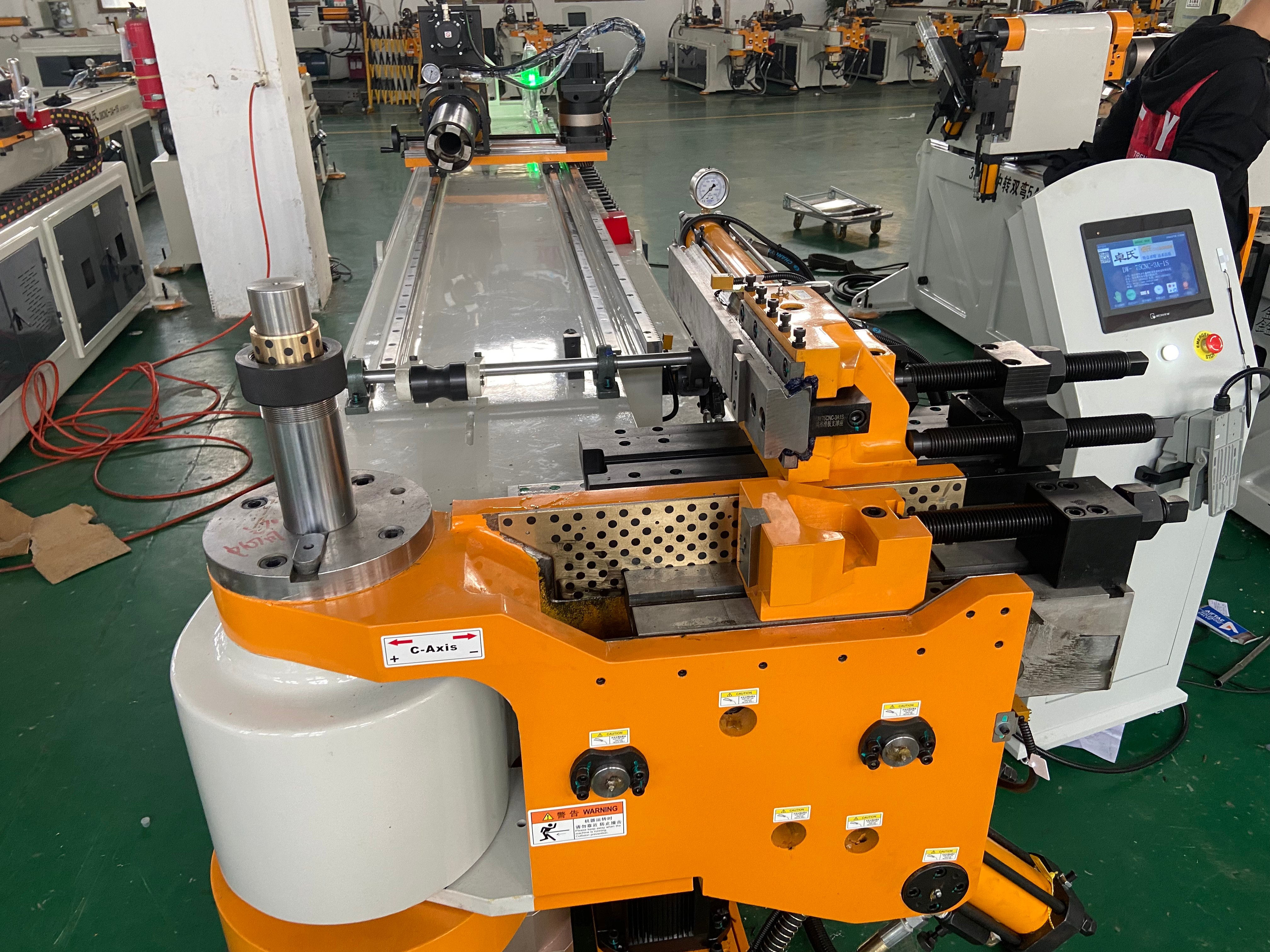

- User-friendly HMI touch screen
Technical Specifications
| Specification | DW-90CNC-3A-1S |
|---|---|
| Max Tube O.D. Bending Capacity | Φ90 mm |
| Max Tube Wall Thickness | 5.0 mm |
| Range of CLR | R385 mm (Customizable) |
| Max Bending Angle | 190° |
| Max Mandrel Working Distance | 4300 mm |
| Tube Feeding Speed | Max 800 mm/s |
| Tube Rotation Speed | Max 160°/s |
| Tube Bending Speed | Max 40°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Overall Weight | Approx. 4500 kg |
| Machine Dimensions (LxWxH) | 5500 x 1500 x 1400 mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 3-axis full servo CNC control system
- High-precision ±0.1 repeatability
- Extended 4300mm mandrel working distance
- High-speed servo feeding (800mm/s)
- Hydraulic clamping system
- User-friendly HMI touch screen
- Suitable for large diameter pipes up to 90mm
- Ideal for oil & gas, shipbuilding industries
Applications
- Oil & Gas
- Shipbuilding
- Heavy Industry
