Pipe Processing Equipment
DW-90CNC-2A-1S

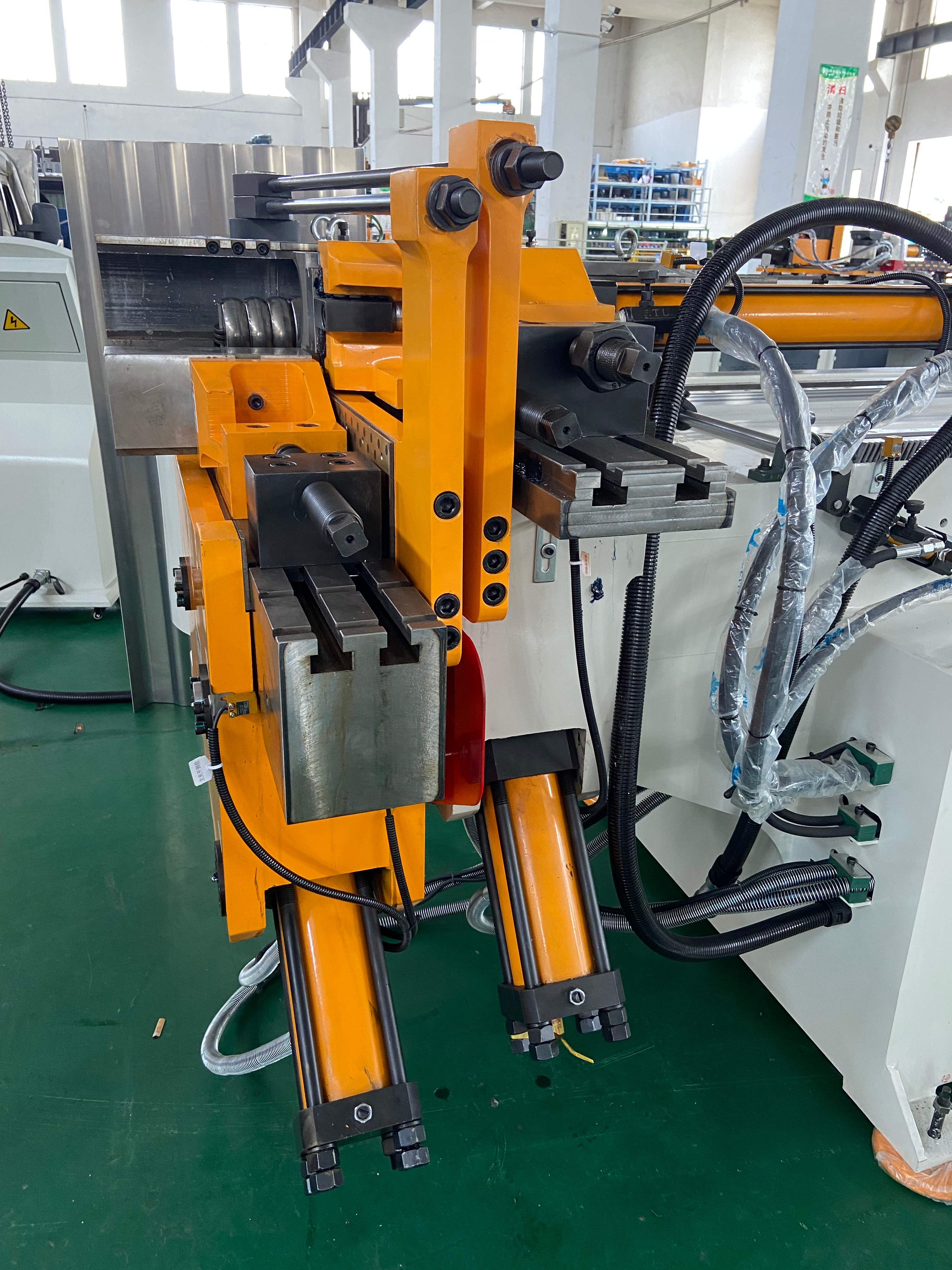

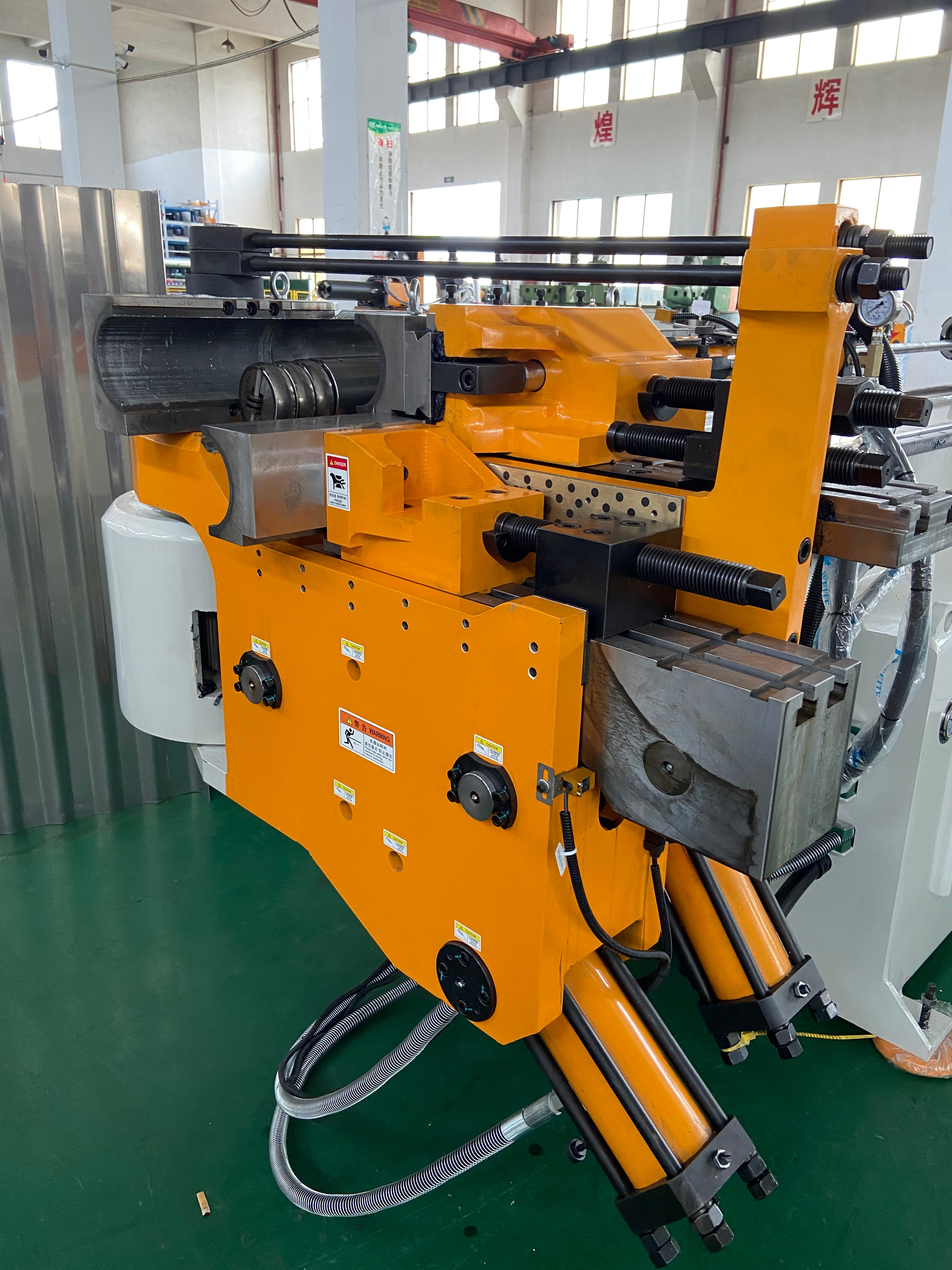

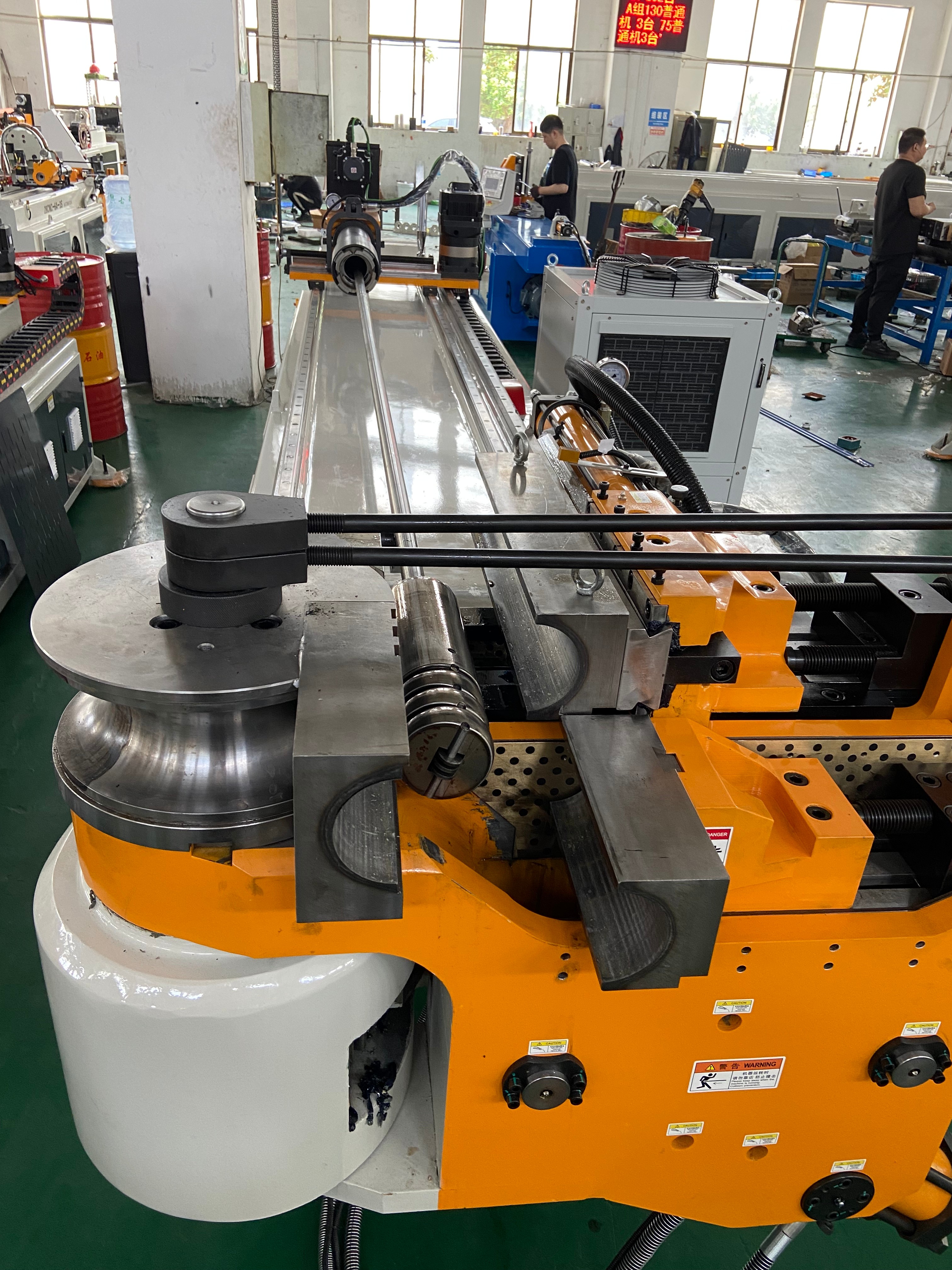

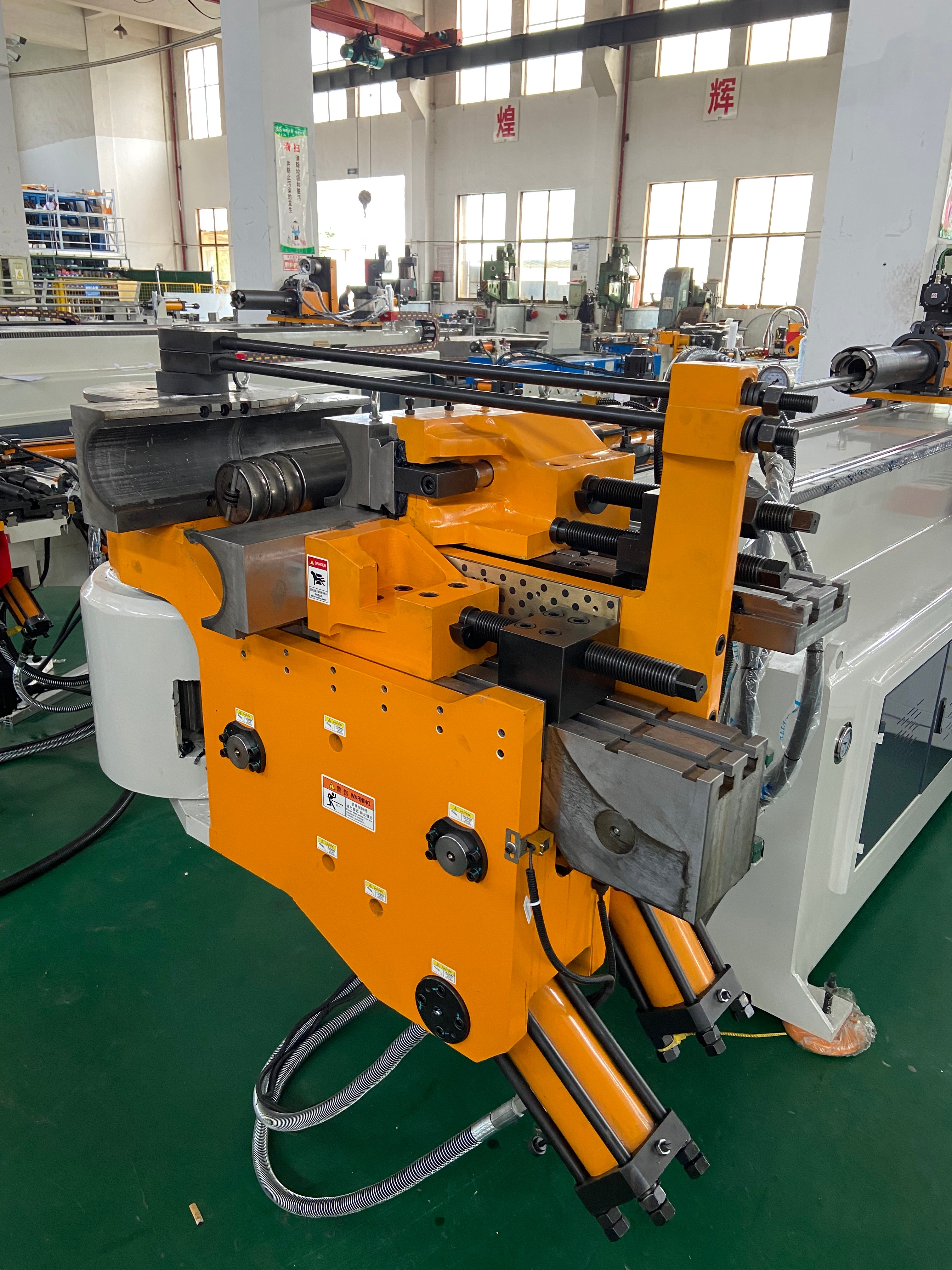

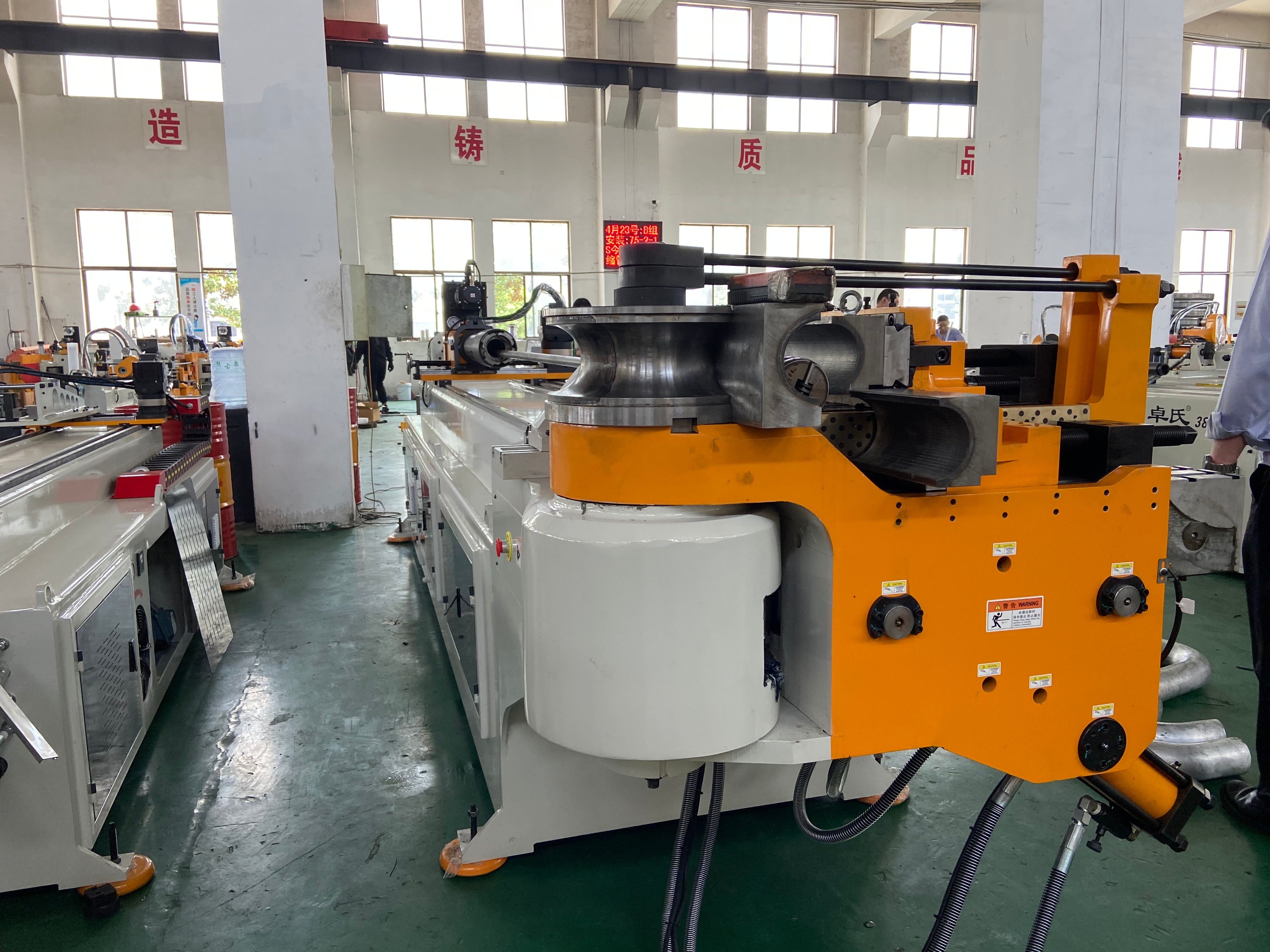

2-Axis CNC Pipe Bending Machine (90mm)
2-Axis Full Servo CNC Pipe Bender (90mm)
Heavy-duty 2-axis full servo CNC pipe bender with 90mm capacity, 4300mm extended mandrel working distance for oil & gas and shipbuilding applications.
2-Axis CNC

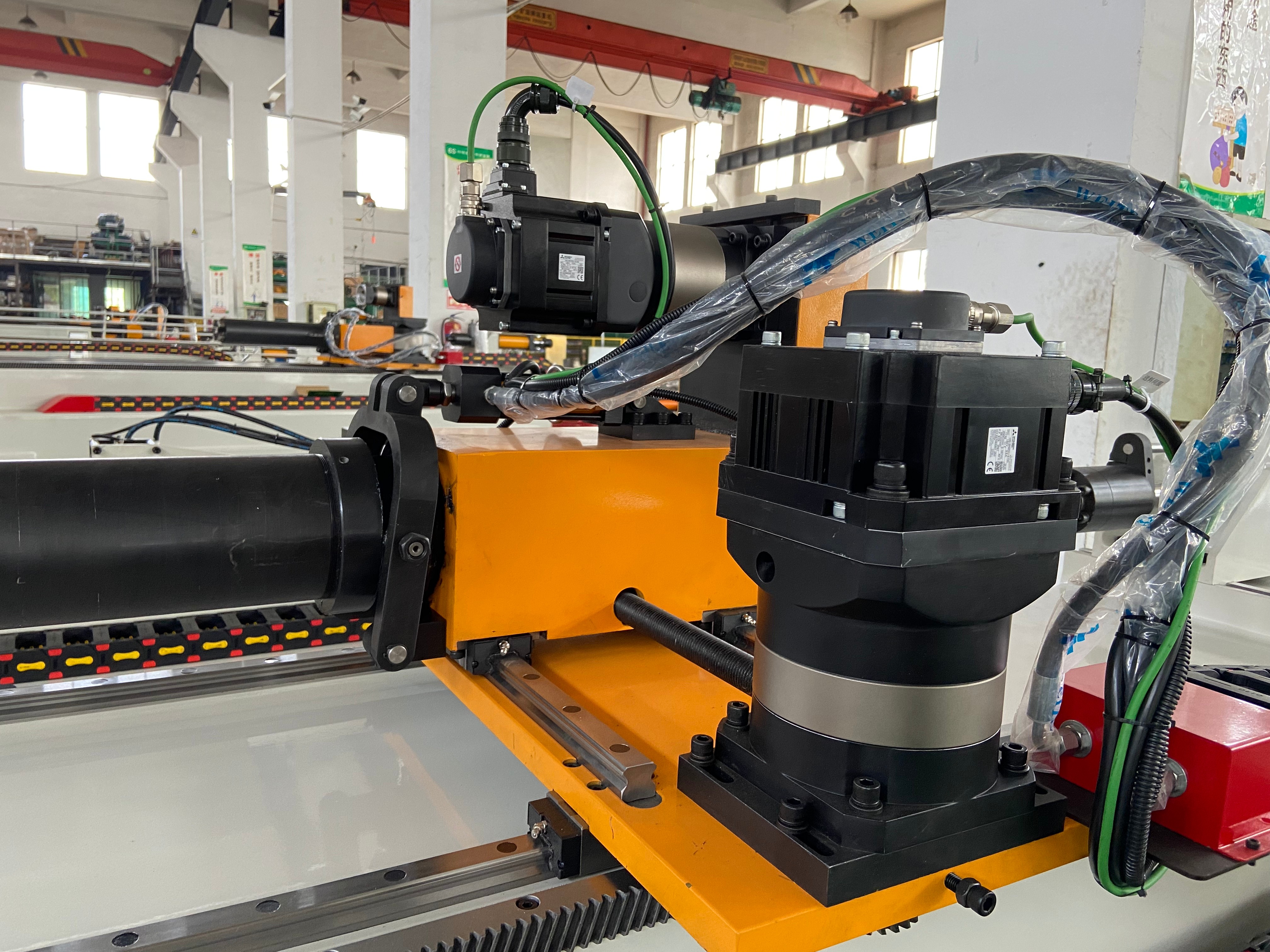

Servo Motor
90mm Capacity
4300mm Distance
Key Features
- 2-axis full servo CNC control system
- Large 90mm tube capacity with 5mm wall thickness
- Extended 4300mm mandrel working distance
- High-speed feeding up to 800mm/s
- ±0.1 repeatability on all axes
- Hydraulic clamping system
Technical Specifications
| Specification | DW-90CNC-2A-1S |
|---|---|
| Max. Tube O.D. | φ90 mm |
| Max. Wall Thickness | 5.0 mm |
| CLR Range | 385 mm (Customizable) |
| Max. Bending Angle | 190° |
| Mandrel Working Distance | 4300 mm |
| Tube Feeding Speed | Max 800 mm/s |
| Tube Rotation Speed | Max 160°/s |
| Tube Bending Speed | Max 40°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Machine Weight | ~4500 kg |
| Dimensions (LxWxH) | 5500×1500×1400 mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 2-axis full servo CNC control system
- Large 90mm tube capacity with 5mm wall thickness
- Extended 4300mm mandrel working distance
- High-speed feeding up to 800mm/s
- ±0.1 repeatability on all axes
- Hydraulic clamping system
- Touch screen HMI interface
- Automatic lubrication system
- Heavy-duty cast iron construction
- CE certified for European markets
Applications
- Oil & Gas Pipelines
- Shipbuilding Industry
- Construction & Architecture
- Heavy Machinery Manufacturing
- Power Plant Equipment
- HVAC Large Ductwork
