Pipe Processing Equipment
DW-75CNC-4A-3S

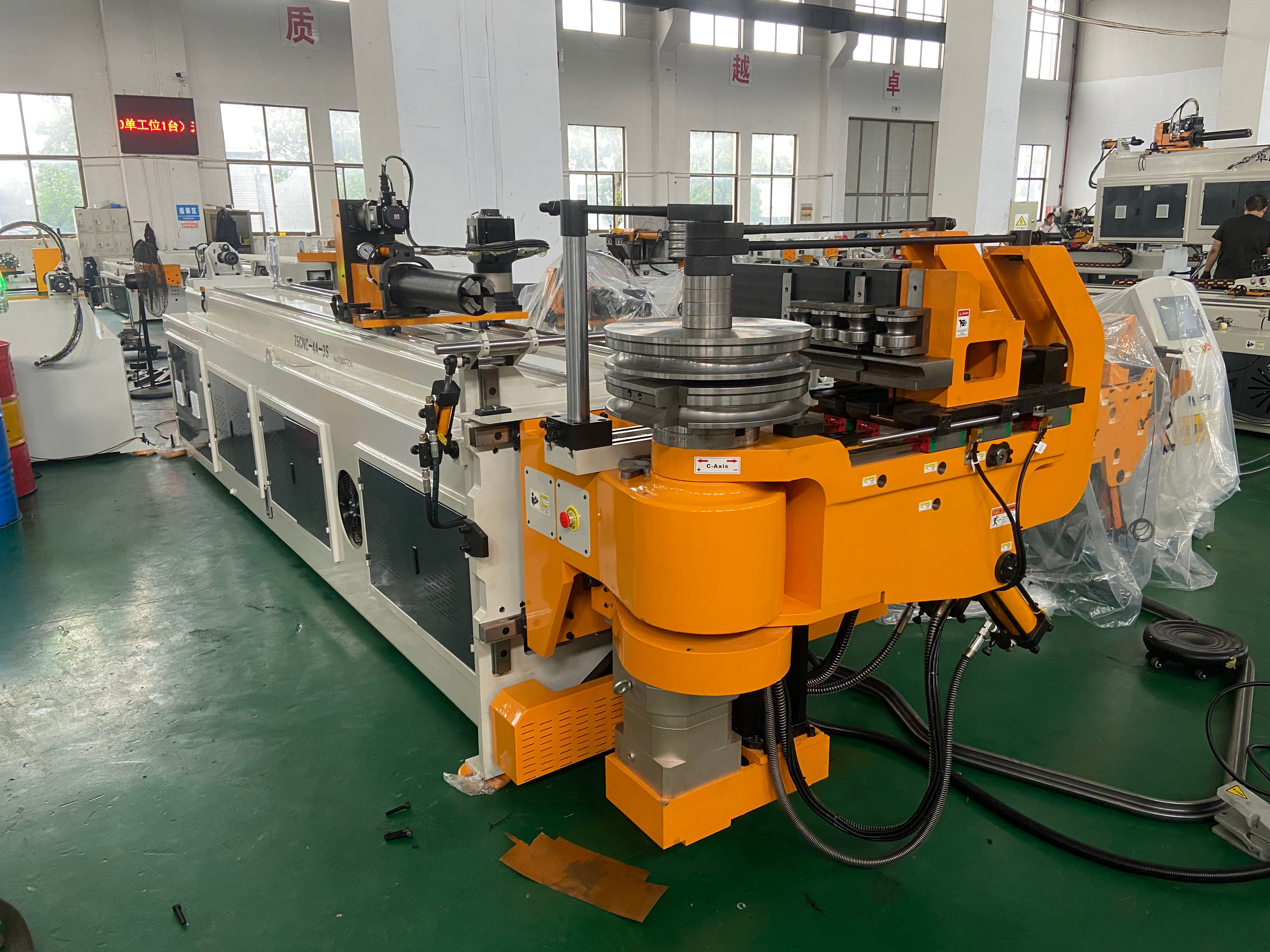

4-Axis CNC Pipe Bending Machine (75mm, 3S)
4-Axis Full Auto CNC Pipe Bender (75mm, 3 Stack)
Heavy-duty 4-axis full servo CNC pipe bender with 75mm capacity, 3-stack dies, 3500mm mandrel working distance for large industrial applications.
4-Axis CNC
Servo Motor
75mm Capacity
3 Stack Dies
Key Features

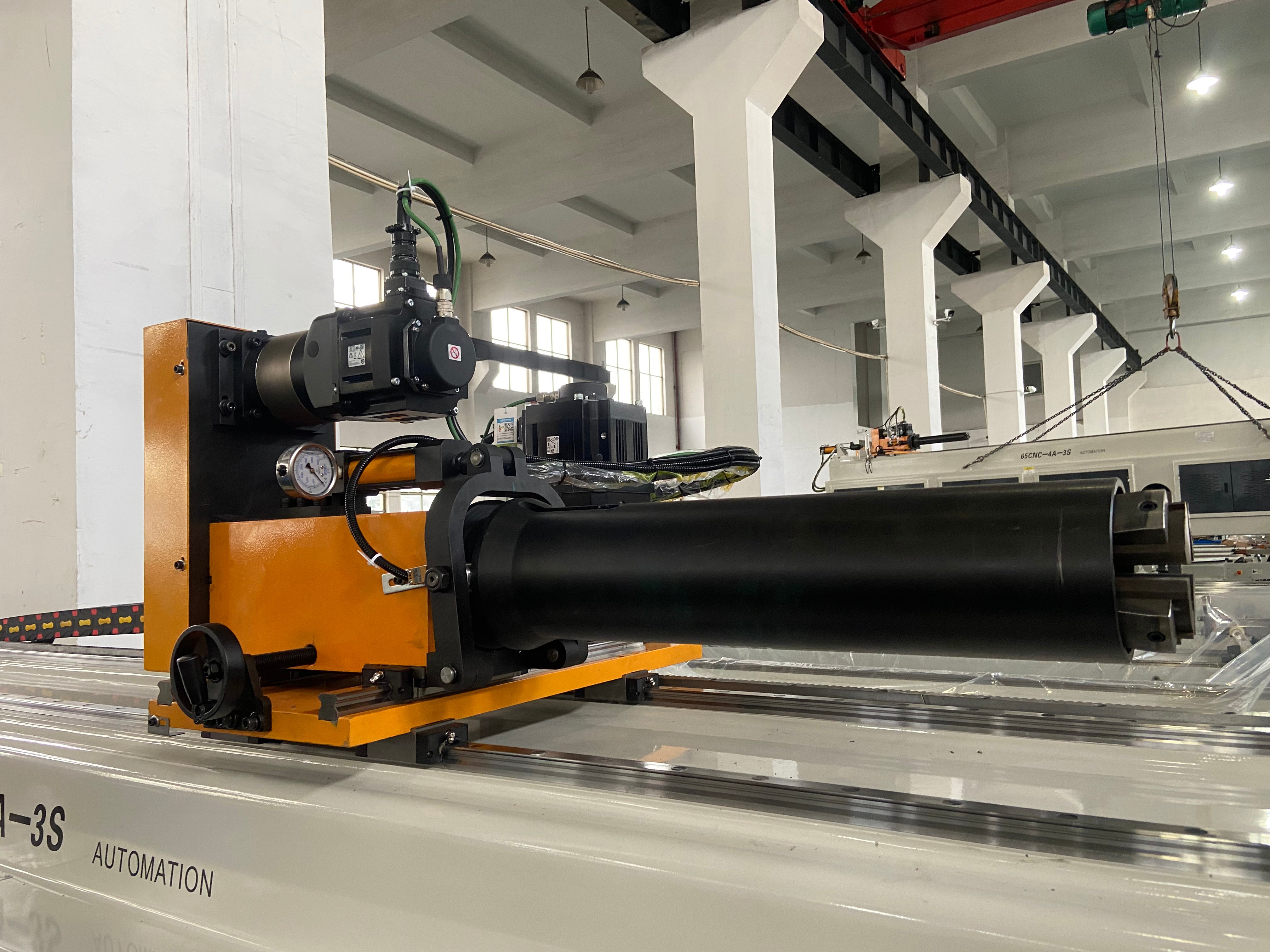

- 4-axis full servo motor control for precise movements

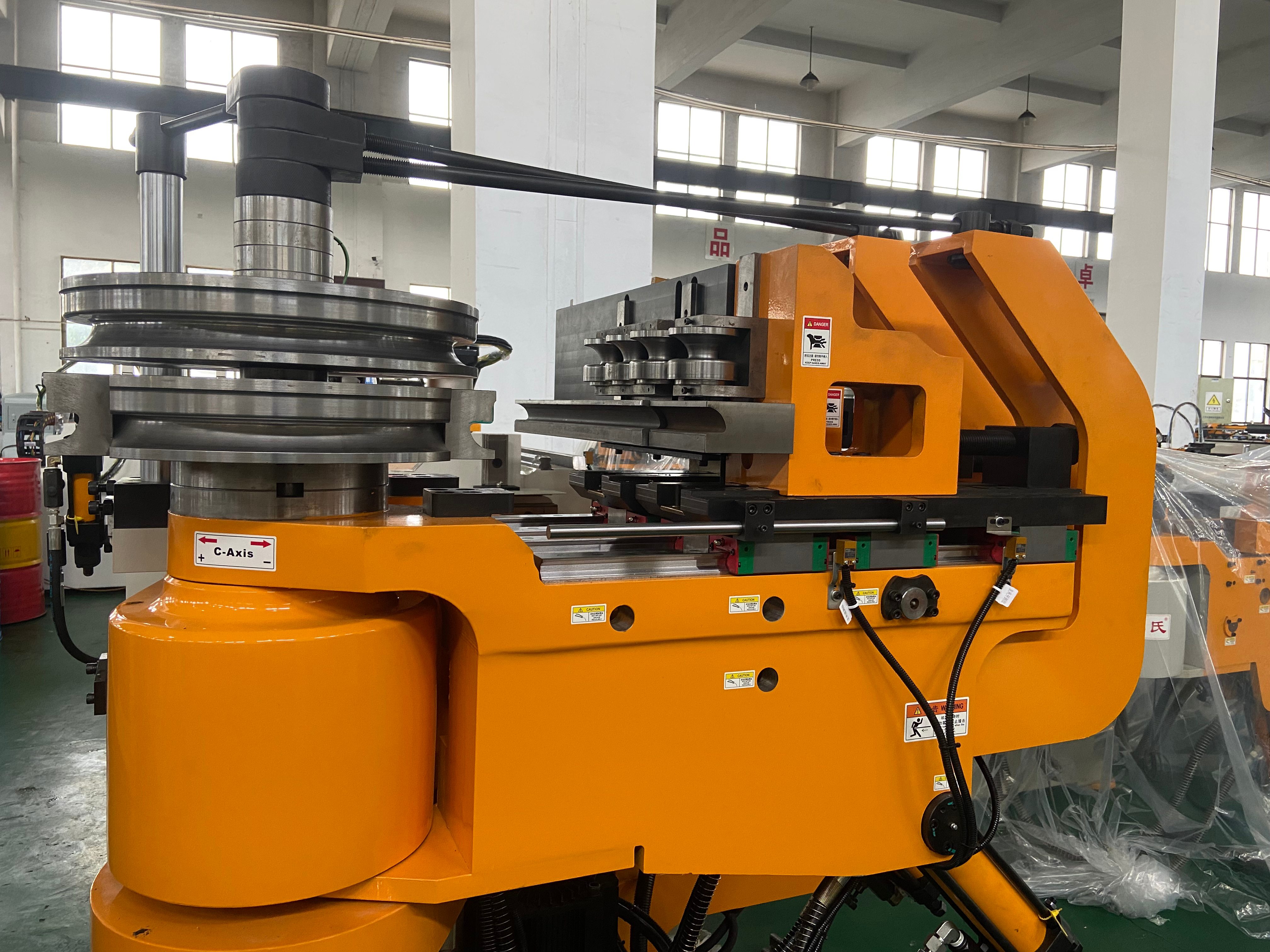

- 3-stack bending dies for multi-radius operations

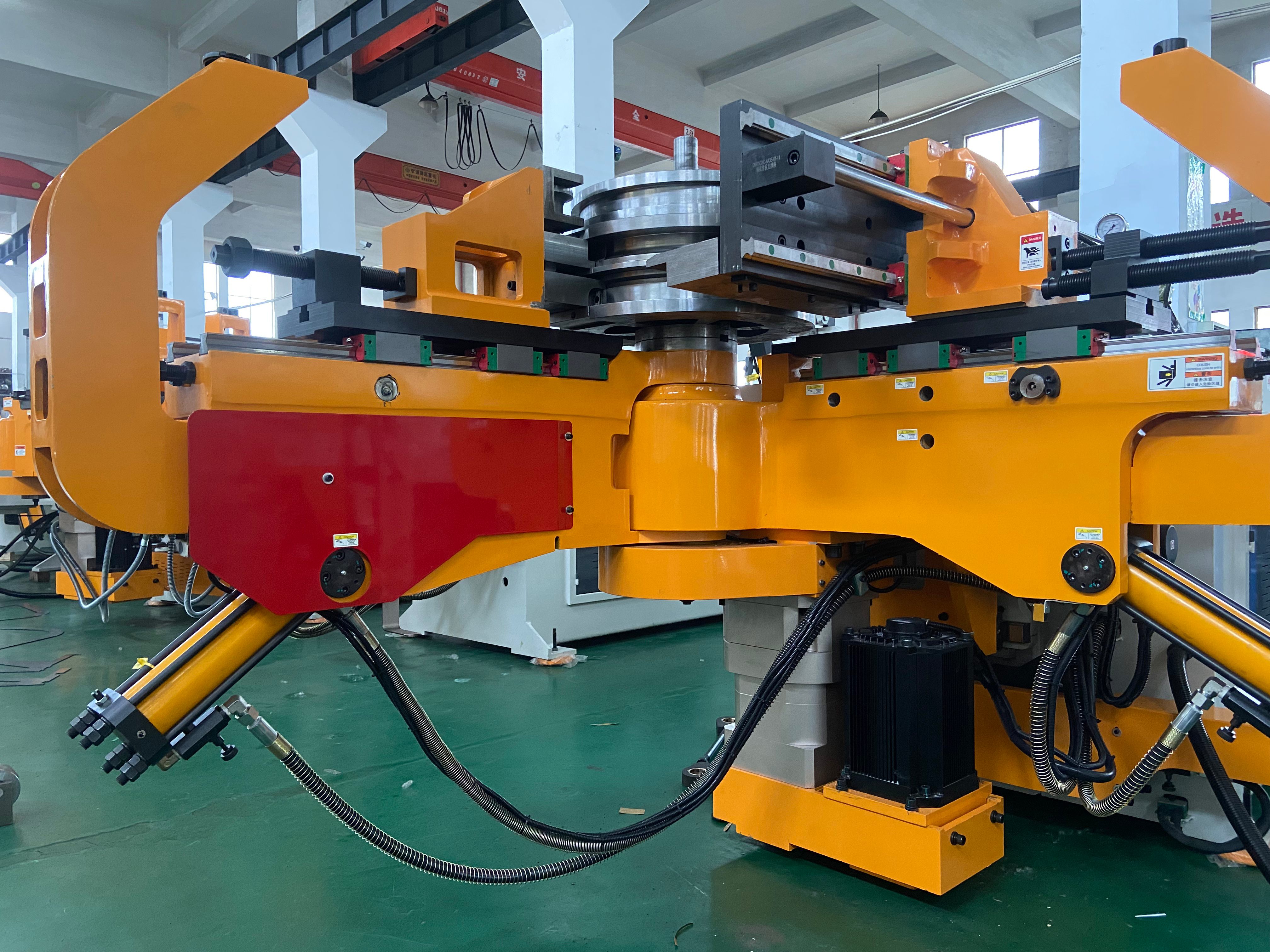

- Advanced dual-arm bending mechanism
- 3500mm extended mandrel working distance

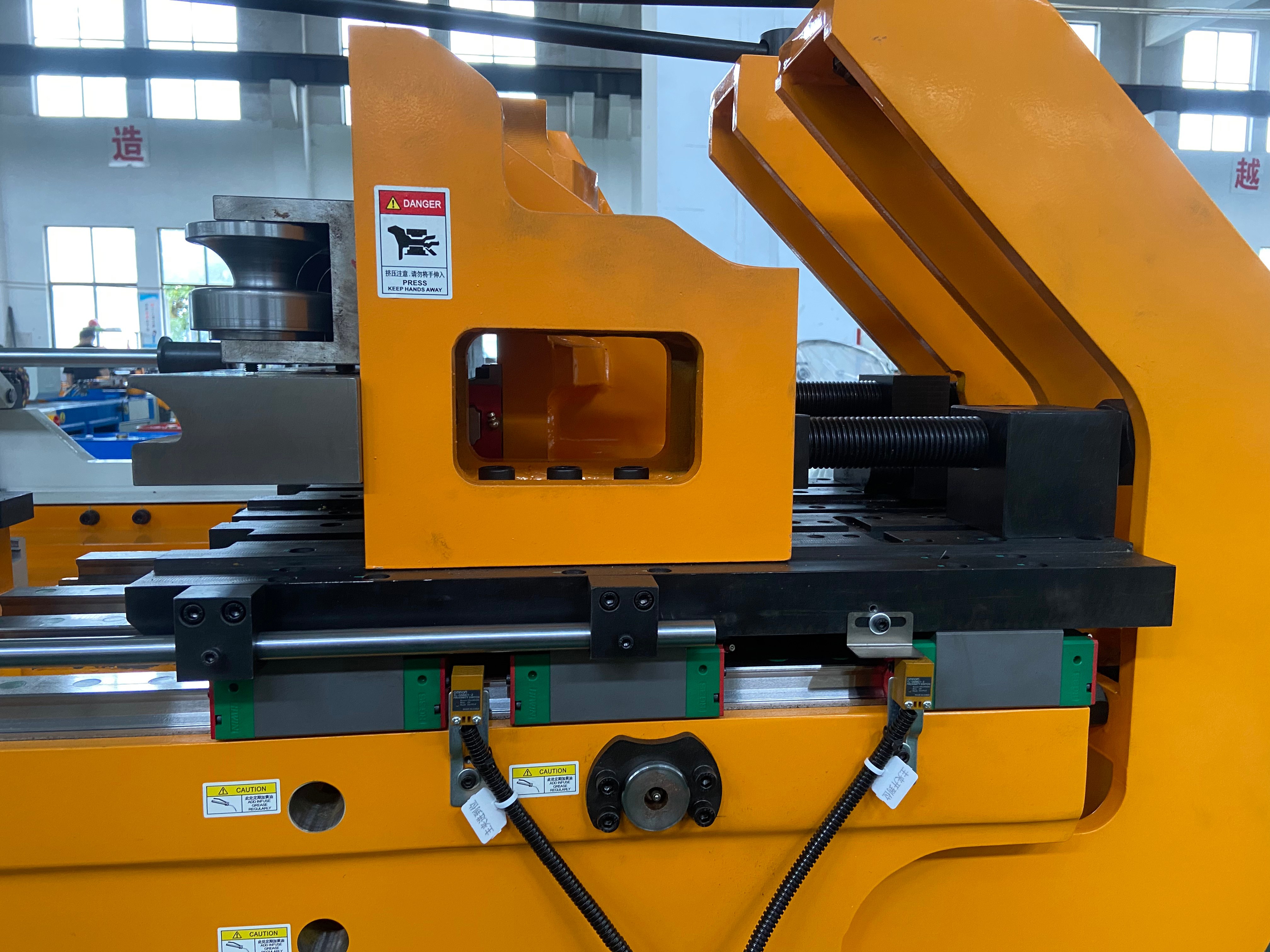

- High-precision linear guide rail system
- Heavy-duty construction for 75mm capacity
Technical Specifications
| Specification | DW-75CNC-4A-3S |
|---|---|
| Max. Tube O.D. Bending Capacity | 75 mm |
| Max. Tube Wall Thickness | 4.0 mm |
| CLR Range (Customizable) | 350 mm |
| Max. Bending Angle | 190° |
| Max. Mandrel Working Distance | 3500 mm |
| Tube Feeding Speed | Max 800 mm/s |
| Tube Rotation Speed | Max 160°/s |
| Tube Bending Speed | Max 40°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Overall Weight | Approx. 4500 kg |
| Machine Dimensions (LxWxH) | 5200 x 1200 x 1000 mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 4-axis full servo motor control for precise movements
- 3-stack bending dies for multi-radius operations
- Advanced dual-arm bending mechanism
- 3500mm extended mandrel working distance
- High-precision linear guide rail system
- Heavy-duty construction for 75mm capacity
- Touch screen HMI with intuitive interface
- Automatic angle measurement and compensation
Applications
- Large-scale industrial piping
- Heavy machinery manufacturing
- Construction equipment
- Agricultural machinery
- Shipbuilding industry
- Power generation equipment
