Pipe Processing Equipment
DW-65CNC-4A-3S
4-Axis CNC Pipe Bending Machine (65mm, 3S)
4-Axis Full Auto CNC Pipe Bender (3 Stack, 65mm)
Heavy-duty 4-axis full servo CNC pipe bender with 65mm capacity and 3-stack bending dies for maximum flexibility in multi-radius operations.
4-Axis CNC
Servo Motor
65mm Capacity
3 Stack Dies
Key Features
- 4-axis full servo motor control for precise positioning

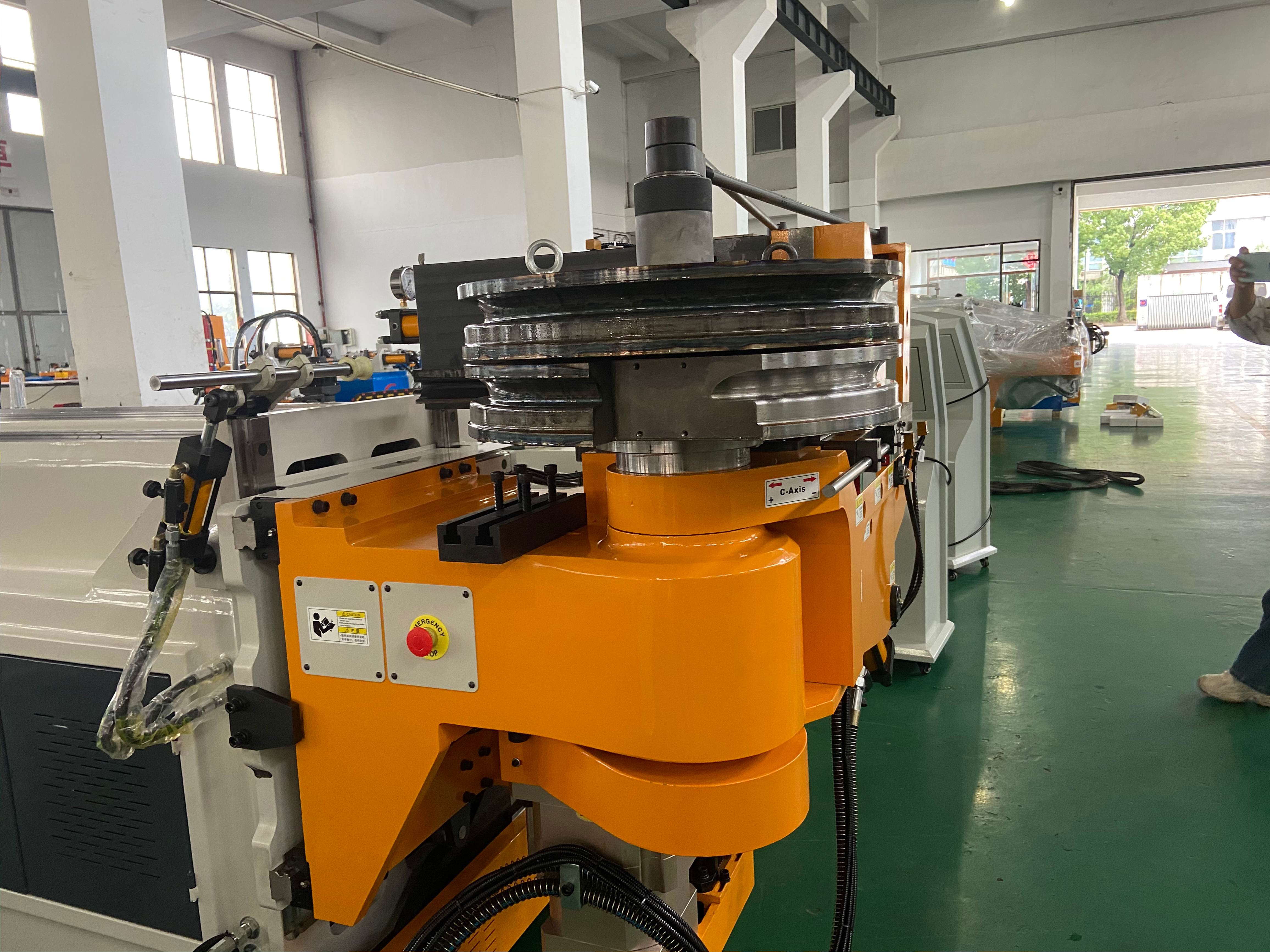

- 3-stack bending dies for maximum radius flexibility

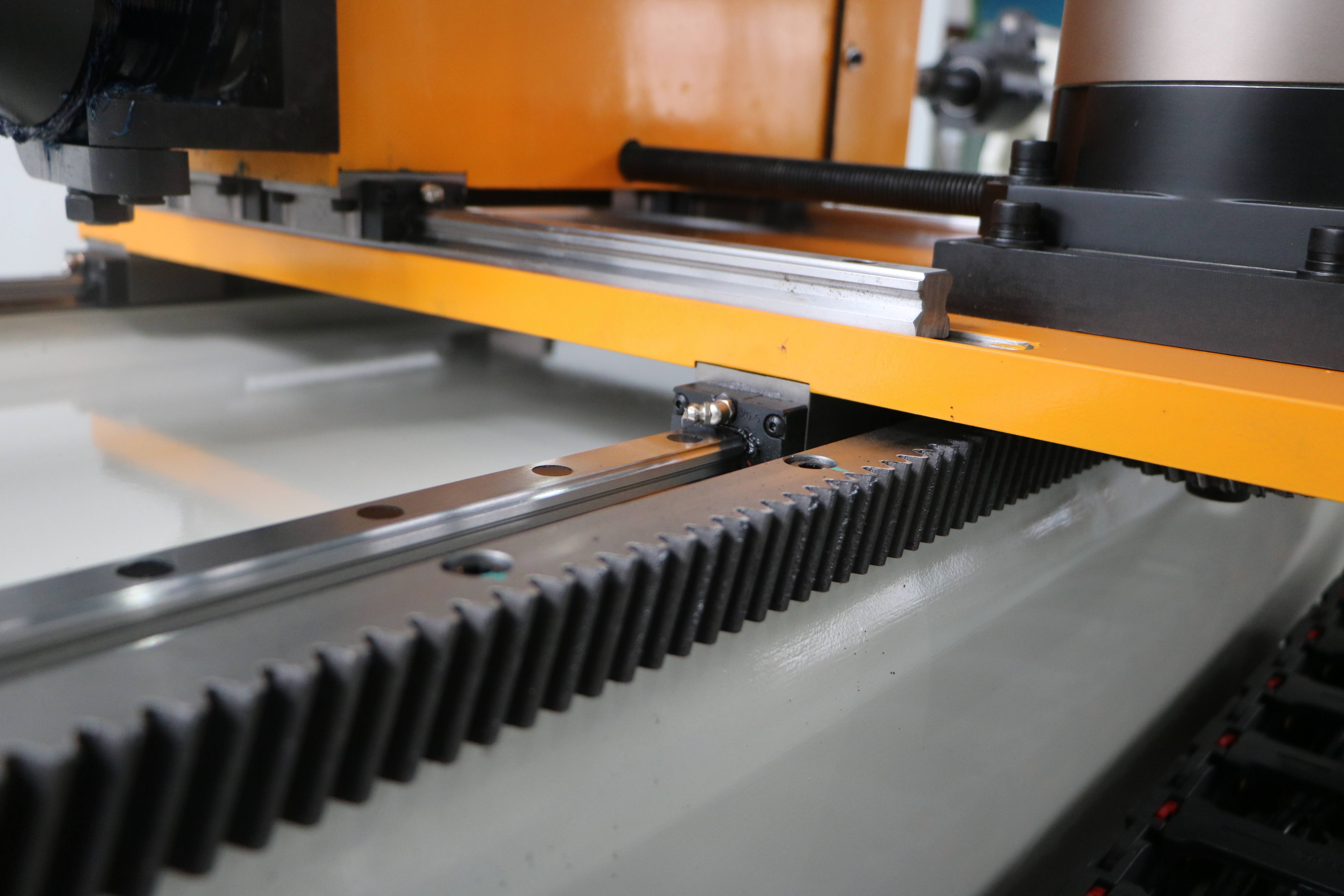

- High-precision rack and pinion feeding system
- Advanced CNC control with touch screen interface
- Automatic angle compensation and springback correction
- Heavy-duty construction for industrial applications
Technical Specifications
| Specification | DW-65CNC-4A-3S |
|---|---|
| Max Tube O.D. Bending Capacity | 65mm |
| Max Tube Wall Thickness | 3.0mm |
| CLR Range (Customizable) | 300mm |
| Max Bending Angle | 190° |
| Max Mandrel Working Distance | 2600mm |
| Tube Feeding Speed | Max 1000mm/s |
| Tube Rotation Speed | Max 200°/s |
| Tube Bending Speed | Max 85°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Stack Dies | 3 Stack |
| Overall Weight | Approx. 2600kg |
| Machine Dimensions (LxWxH) | 5100x1100x900mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 4-axis full servo motor control for precise positioning
- 3-stack bending dies for maximum radius flexibility
- High-precision rack and pinion feeding system
- Advanced CNC control with touch screen interface
- Automatic angle compensation and springback correction
- Heavy-duty construction for industrial applications
- CE certified for international markets
Applications
- Automotive exhaust systems
- HVAC ducting and piping
- Furniture manufacturing
- Fitness equipment
- Industrial machinery
- Shipbuilding
