Pipe Processing Equipment
DW-65CNC-4A-2S

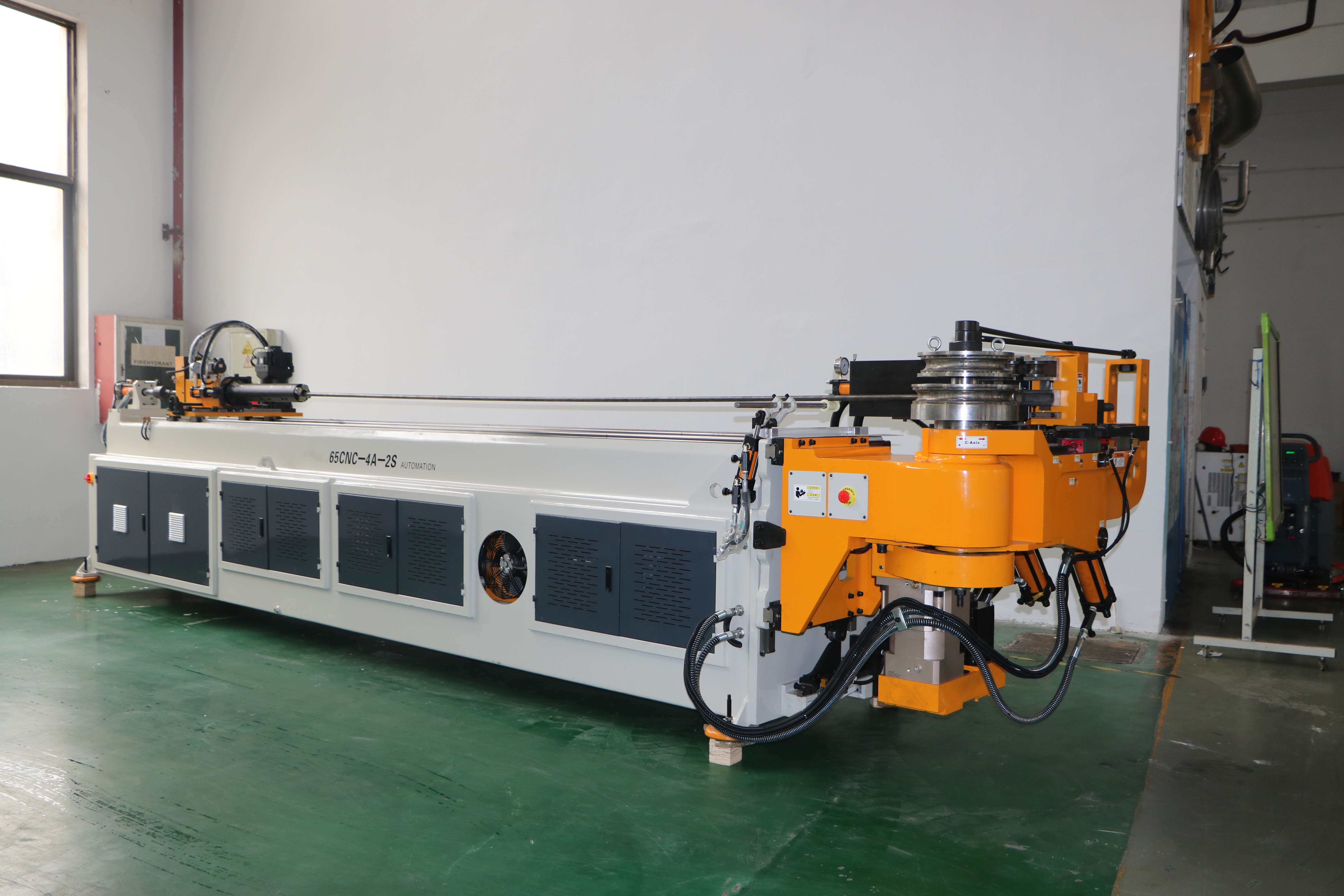

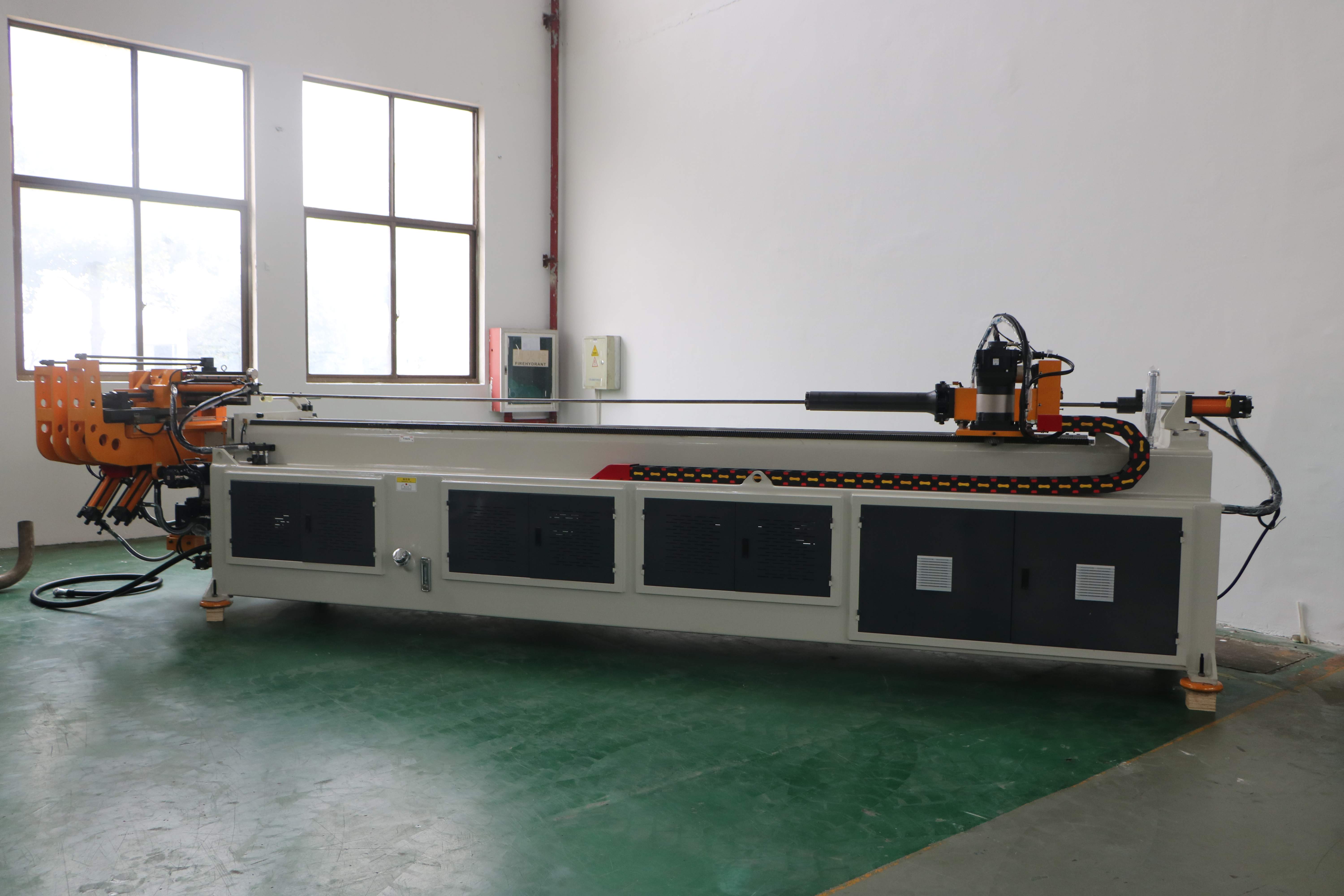

4-Axis CNC Pipe Bending Machine (65mm, 2S)
4-Axis Full Servo CNC Pipe Bender (65mm, 2 Stack)
Heavy-duty 4-axis full servo CNC pipe bender with 65mm capacity, 2-stack dies, 2600mm mandrel working distance for industrial applications.
4-Axis CNC
Servo Motor
65mm Capacity
2 Stack Dies
Key Features
- 4-axis full servo CNC control system

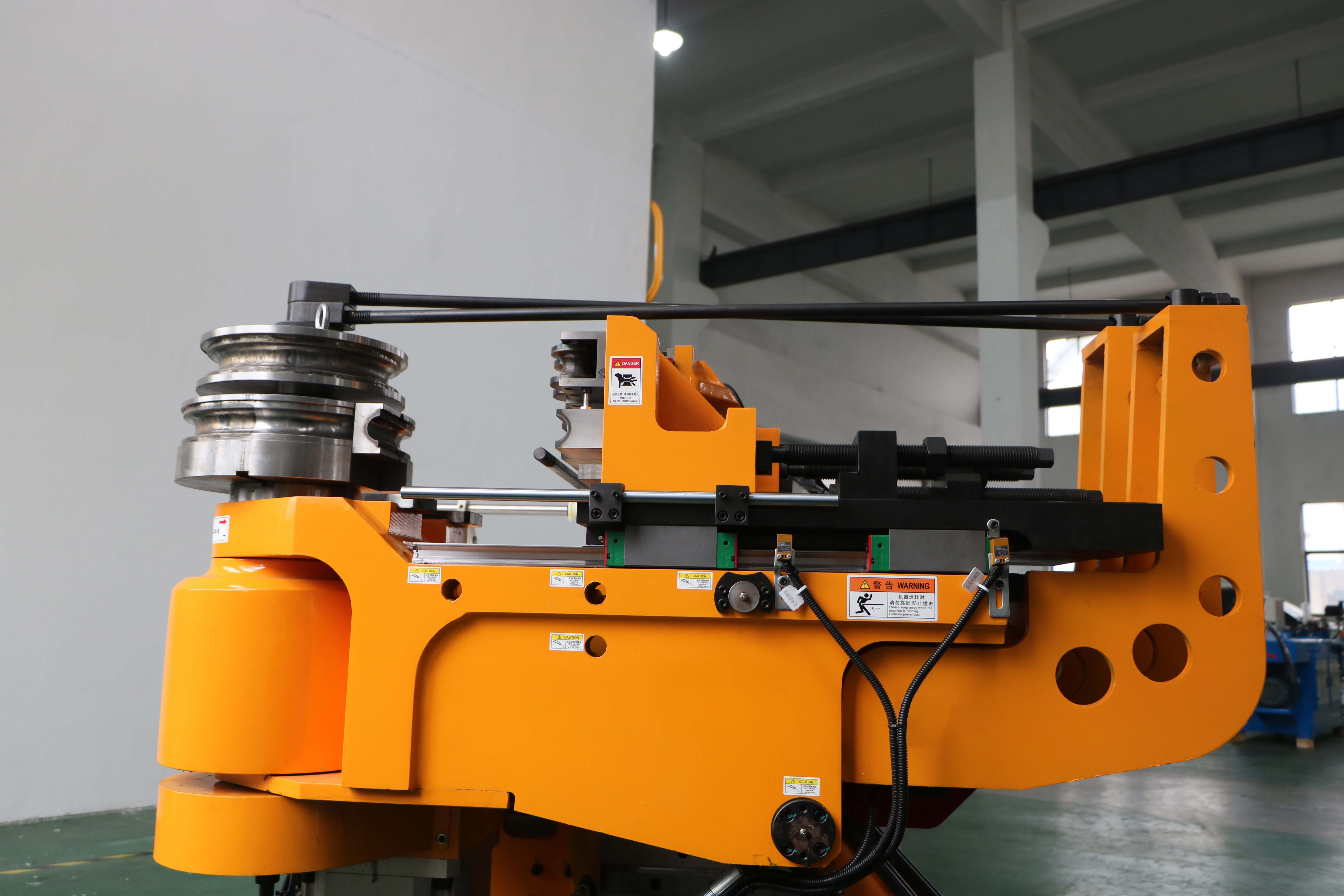

- 2-stack bending dies for multi-radius operations
- High-precision ±0.1 repeatability on all axes
- 65mm max tube diameter capacity
- Touchscreen HMI interface

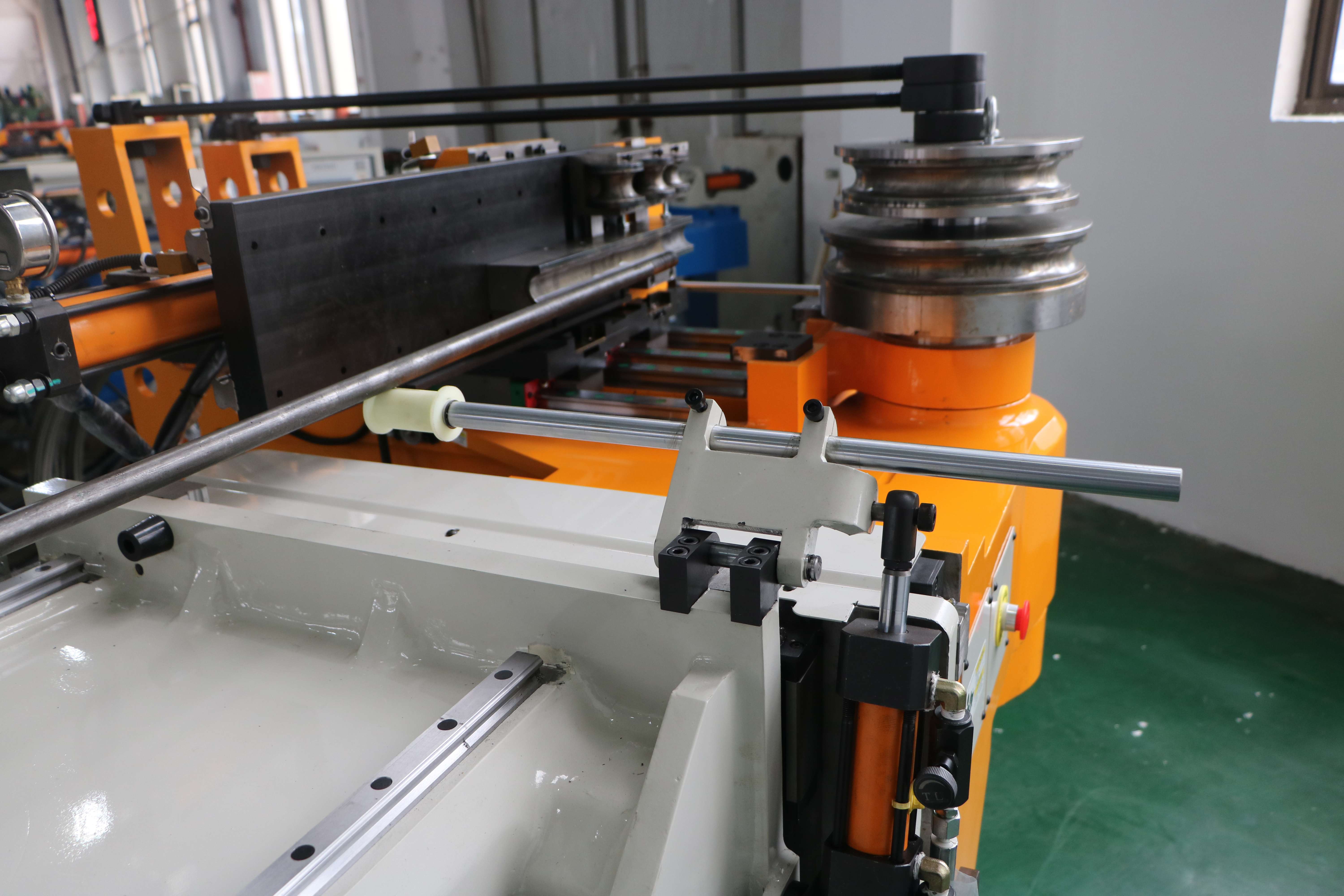

- Automatic tube feeding and rotation
Technical Specifications
| Specification | DW-65CNC-4A-2S |
|---|---|
| Max Tube O.D. Bending Capacity | Φ65 mm |
| Max Tube Wall Thickness | 3.0 mm |
| CLR Range (Customizable) | 300 mm |
| Max Bending Angle | 190° |
| Max Mandrel Working Distance | 2600 mm |
| Tube Feeding Speed | Max 1000 mm/s |
| Tube Rotation Speed | Max 200°/s |
| Tube Bending Speed | Max 85°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Overall Weight | ~2600 kg |
| Machine Dimensions (LxWxH) | 5100 x 1100 x 900 mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 4-axis full servo CNC control system
- 2-stack bending dies for multi-radius operations
- High-precision ±0.1 repeatability on all axes
- 65mm max tube diameter capacity
- Touchscreen HMI interface
- Automatic tube feeding and rotation
- Energy-efficient servo motor system
- Heavy-duty construction for industrial use
Applications
- Automotive exhaust systems
- HVAC ducting
- Furniture manufacturing
- Fitness equipment
- Agricultural machinery
- Construction scaffolding
