Pipe Processing Equipment

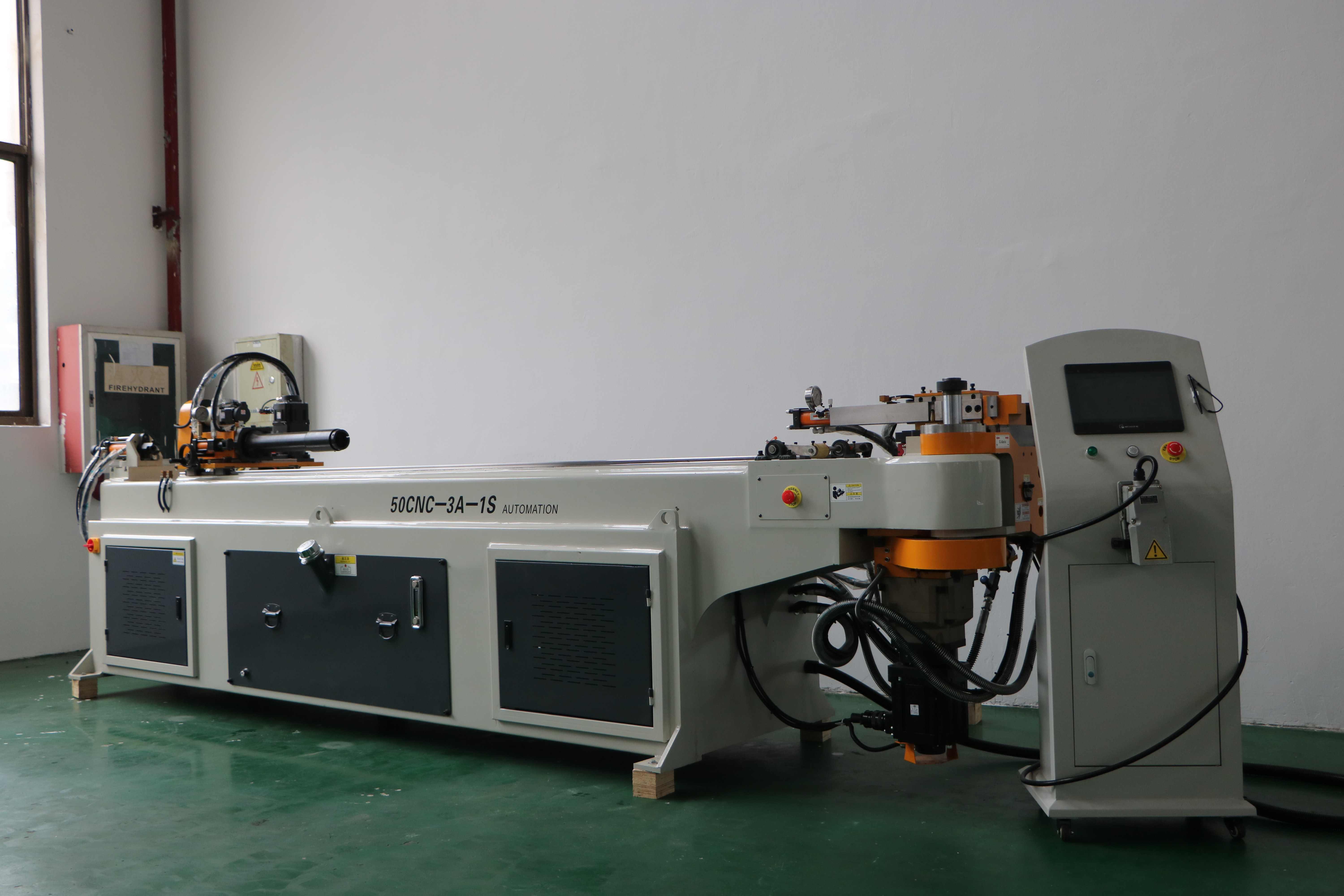

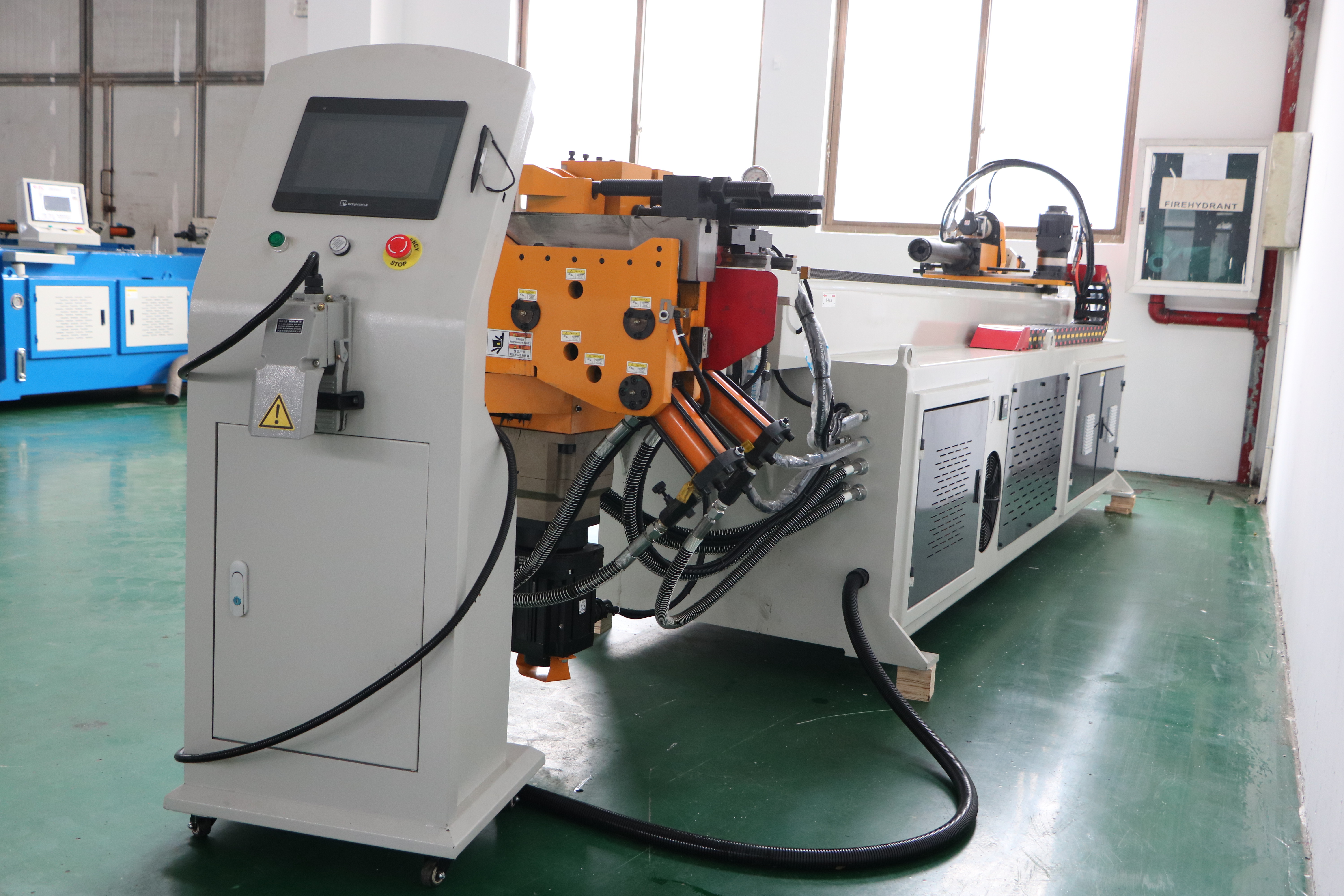

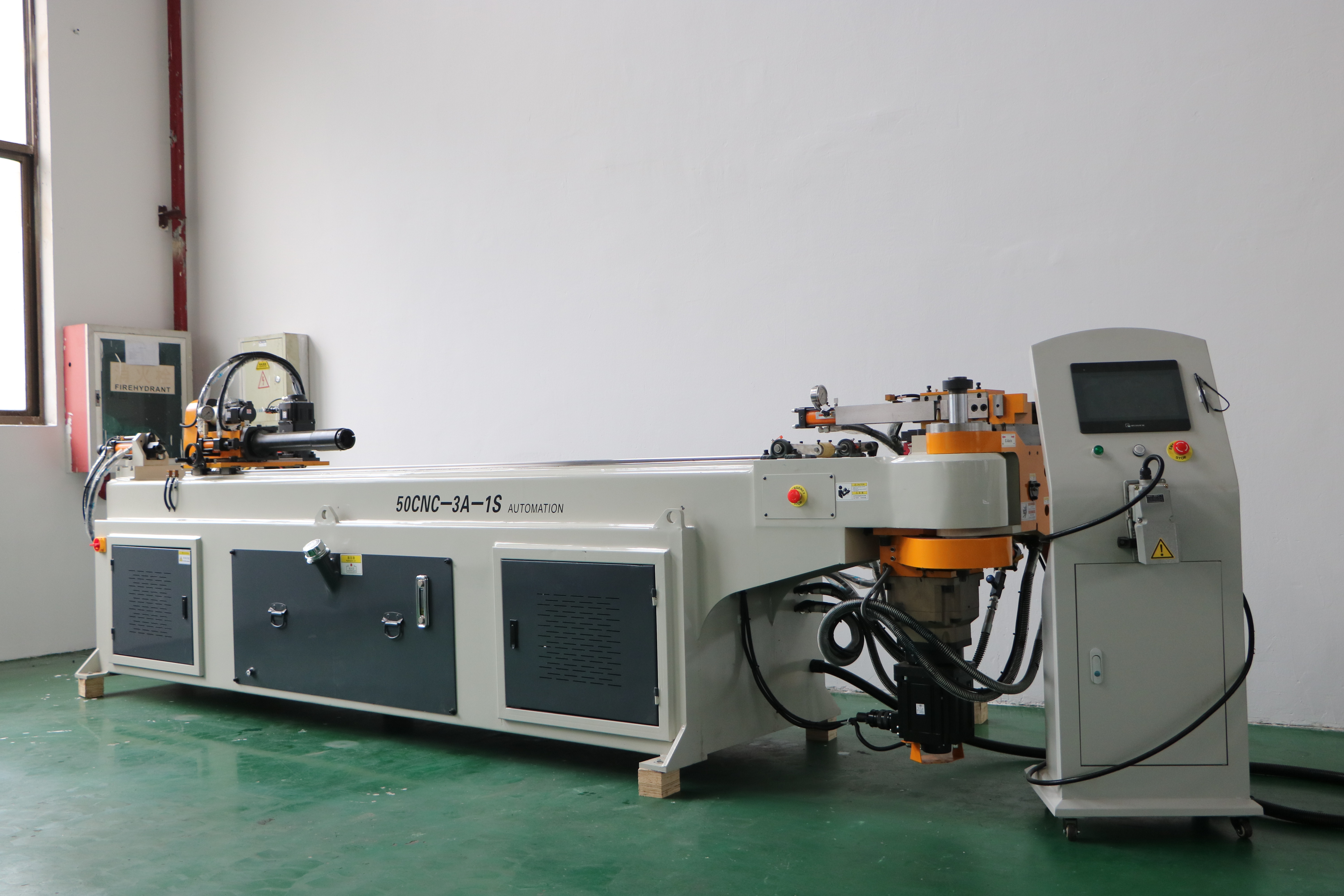

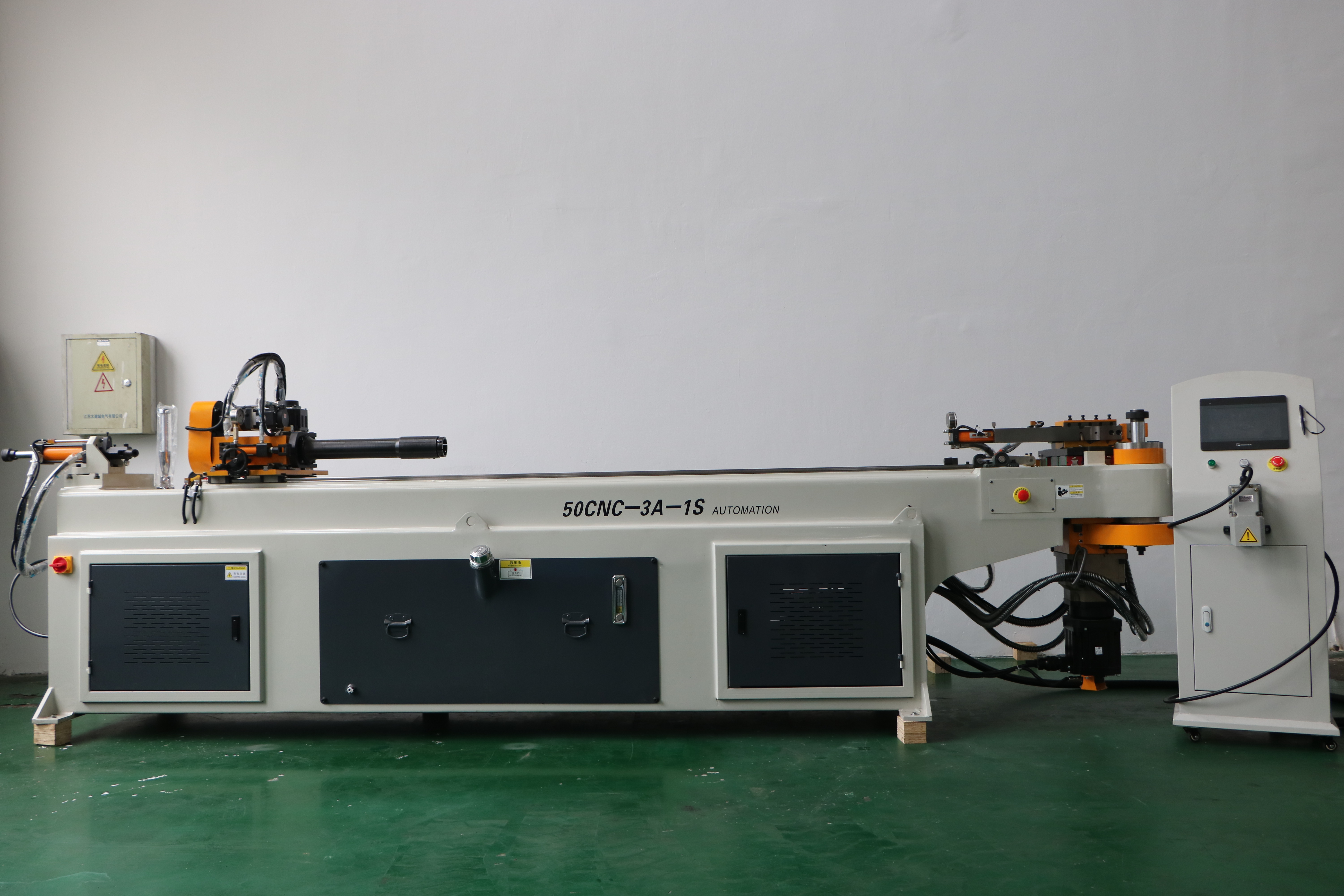

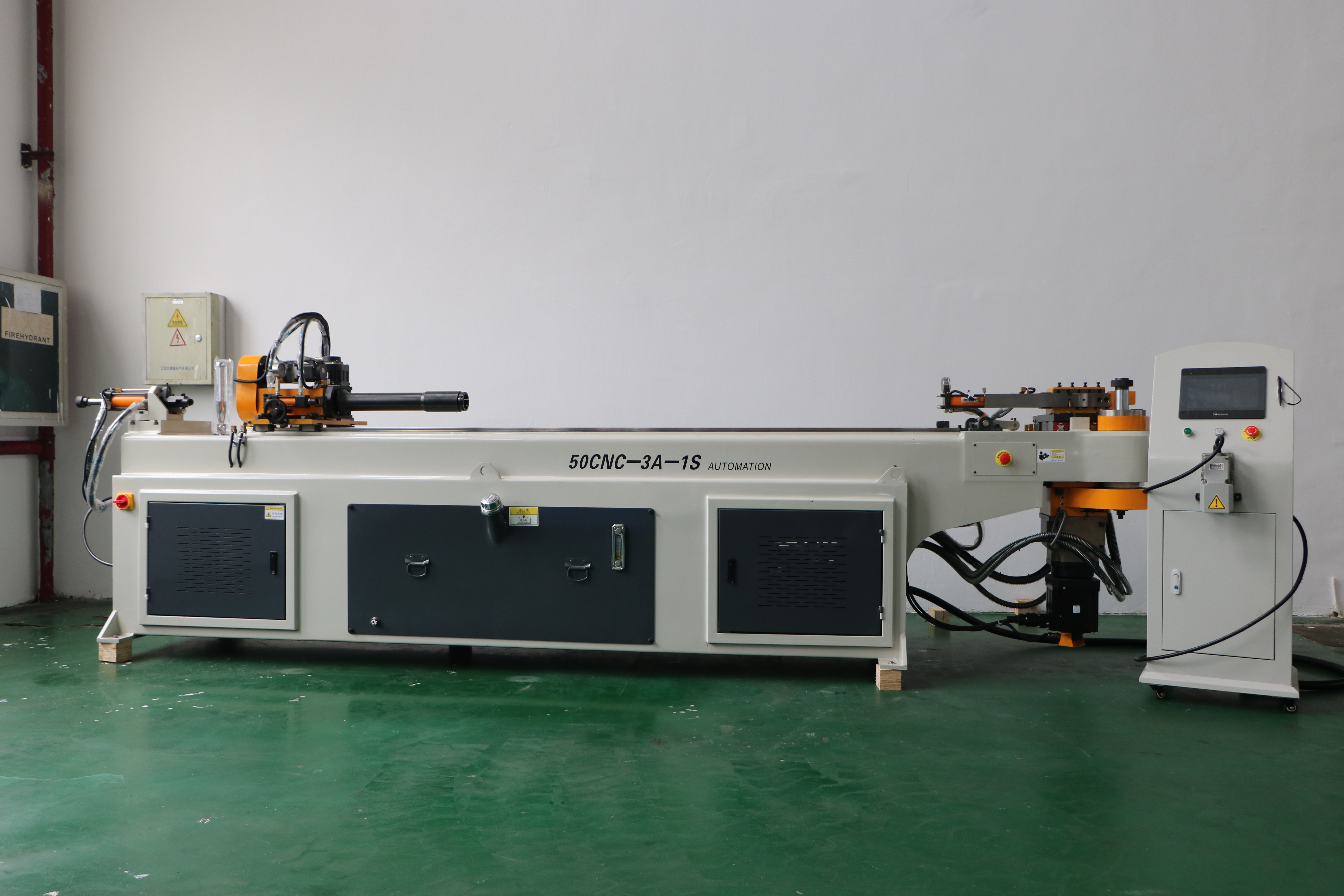

DW-50CNC-3A-1S
3-Axis CNC Pipe Bending Machine (50mm)
3-Axis Full Servo CNC Pipe Bender (50mm)
Full servo 3-axis CNC pipe bender with 50mm capacity, 2600mm mandrel working distance, and high-precision ±0.1 repeatability.
3-Axis CNC
Servo Motor
±0.1 Precision
50mm Capacity
Key Features
- 3-axis full servo motor drive system
- High-precision ±0.1 repeatability on all axes
- 2600mm extended mandrel working distance
- Touchscreen HMI with intuitive interface
- Suitable for 50mm diameter pipes up to 3mm wall thickness
- Fast processing: 1000mm/s feeding, 200°/s rotation, 85°/s bending
Technical Specifications
| Specification | DW-50CNC-3A-1S |
|---|---|
| Max Tube O.D. | 50mm |
| Max Wall Thickness | 3.0mm |
| CLR Range | 250mm (Customizable) |
| Max Bending Angle | 190° |
| Mandrel Working Distance | 2600mm |
| Tube Feeding Speed | Max 1000mm/s |
| Tube Rotation Speed | Max 200°/s |
| Tube Bending Speed | Max 85°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Machine Weight | ~2500kg |
| Dimensions (LxWxH) | 4200x1200x900mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 3-axis full servo motor drive system
- High-precision ±0.1 repeatability on all axes
- 2600mm extended mandrel working distance
- Touchscreen HMI with intuitive interface
- Suitable for 50mm diameter pipes up to 3mm wall thickness
- Fast processing: 1000mm/s feeding, 200°/s rotation, 85°/s bending
- Compact design with separate control cabinet
- Ideal for medium-sized pipe applications
Applications
- Furniture Manufacturing
- Fitness Equipment
- Automotive Parts
- HVAC Systems
- Agricultural Machinery
- General Industrial
Need Custom Configuration?
We offer OEM/ODM services to customize machines according to your specific requirements.
Contact Us
Interested in DW-50CNC-3A-1S?
Contact our sales team for pricing, lead time, and customization options.
