Pipe Processing Equipment
DW-38NCB

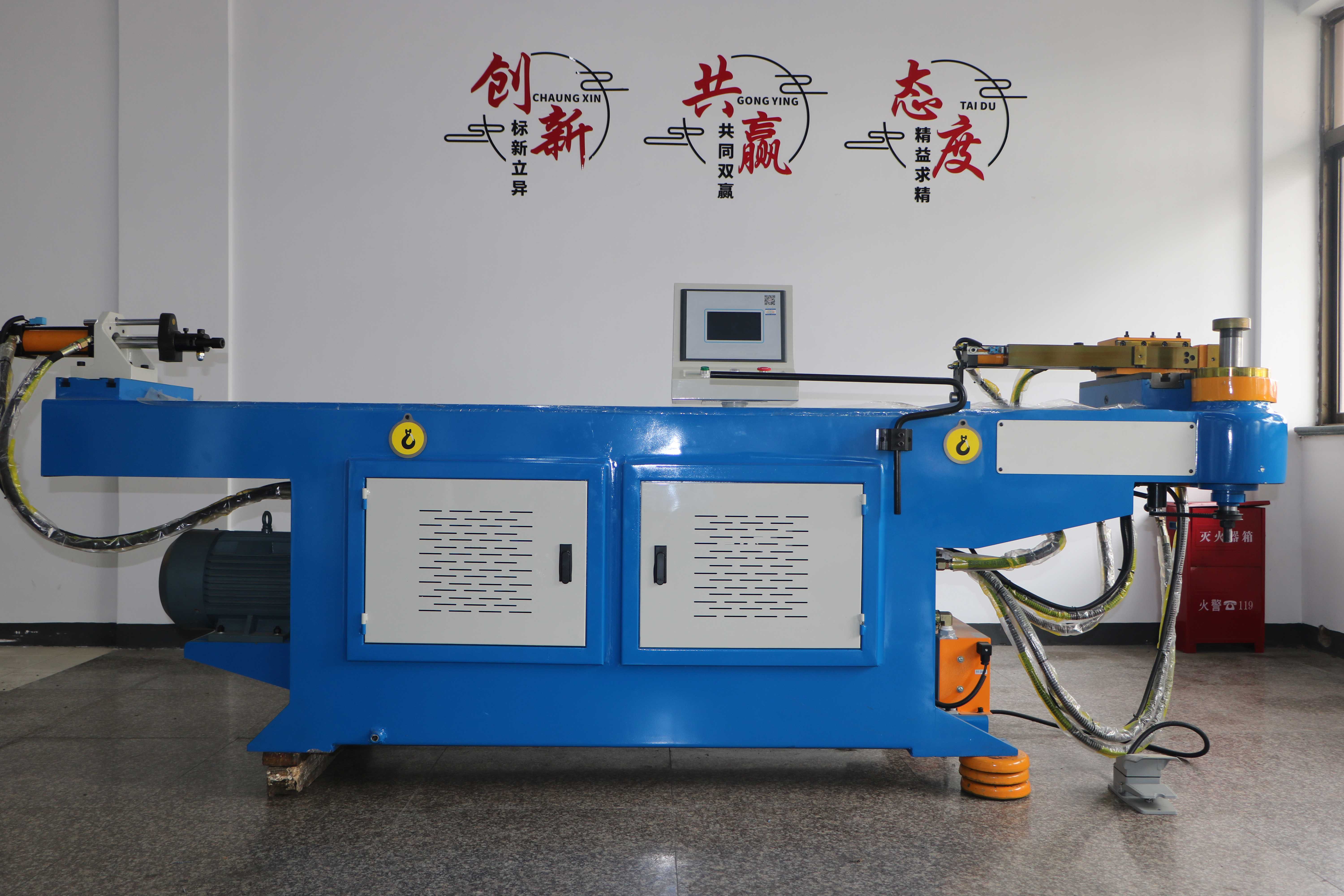

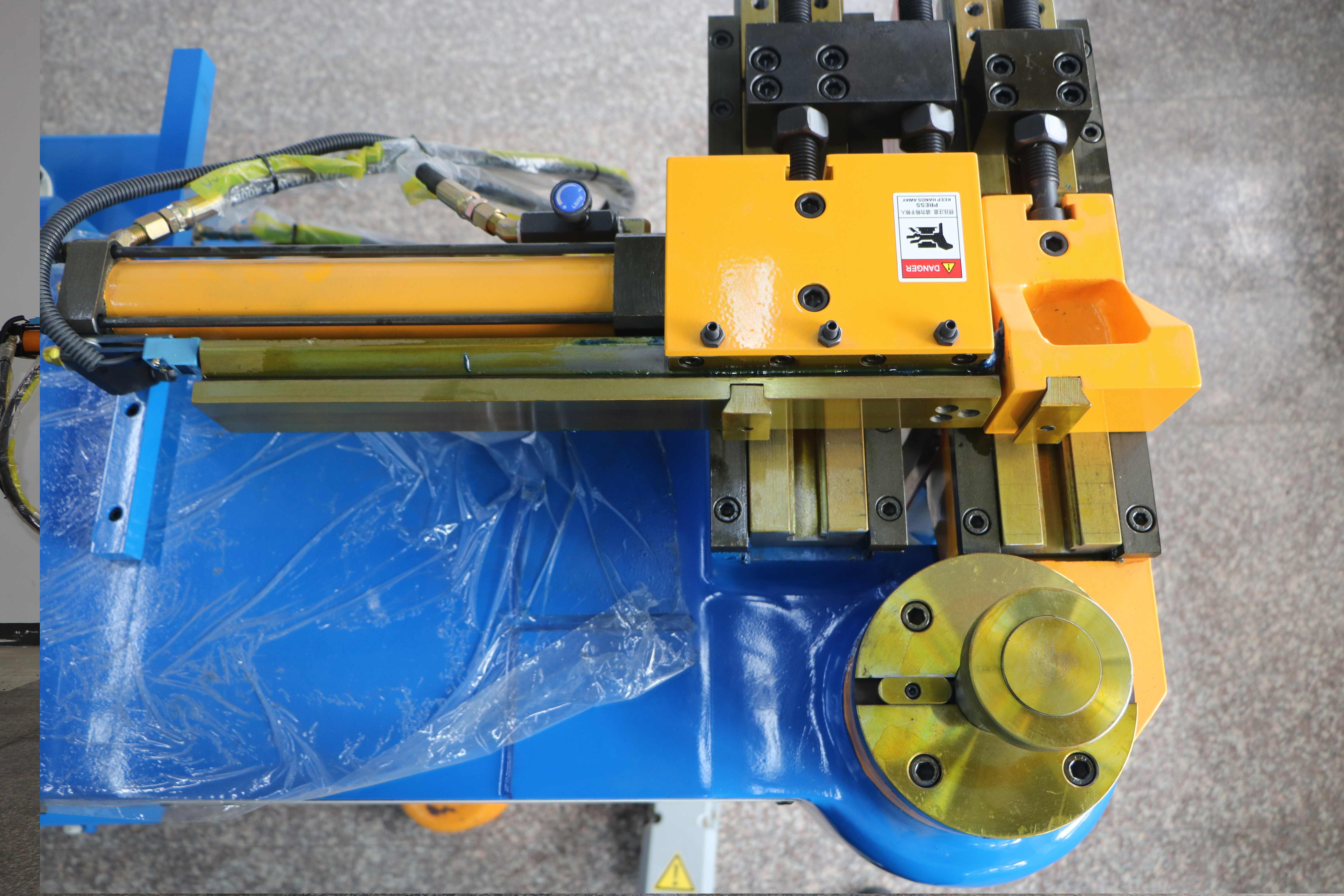

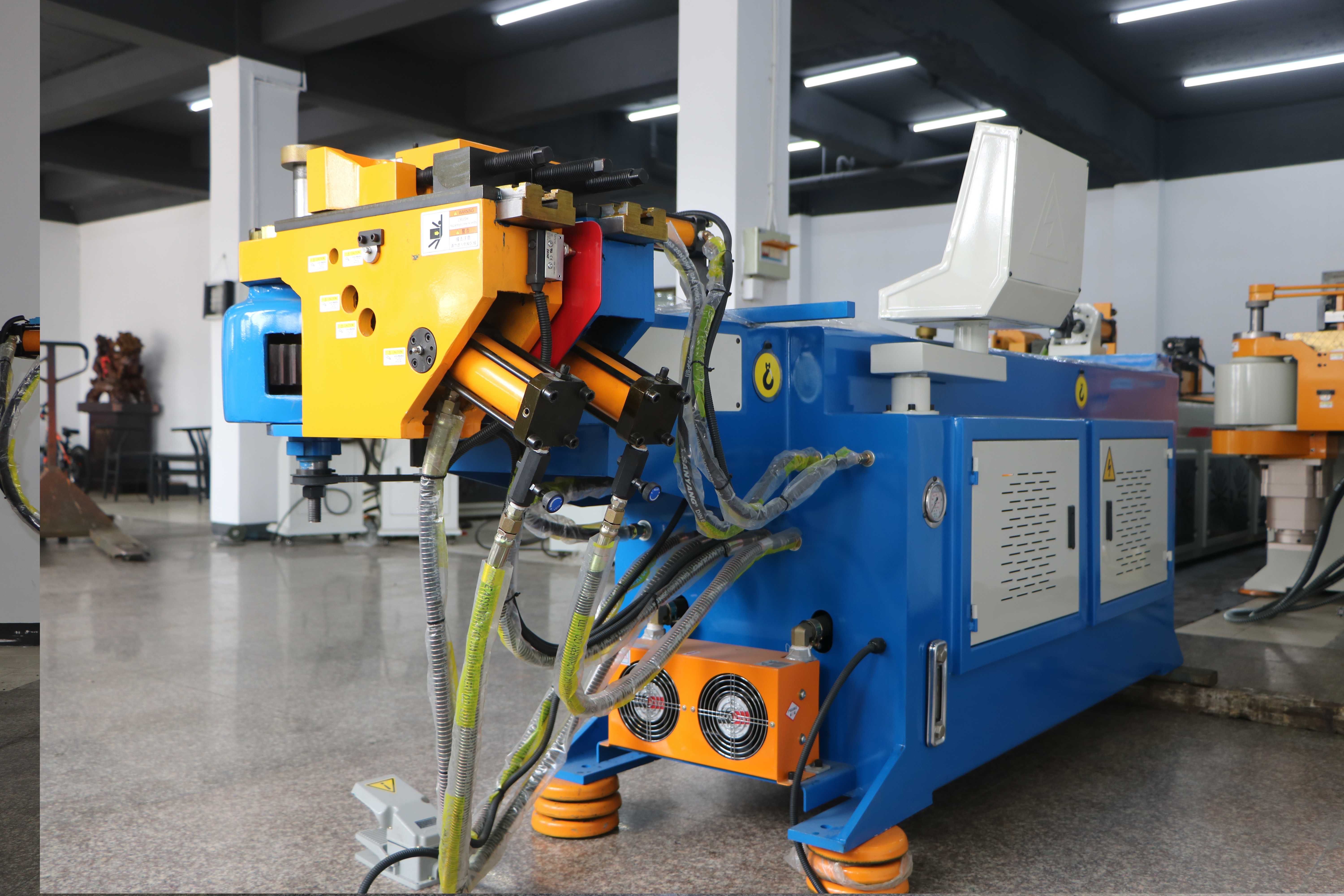

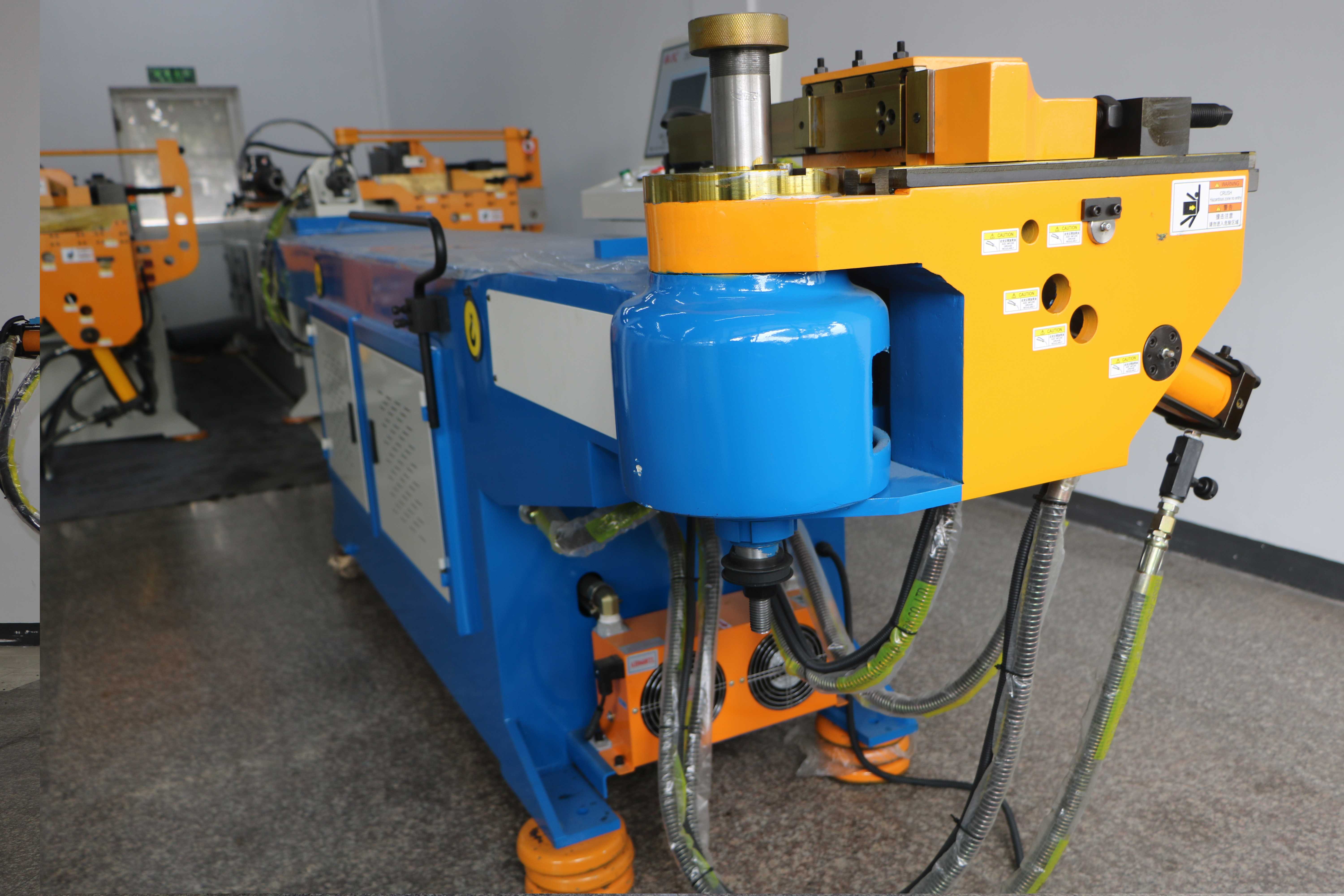

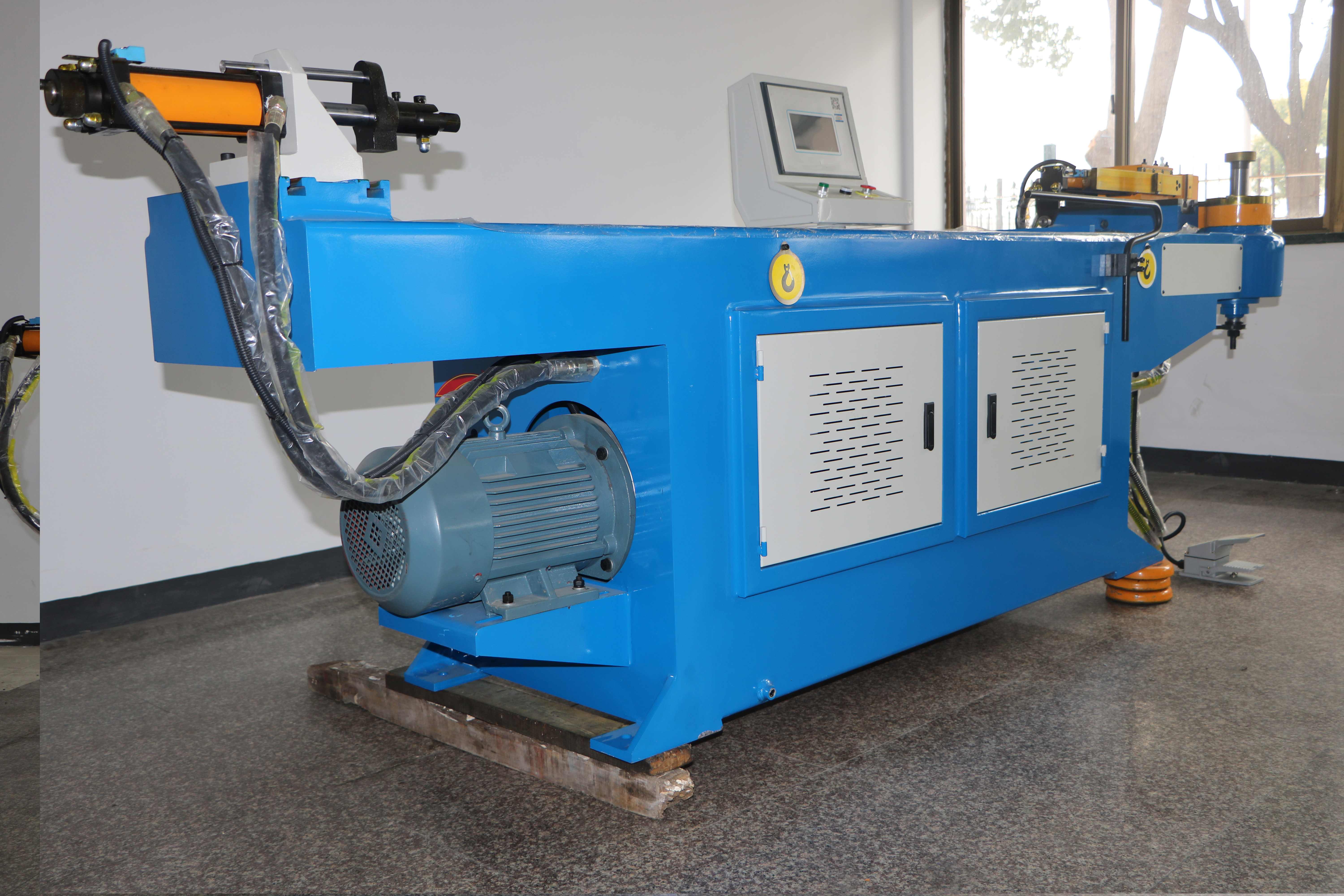

Hydraulic NC Pipe Bending Machine (38mm)
Hydraulic Pipe Bending Machine (38mm)
Cost-effective hydraulic pipe bending machine with NC control, ideal for small to medium production volumes. Features simple operation, reliable hydraulic system, and excellent value for money. Optional PLC and HMI control system available.
Hydraulic
NC Control
Cost Effective
Compact
Key Features
- Hydraulic drive system for reliable performance
- NC control with optional PLC + HMI upgrade
- Wide range of bending radius (38-250mm)
- Up to 16 bends per pipe capability
- Compact and lightweight design (820kg)
- Cost-effective entry-level solution
Technical Specifications
| Specification | DW-38NCB |
|---|---|
| Max. Tube O.D. x Wall Thickness | 38 x 2.0 mm |
| Range of CLR (Bending Radius) | 38 - 250 mm |
| Range of Bending Angle | 0 - 190° |
| Max. System Pressure | 12 MPa |
| Number of Pipe Bending (Max Bends) | 16 |
| Machine Dimensions (LxWxH) | 2680 x 650 x 1200 mm |
| Machine Weight | Approx. 820 kg |
| Control System | PLC + HMI (Optional) |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- Hydraulic drive system for reliable performance
- NC control with optional PLC + HMI upgrade
- Wide range of bending radius (38-250mm)
- Up to 16 bends per pipe capability
- Compact and lightweight design (820kg)
- Cost-effective entry-level solution
- Easy operation and maintenance
- Foot pedal control option
Applications
- Furniture manufacturing
- Exercise equipment
- Simple automotive parts
- Handrails and fencing
- Agricultural machinery
- General fabrication
