Pipe Processing Equipment
DW-168CNC

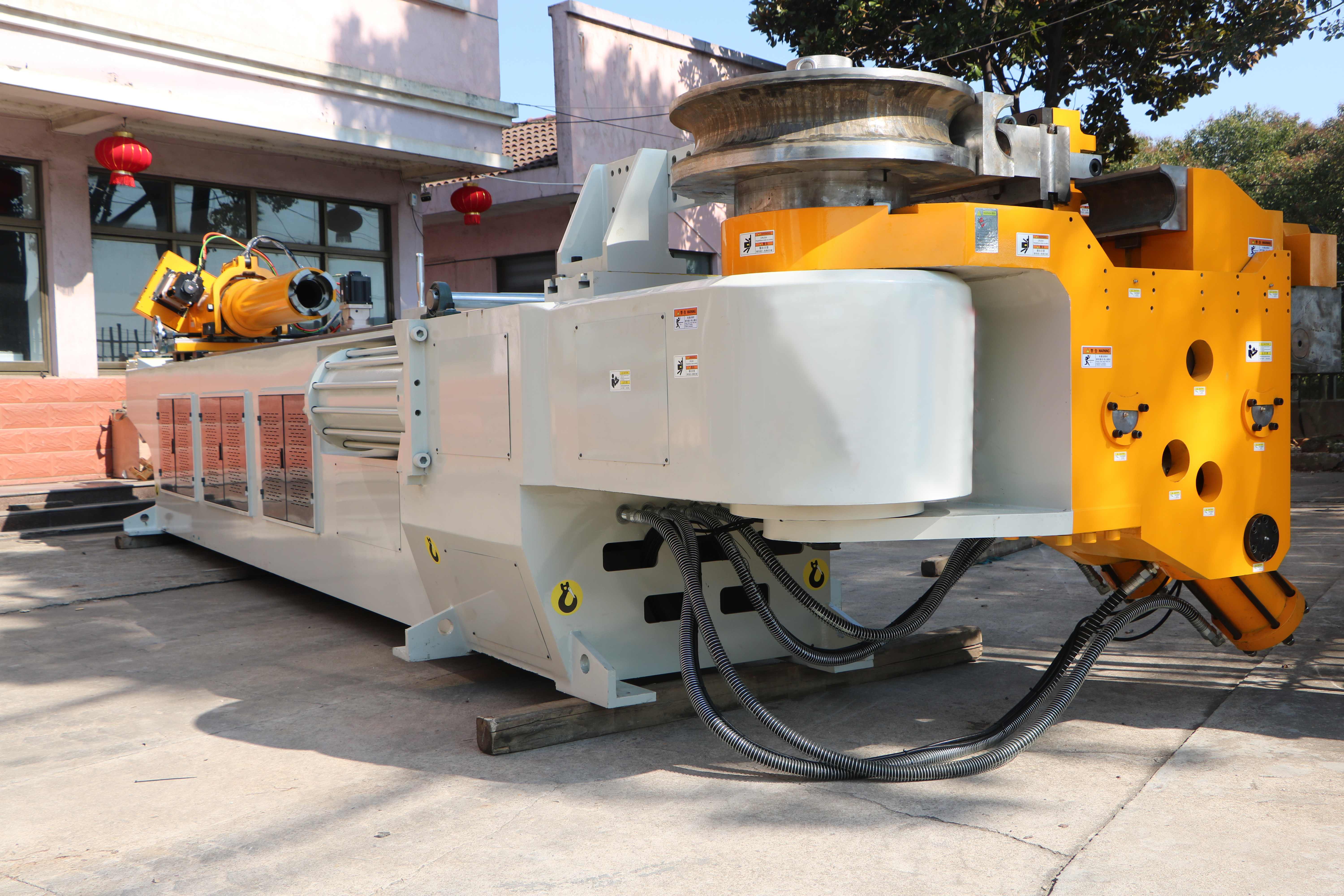

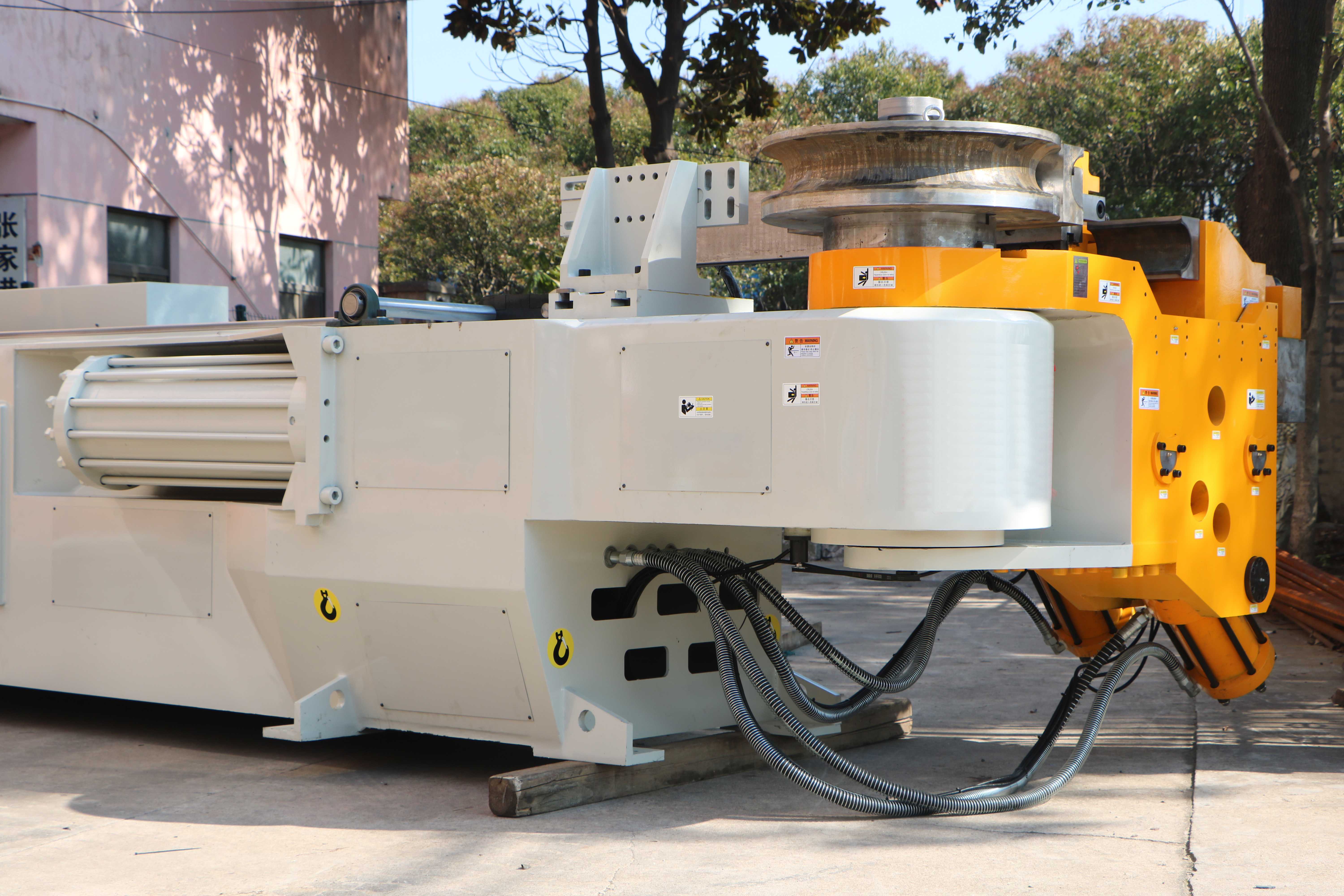

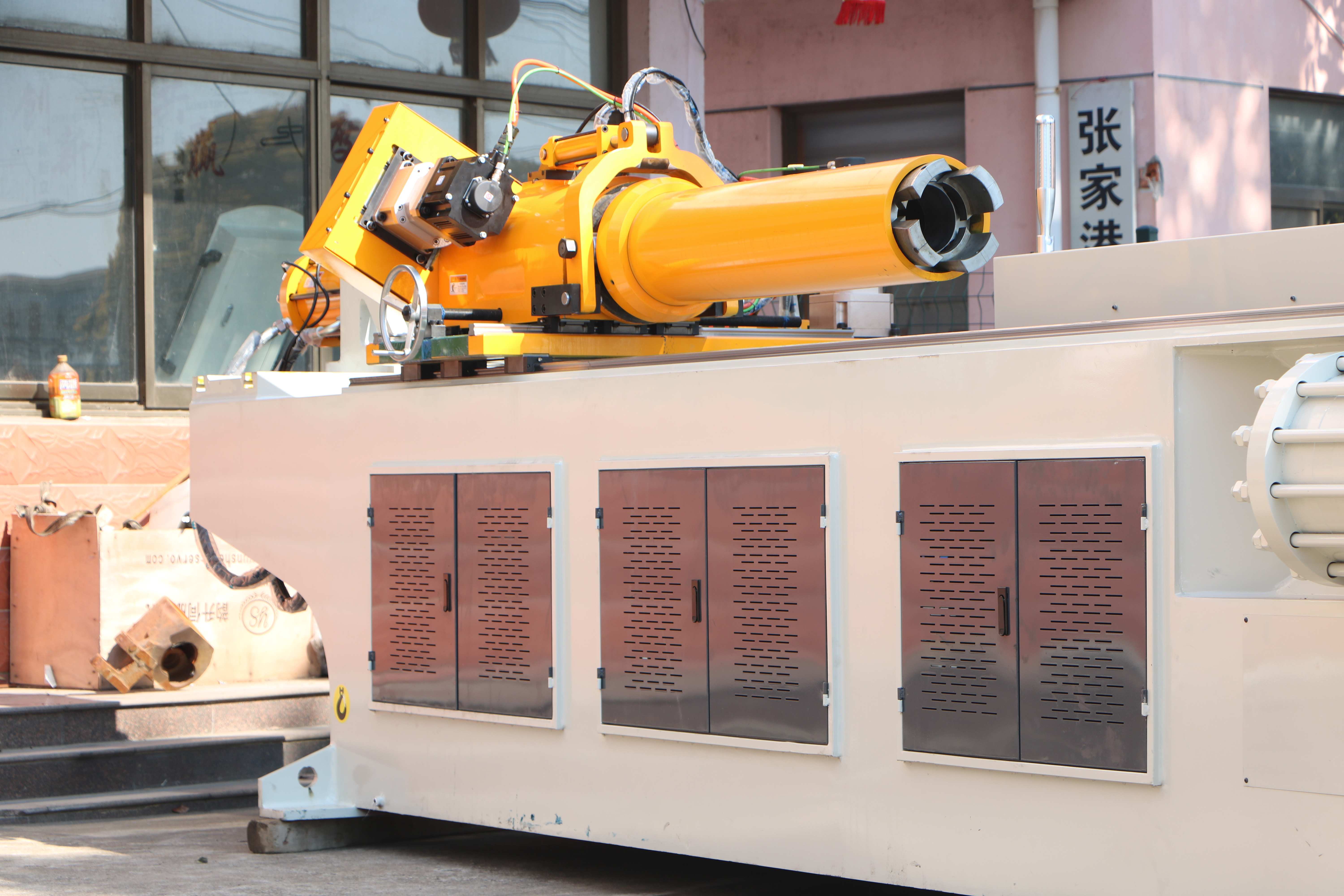

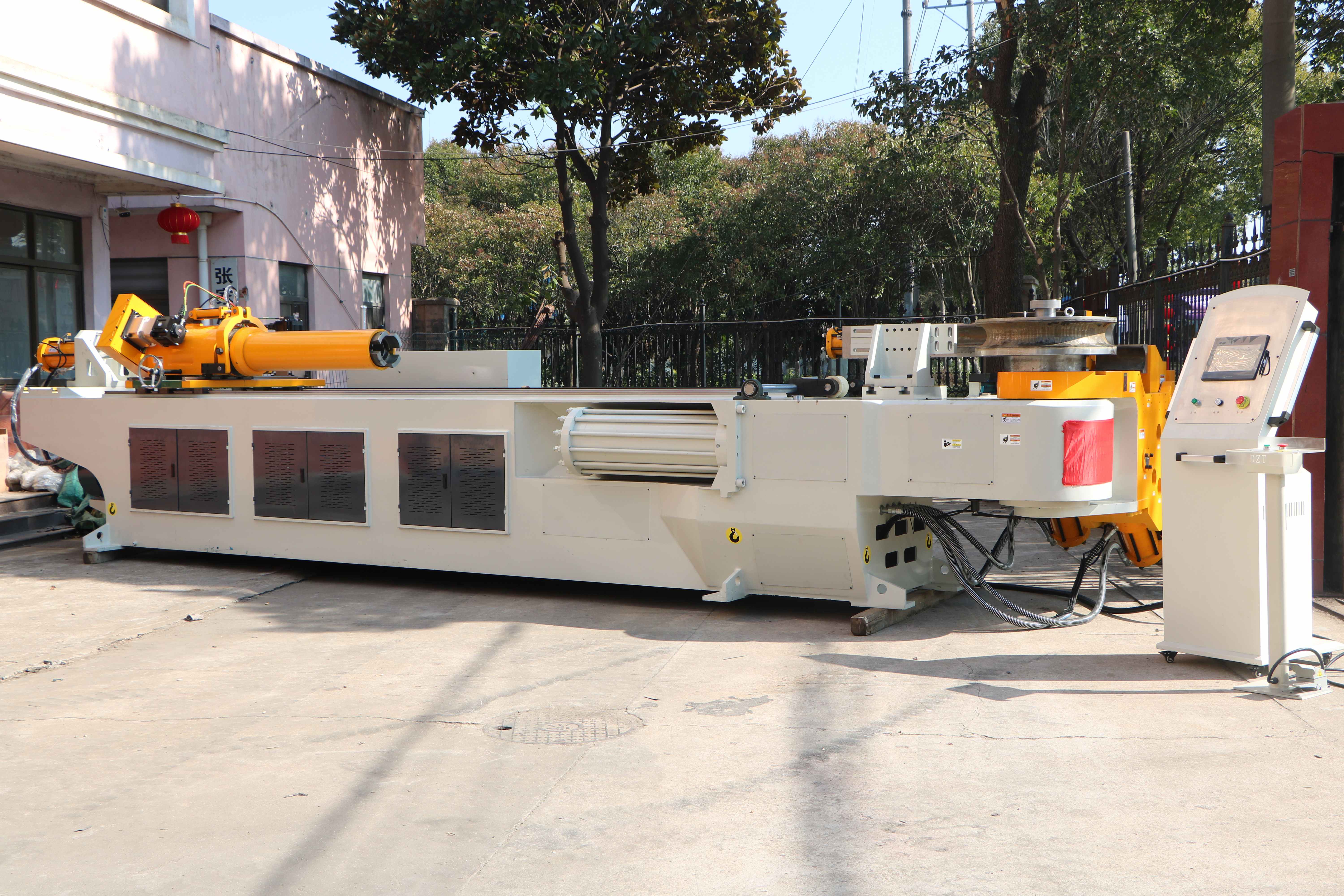

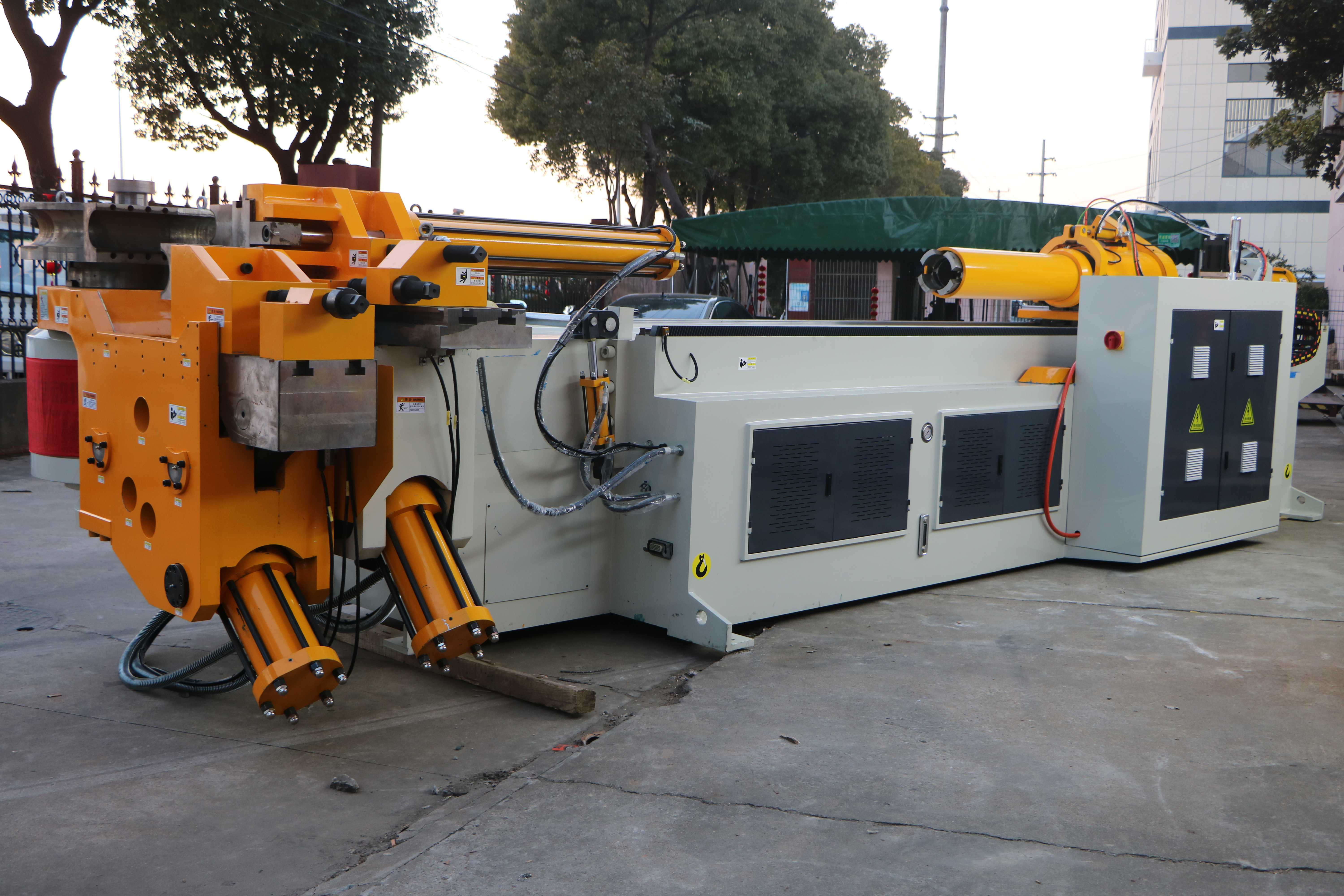

Heavy Duty CNC Pipe Bending Machine (168mm)
Industrial CNC Pipe Bender (168mm, 16mm Wall)
Industrial-grade heavy-duty CNC pipe bender with 168mm capacity, 16mm wall thickness, 8000mm mandrel distance for offshore, shipbuilding, and power plants.
CNC Control
168mm Capacity
16mm Wall
8000mm Distance
Key Features
- Industrial-grade heavy-duty frame for 168mm large diameter pipes
- Full servo CNC control with high-precision repeatability
- Extended 8000mm mandrel working distance for long pipe processing
- Hydraulic bending system with servo feeding
- Independent control cabinet with HMI touch screen
- Multi-stack bending dies available for various radii
Technical Specifications
| Specification | DW-168CNC |
|---|---|
| Max. Tube O.D. Bending Capacity | 168mm |
| Max. Tube Wall Thickness | 16mm |
| CLR Range (Customizable) | 600mm |
| Max. Bending Angle | 190° |
| Max. Mandrel Working Distance | 8000mm |
| Tube Feeding Speed | Max 600mm/s |
| Tube Rotation Speed | Max 120°/s |
| Tube Bending Speed | Max 25°/s |
| Repeatability (All Axes) | ±0.1 |
| Overall Weight | Approx. 15000kg |
| Machine Dimensions (LxWxH) | 9500x1800x1800mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- Industrial-grade heavy-duty frame for 168mm large diameter pipes
- Full servo CNC control with high-precision repeatability
- Extended 8000mm mandrel working distance for long pipe processing
- Hydraulic bending system with servo feeding
- Independent control cabinet with HMI touch screen
- Multi-stack bending dies available for various radii
- Automatic lubrication system for extended die life
- CE certified for international standards
Applications
- Offshore Oil & Gas Pipelines
- Shipbuilding Industry
- Power Plant Construction
- Heavy Industrial Machinery
- Large HVAC Systems
- Mining Equipment
