Pipe Processing Equipment

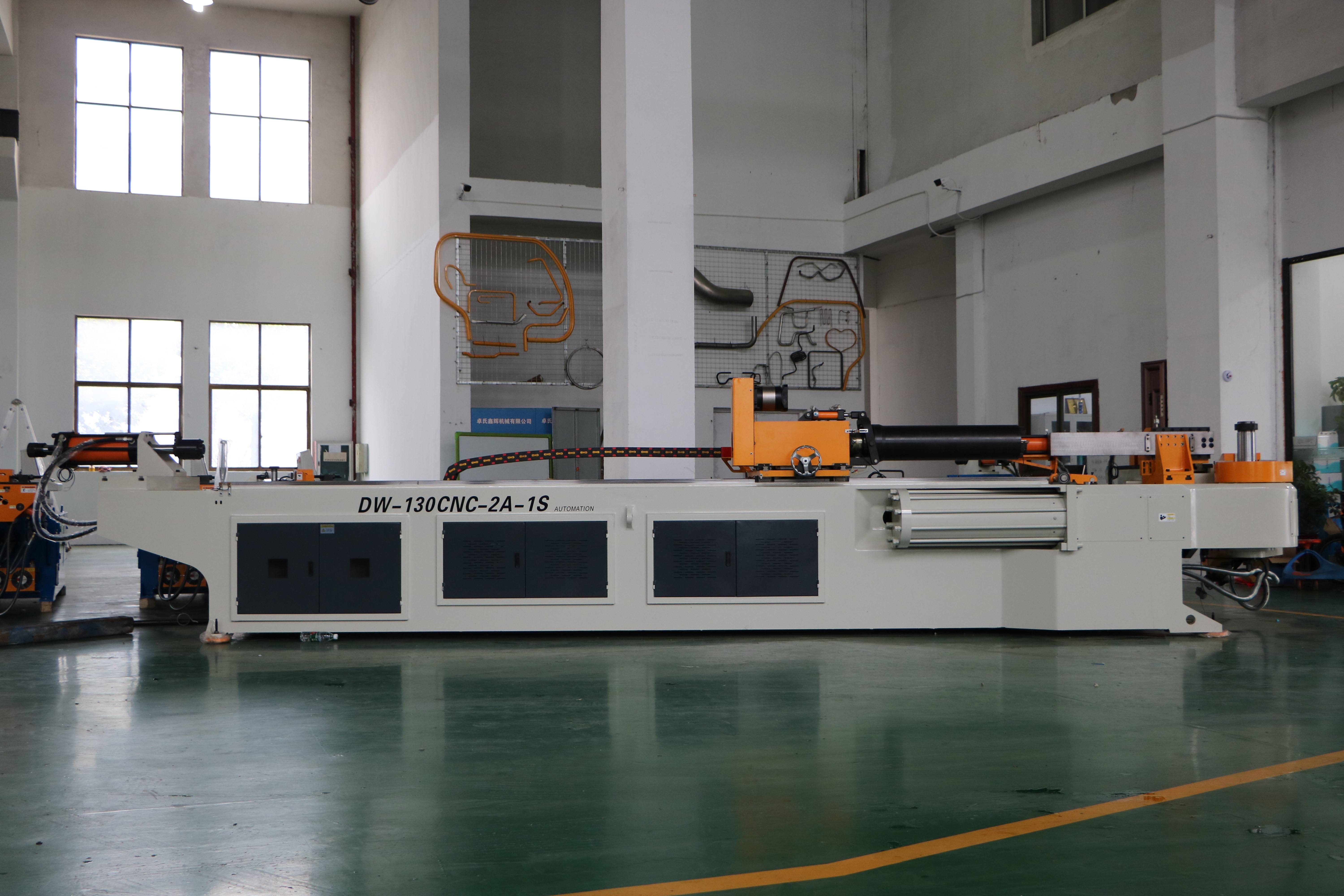

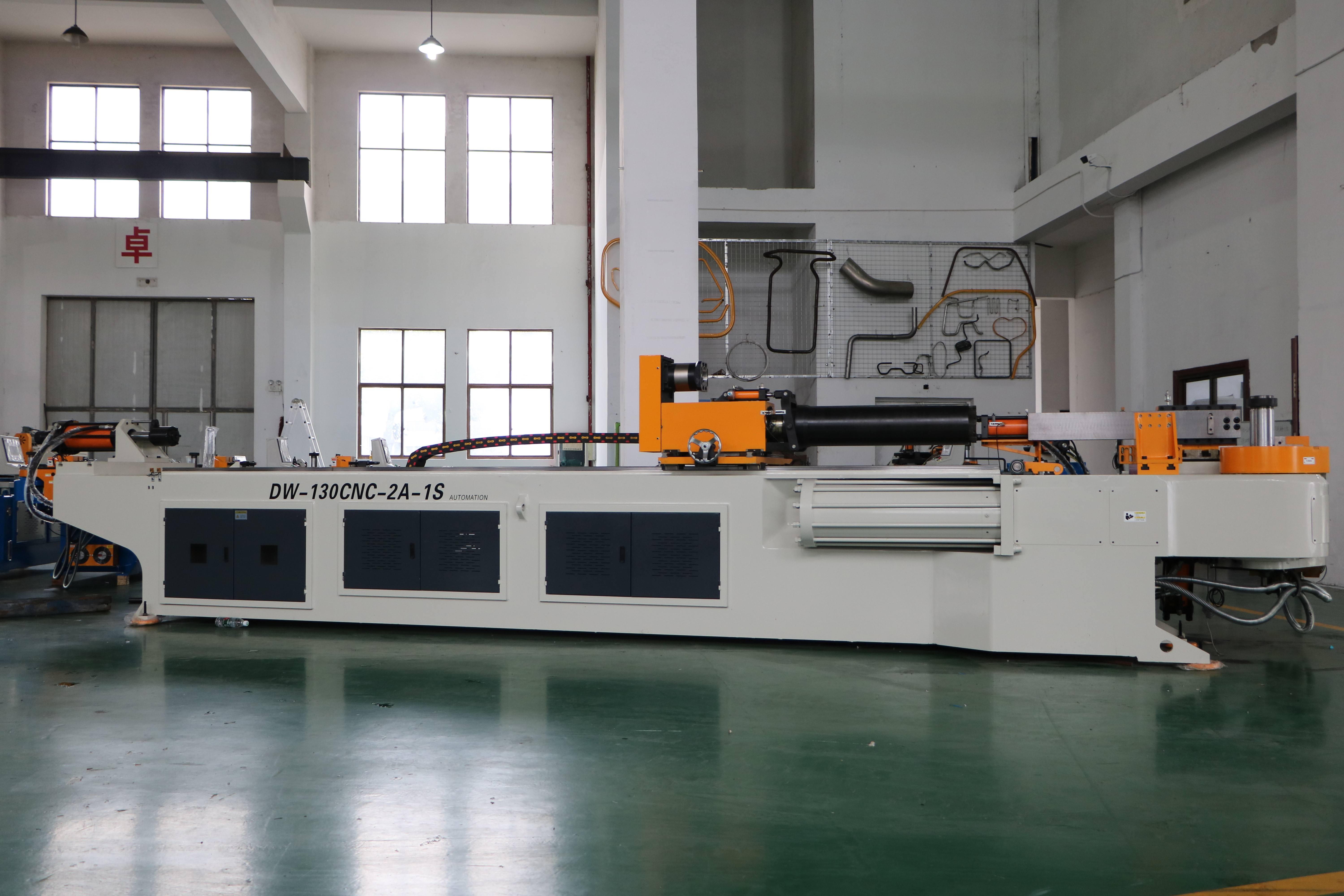

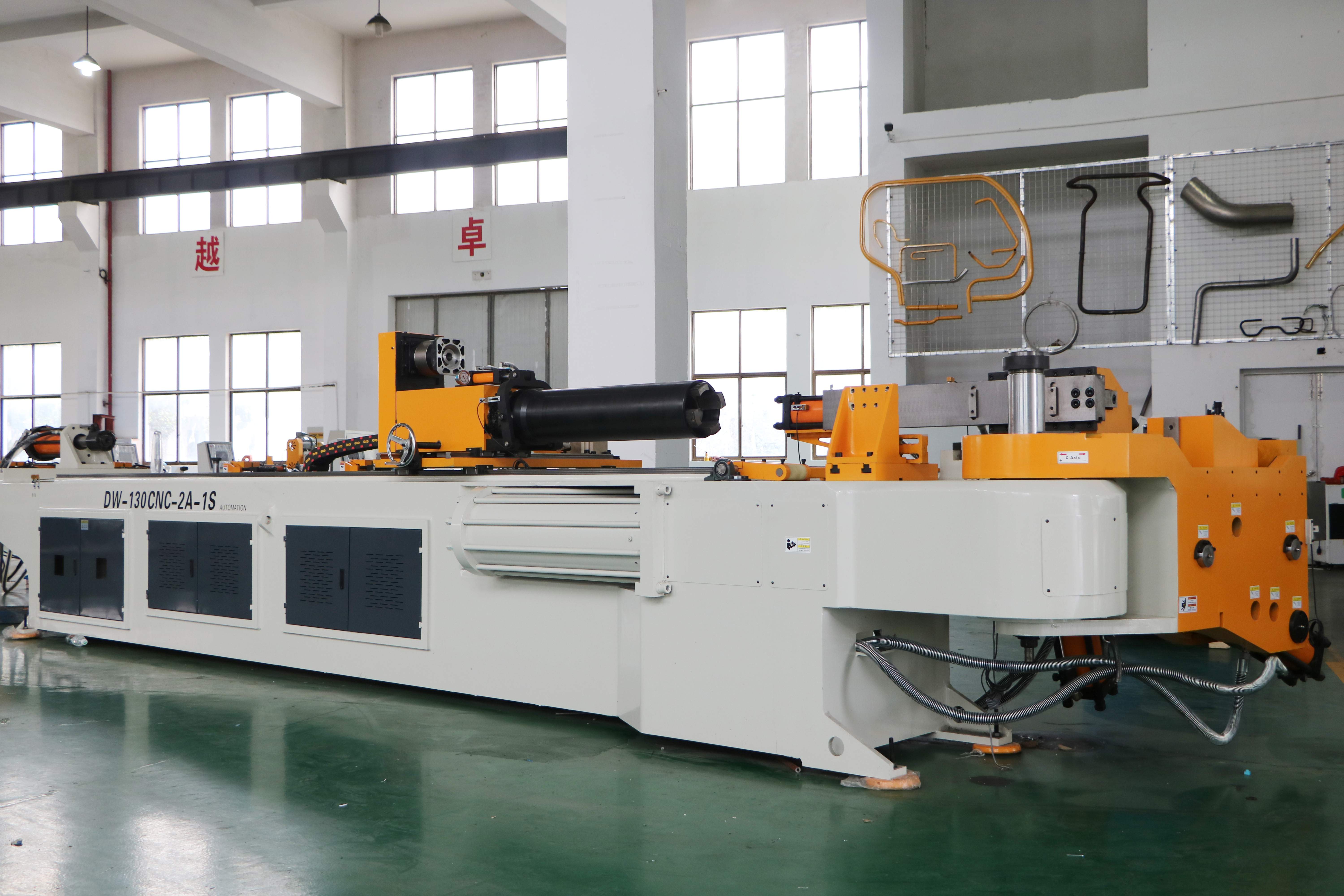

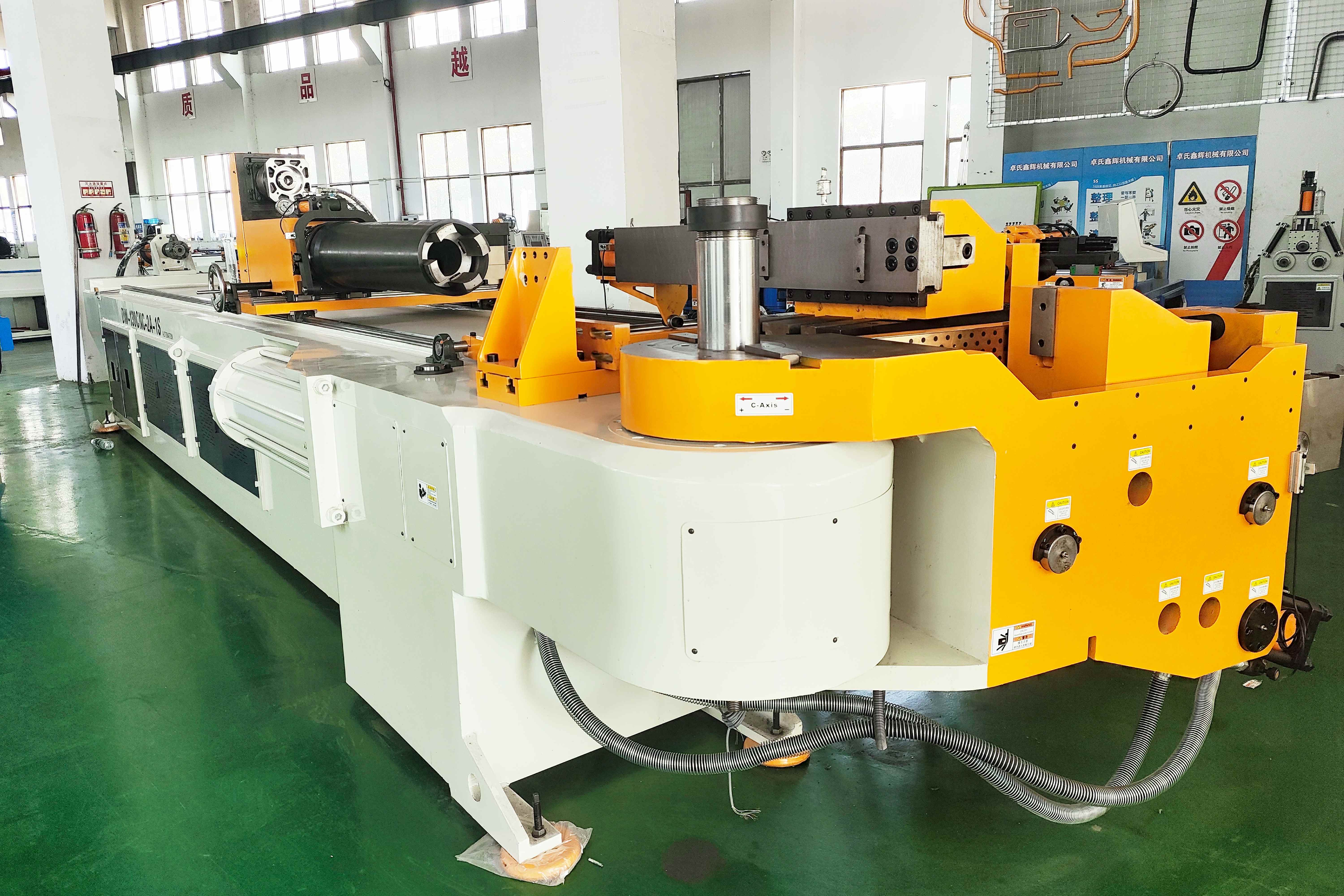

DW-130CNC-2A-1S
2-Axis CNC Heavy Duty Pipe Bender (130mm)
2-Axis CNC Pipe Bender (130mm, 12mm Wall)
Industrial-grade 2-axis CNC pipe bender with 130mm capacity, 12mm wall thickness, 6900mm mandrel distance for oil & gas and shipbuilding.
2-Axis CNC
130mm Capacity
12mm Wall
6900mm Distance
Key Features
- 2-axis full servo CNC control system
- 130mm max tube diameter capacity
- 12mm wall thickness capability
- 6900mm extended mandrel working distance
- Hydraulic bending with servo feeding
- High-speed 800mm/s tube feeding
Technical Specifications
| Specification | DW-130CNC-2A-1S |
|---|---|
| Max Tube O.D. Bending Capacity | 130mm |
| Max Tube Wall Thickness | 12mm |
| CLR Range (Customizable) | 500mm |
| Max Bending Angle | 190° |
| Max Mandrel Working Distance | 6900mm |
| Tube Feeding Speed | Max 800mm/s |
| Tube Rotation Speed | Max 160°/s |
| Tube Bending Speed | Max 30°/s |
| Feeding/Rotation/Bending Precision | ±0.1 |
| Overall Weight | ~9600kg |
| Machine Dimensions | 7630×1300×1560mm |
* Specifications are subject to change without prior notice due to continuous R&D improvements.
Features
- 2-axis full servo CNC control system
- 130mm max tube diameter capacity
- 12mm wall thickness capability
- 6900mm extended mandrel working distance
- Hydraulic bending with servo feeding
- High-speed 800mm/s tube feeding
- ±0.1 high repeatability precision
- Heavy-duty 9600kg construction
- HMI touch screen interface
- Suitable for oil & gas pipelines
Applications
- Oil & gas pipelines
- Shipbuilding
- Heavy industrial machinery
